5

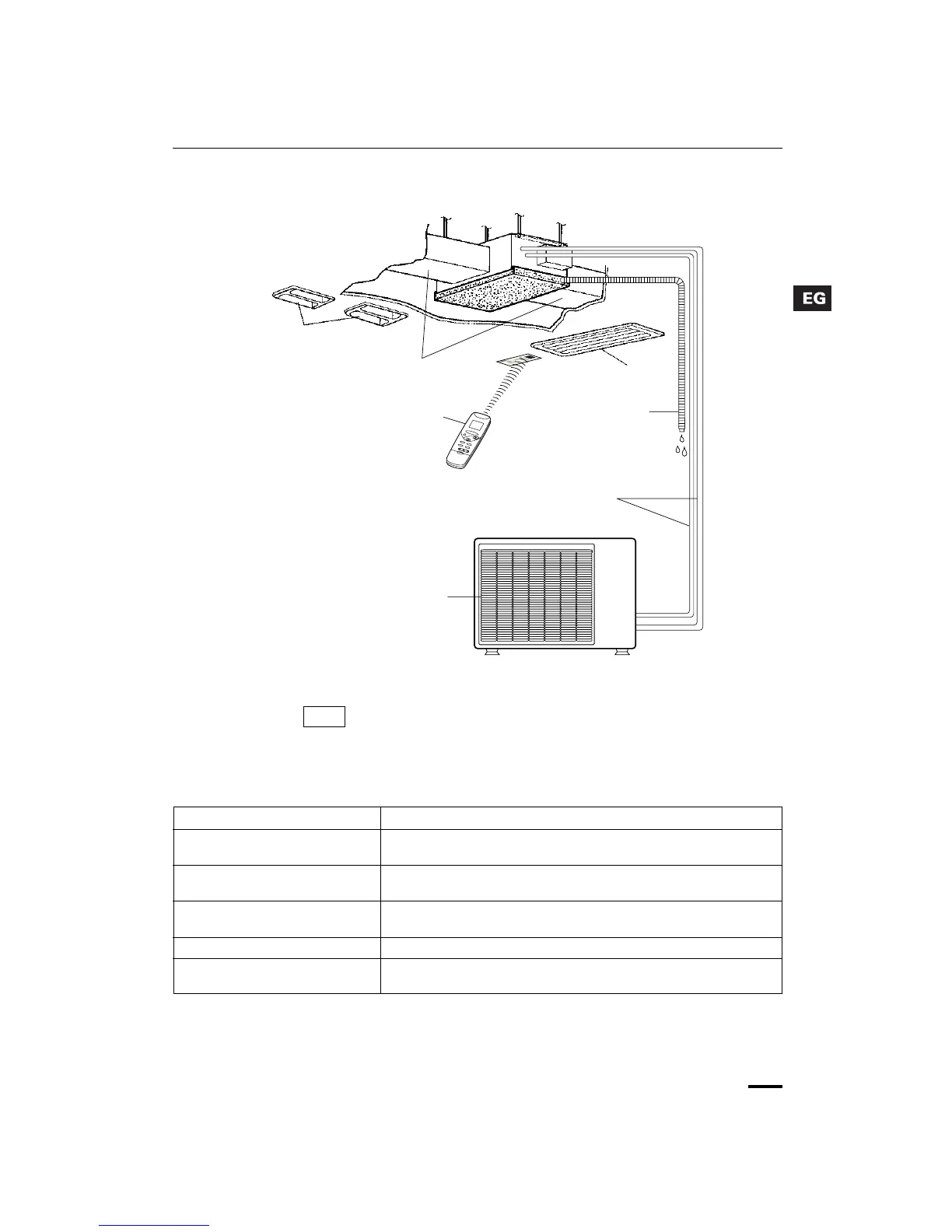

Names of Parts
NOTE
This illustration is based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner which
you have selected.
This air conditioner consists of an indoor unit and an outdoor unit. You
can control the air conditioner with the remote control unit.
Air Intake Grille Air from the room is drawn into this section.
Air Outlet Grilles Conditioned air is blown out of the air conditioner through the air
outlet.
Remote Control Unit The wireless remote control unit controls power ON/OFF, operation
mode selection, temperature, fan speed and timer setting.
Refrigerant Tubes The indoor and outdoor units are connected by copper tubes
through which refrigerant gas flows.
Drain Hose Moisture in the room condenses and drains off through this hose.
Outdoor (Condensing) Unit The outdoor unit contains the compressor, fan motor, heat
exchanger coil, and other electrical components.
Air outlet
grilles
(Field supply)
Remote control unit
Refrigerant tubes
OUTDOOR UNIT
Air outlet
Duct
(Field supply)
Receiver
Drain hose
Air intake grille
(Field supply)
OI-645-05EG
