13

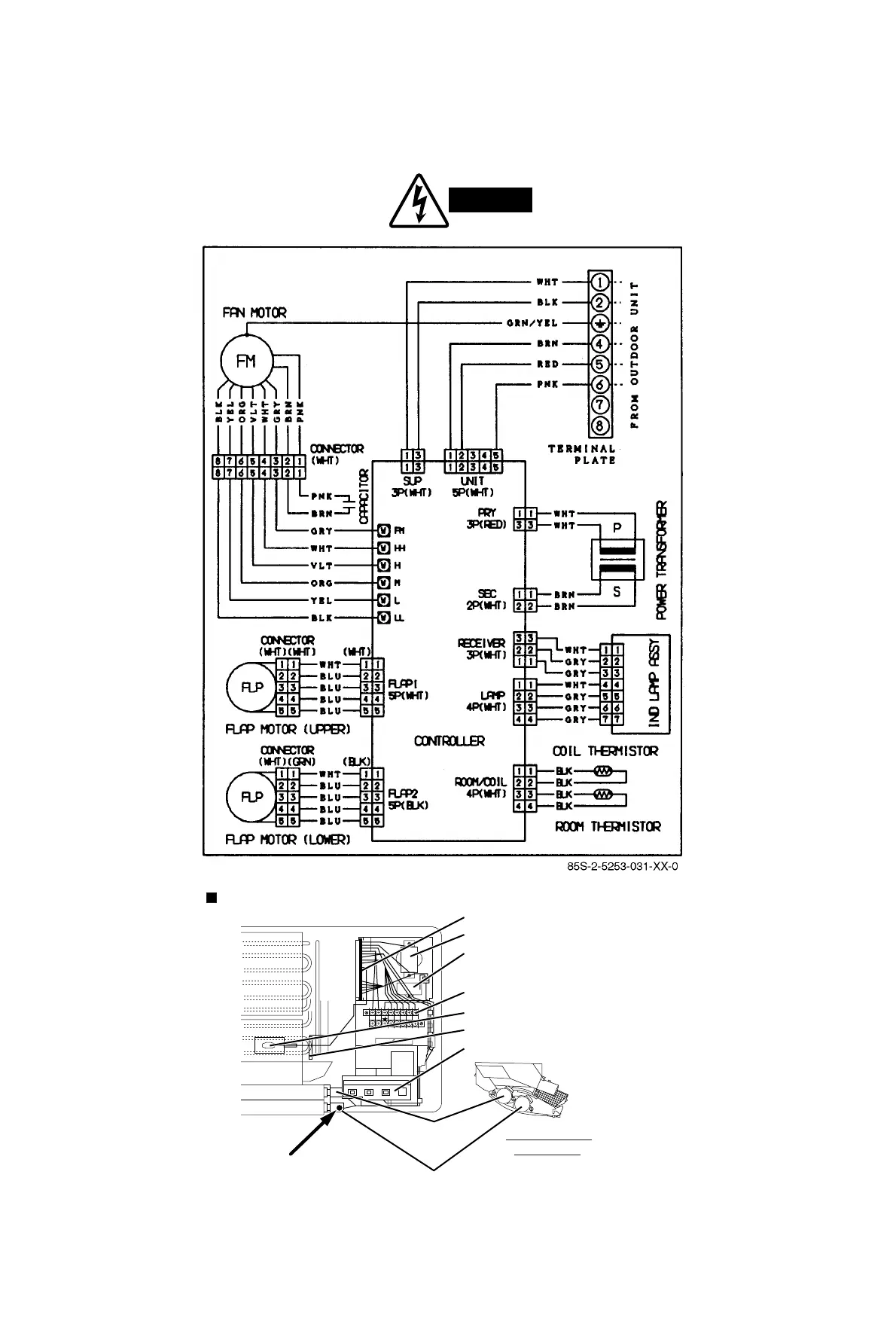

6-2. Electric Wiring Diagrams
To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleaning any electrical parts.
WARNING
Indoor Unit SAPK302A
TRANS
1 2 4 5 678
C
BP
Controller
(
PCB Ass'y
)
Power transformer
Fan motor capacitor
Terminal plate
Room thermistor
Coil thermistor
Indicator lamp Ass'y
Upper flap motor
Lower flap motor*
*GREEN MAKE on
lower flap motor
Grille air outlet
(
Side View
)
Indoor Electrical Compornent Box
