Sanyo SAP–K302A - Troubleshooting - Initial Checks

9. TROUBLESHOOTING
9-1. Check before and after troubleshooting
9-1-1. Check power supply wiring.
●
Check that power supply wires are correctly connected to terminals No.1 and No.2 on the 3P terminal plate
in the outdoor unit.
9-1-2. Check inter-unit wiring.
●
Check that inter-unit wiring is correctly connected to the indoor unit from the outdoor unit.
9-1-3. Check power supply.
●
Check that voltage is in specified range (±10% of the rating).
●
Check that power is being supplied.

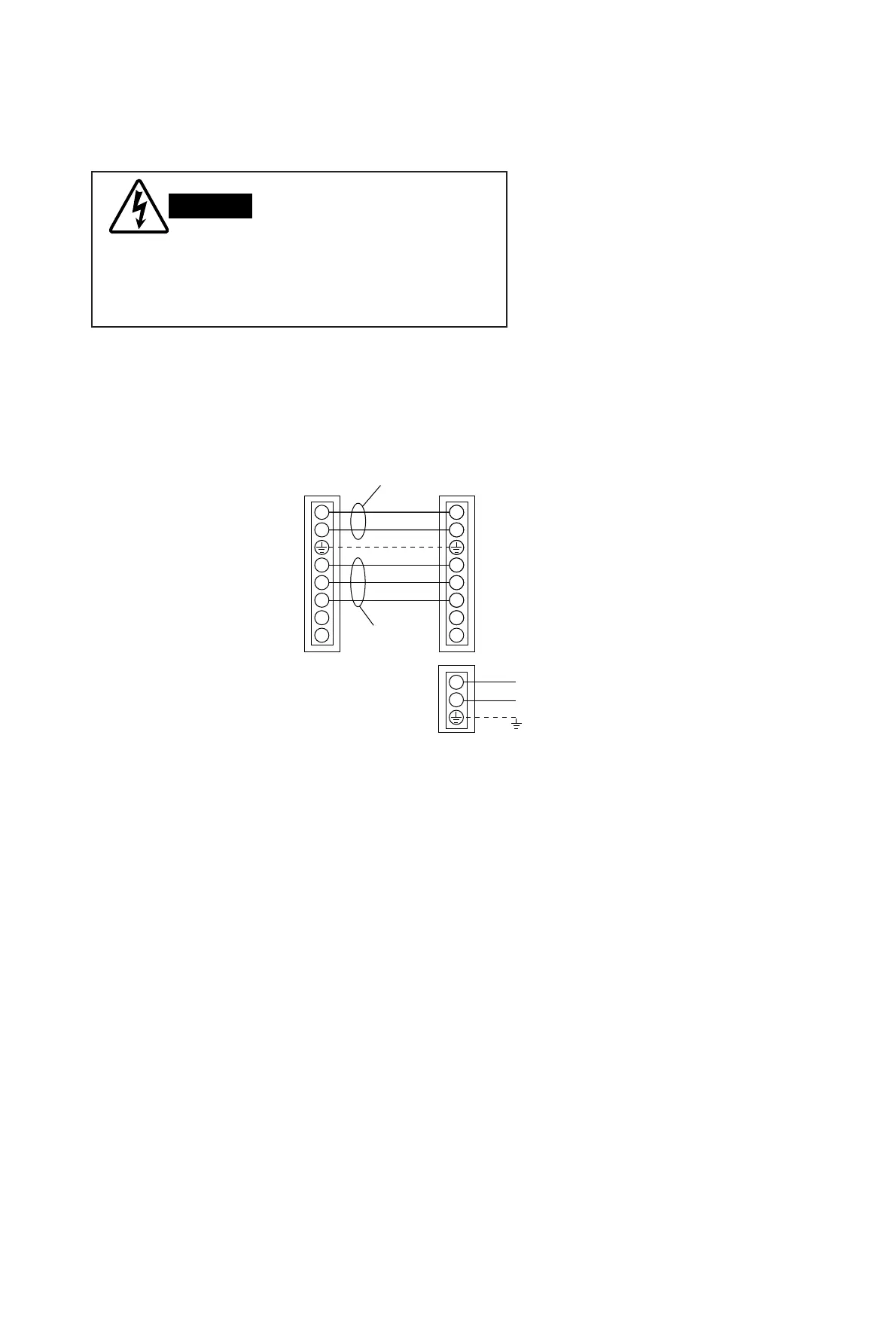

9-1-4. Check lead wires and connectors in indoor and outdoor units.
●
Check that coating of lead wires is not damaged.
●
Check that lead wires and connectors are firmly connected.
●
Check that wiring is correct.
1
2
4
5
6
7
1
2
4
5
6
7
Indoor
unit
Outdoor
unit
Ground
Inter–unit
power wiring
Ground
1
2
4
5
6
7
8 8
Power supply :
Single phase
50Hz 240VAC
1
2
Inter–unit
control wiring
22
WARNING
Hazardous voltage can cause ELECTRIC SHOCK or
DEATH. Disconnect power or turn off circuit breaker
before you start checking or servicing.
