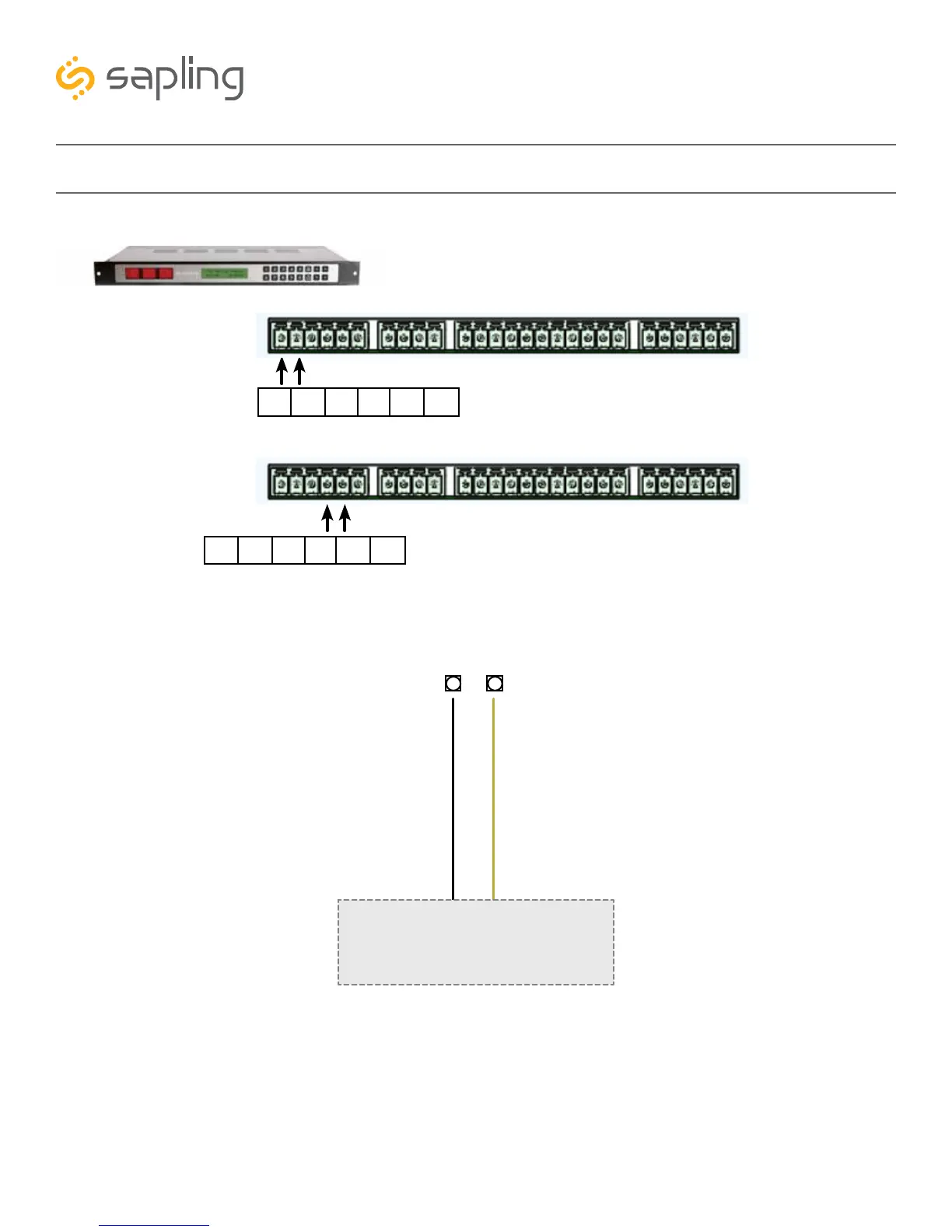

Outputs - Once-a-Day Pulse
* ”or” means one pair of ports or the other. You cannot, for instance, use
port 23 for reset and 27 for power, nor can you use 26 for reset and 24 for
power. You must use the pair 24 AND 23 or the pair 26 AND 27
NTP Series Master Clock
or*
27 26 25 24 23 22
27 26 25 24 23 22
Black
Power
Yellow
Reset
Master Clock Circuit
27
24
26
23
or
Intercom, paging system,
or other device
