Adjusting the Off-Center Loading Error
Off-center loading errors should be adjusted by careful fi ling at appropriately thin
places on the upper guide. To avoid distorting the adjustment, wait a few seconds
after fi ling so that the thin sites can „cool down.“
Caution! After carefully remove the housing, adjust the off-center loading error only at the
thin sites in the back and front using an angled fi le.
Check off-center loading error and adjust the largest error fi rst by carefully fi ling
(see fi gures).
The measured errors (see the section „Off-Center Loading Error“) refer to the system
positions in balance/scale!

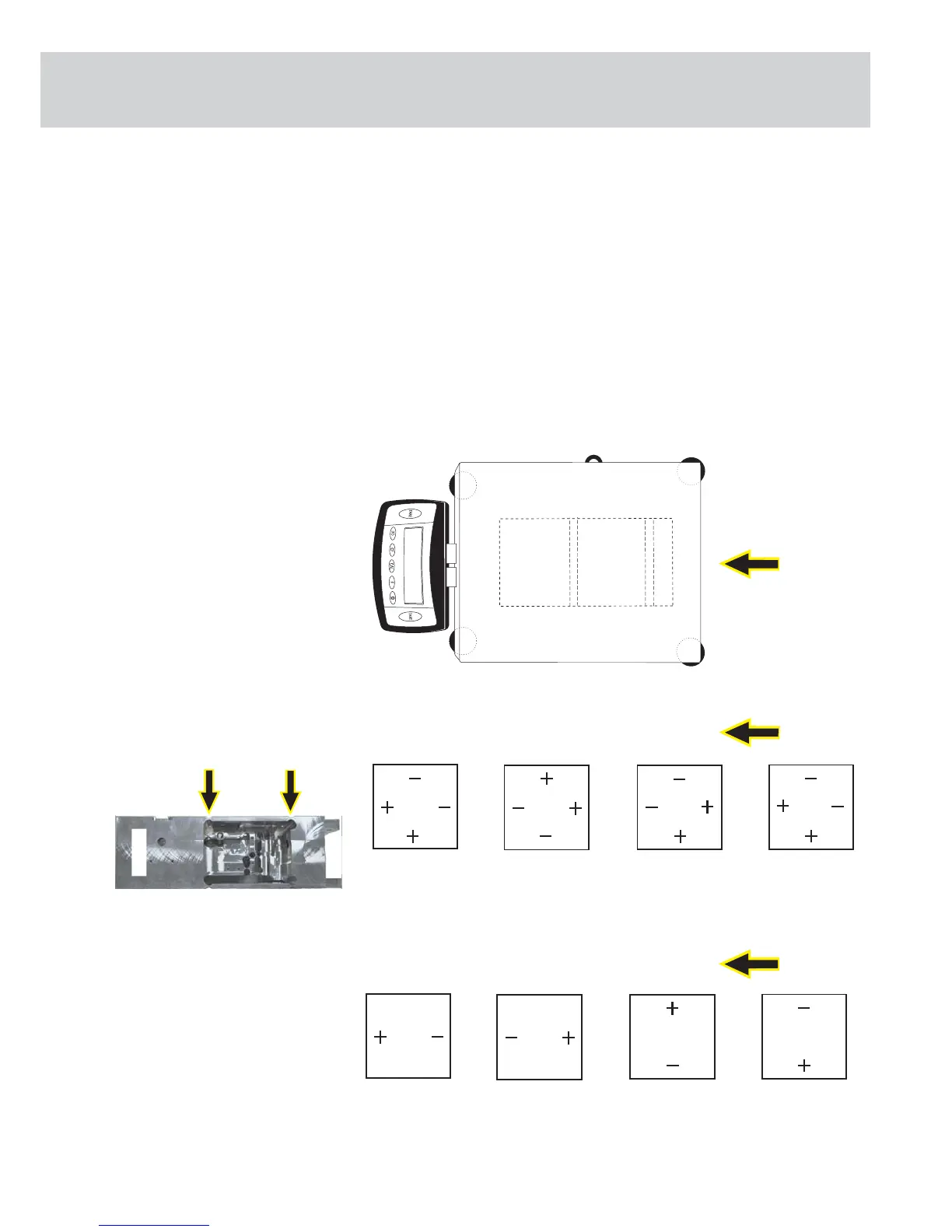

Position of systems in the balance/scale
Off-center loading error:
Filing position: Filing position: Filing position: Filing position:
Back-Left Front-Right Front-Left Back-Right
Off-center loading error:
Filing positions: Filing positions: Filing positions: Filing positions:
Back Front Right Left
Right and left Right and left Front and Back Front and Back
Side view of the system
Back
Front
Front View
Back
Right
Front
Left
0
0
00
0
0
0
0
Front View
CP_eck-G1.epsCP_eck-G2.eps
CP_34000.eps
Gabel1.tif
Adjusting the Off-Center Loading Tolerances
Front View
