Installation
Setting Up the Balance/Scale

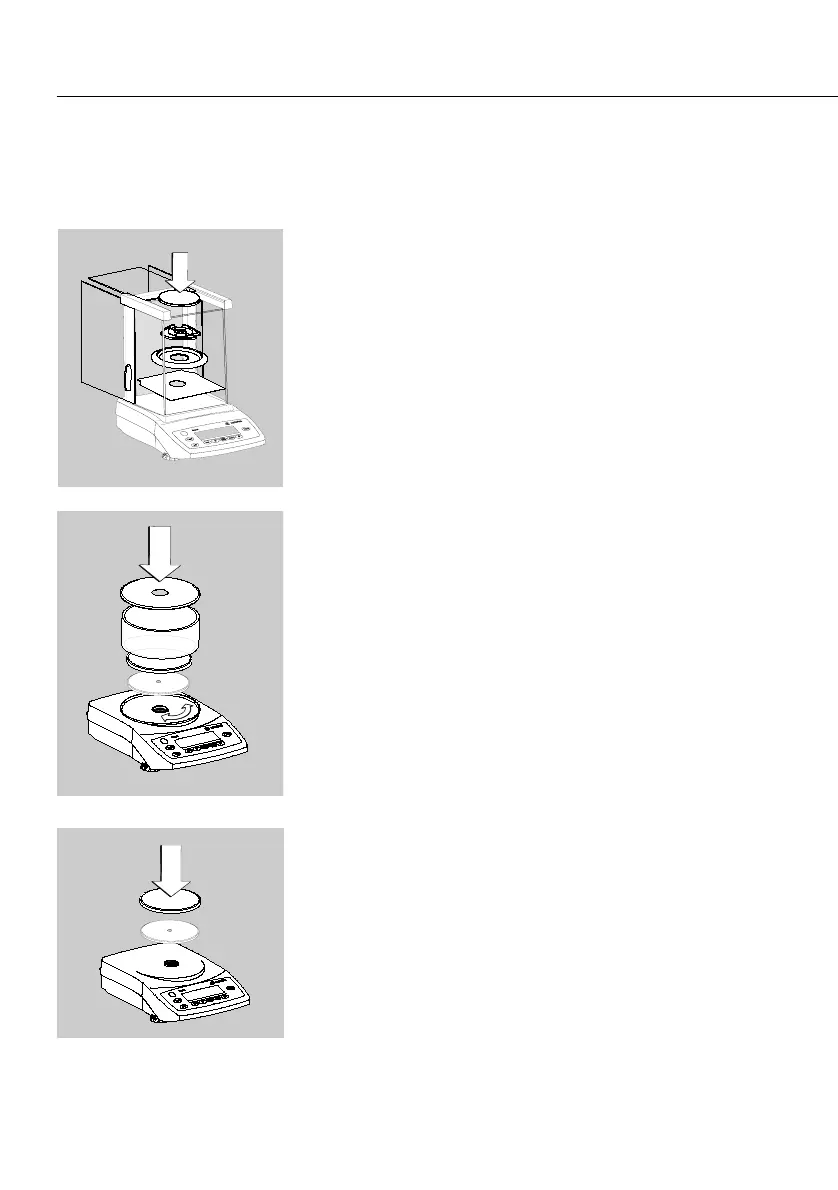

Instruments with sliding-door draft shield:
§ Place components inside the chamber in the follow-
ing order:
– Shield plate
– Shield ring (not on models ED423S-DS, ED323S-DS,
ED153-DS, GK2202)
– Pan support
– Weighing pan
– Gem tray (GK models only)
Instruments with a round glass draft shield:
§ Position the components listed below in the order
given:
– Place the lower lid on the balance/scale with the
raised edge facing upwards and turn it until it is
firmly in position
– Pan support
– Weighing pan
– Glass draft shield
– Gem tray (GK models only)
– Place the upper lid on the draft shield with the
raised edge facing downwards
Instruments with a round weighing pan
§ Position the components listed below in the order
given:
– Pan support
– Weighing pan
– Weighing bowl (GW models only)
Instruments with a rectangular weighing pan:
§ Place the weighing pan on the balance/scale
§ Weighing bowl (GW models only)
