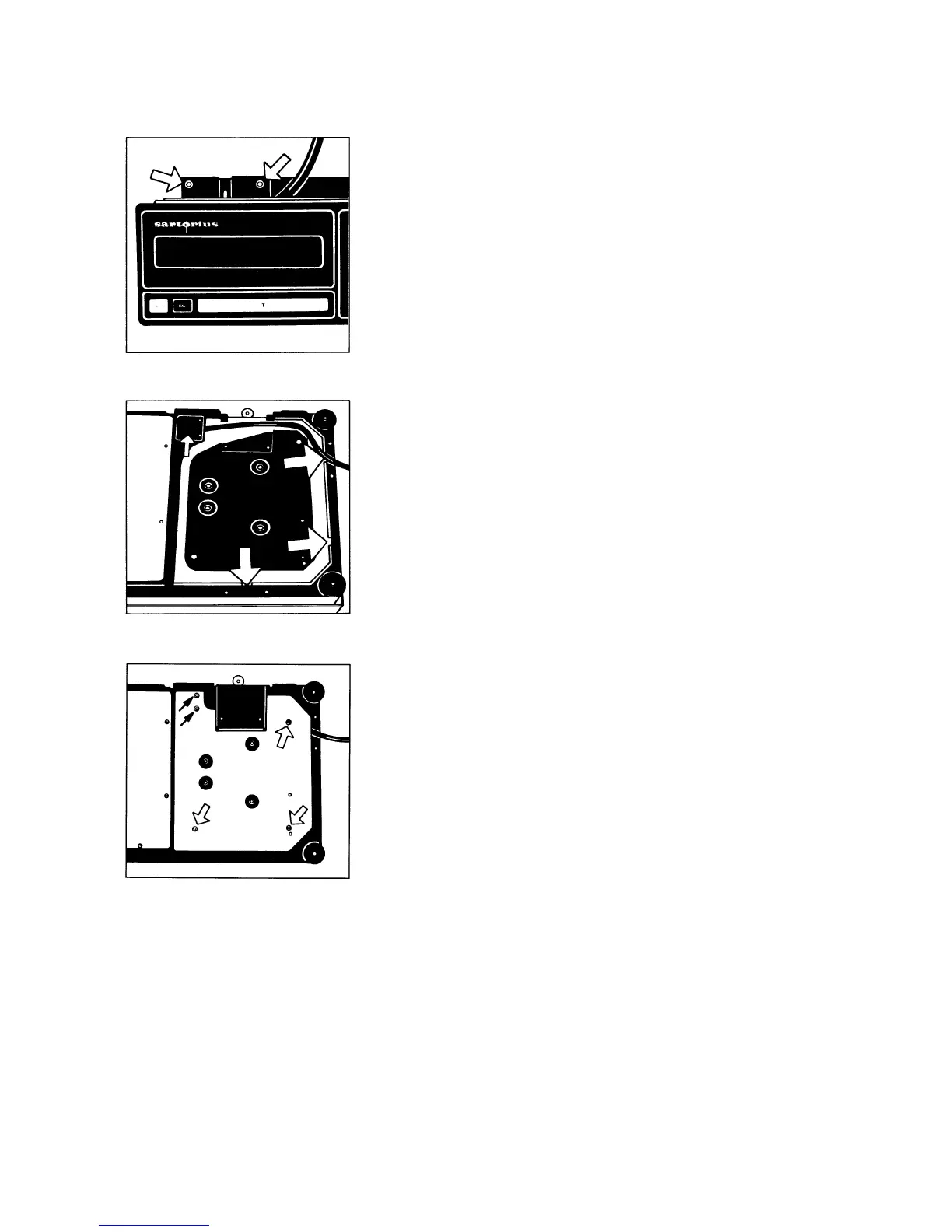

Attach the display unit to the mounting retainers supplied using the
two M4x8 screws and washers (can also be mounted on a wall for use
as a wall console).
Thread the cable through one of the three openings in the scale hous-
ing.
Make sure that the rubber seal (see small arrow) is not damaged.
Reposition the base plate and fasten it in place by tightening the three
M3x8 screws (see the large arrows) and the two M3x10 screws (see
the small arrows).
Afterwards, fasten the angular cover plate in place by tightening the
screws.
