9

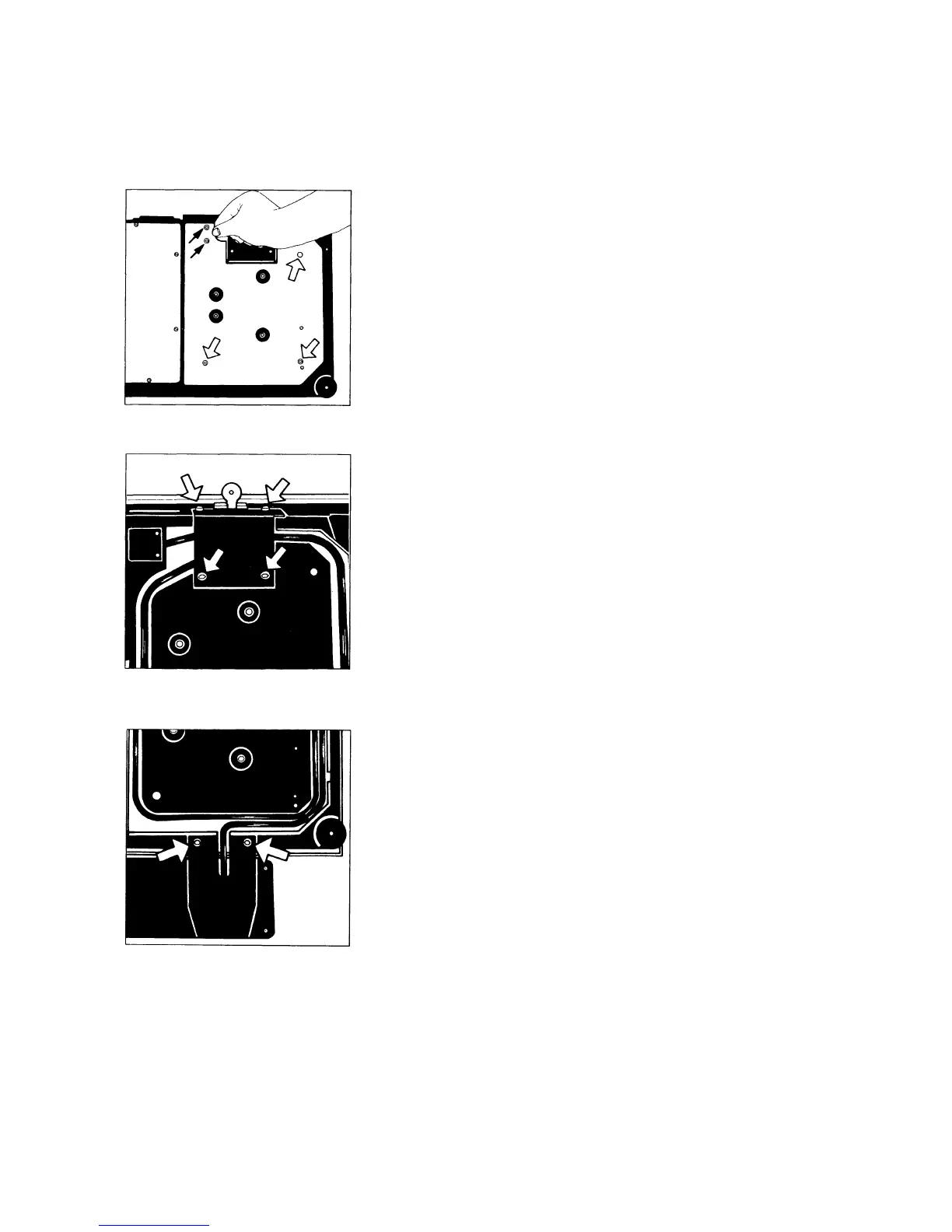

Mounting the Display Unit on the Short Side of Scale Base
Leave the platform cover on the scale base. To mount the display,
turn the scale upside down so that it rests on the platform cover.
Remove the screws from the base plate using the Allen wrench sup-
plied (see arrows) and then remove the base plate.
Unscrew the four screws of the angular cover plate, and remove the
angular cover plate.
Remove the fastening screws from the display unit using the Allen
wrench to untighten them. Remove the cable from the raceway
(channel).
