Female Interface Connector:
25-position D-Submini (DB25S) with
screw lock hardware for cable gland
Male Connector Used:
(please use connectors with the
same specifications):
25-pin D-Submini (DB25S) with
shielded cable clamp assembly (Amp
type 826 985-1C) and fastening screws
(Amp type 164 868-1)

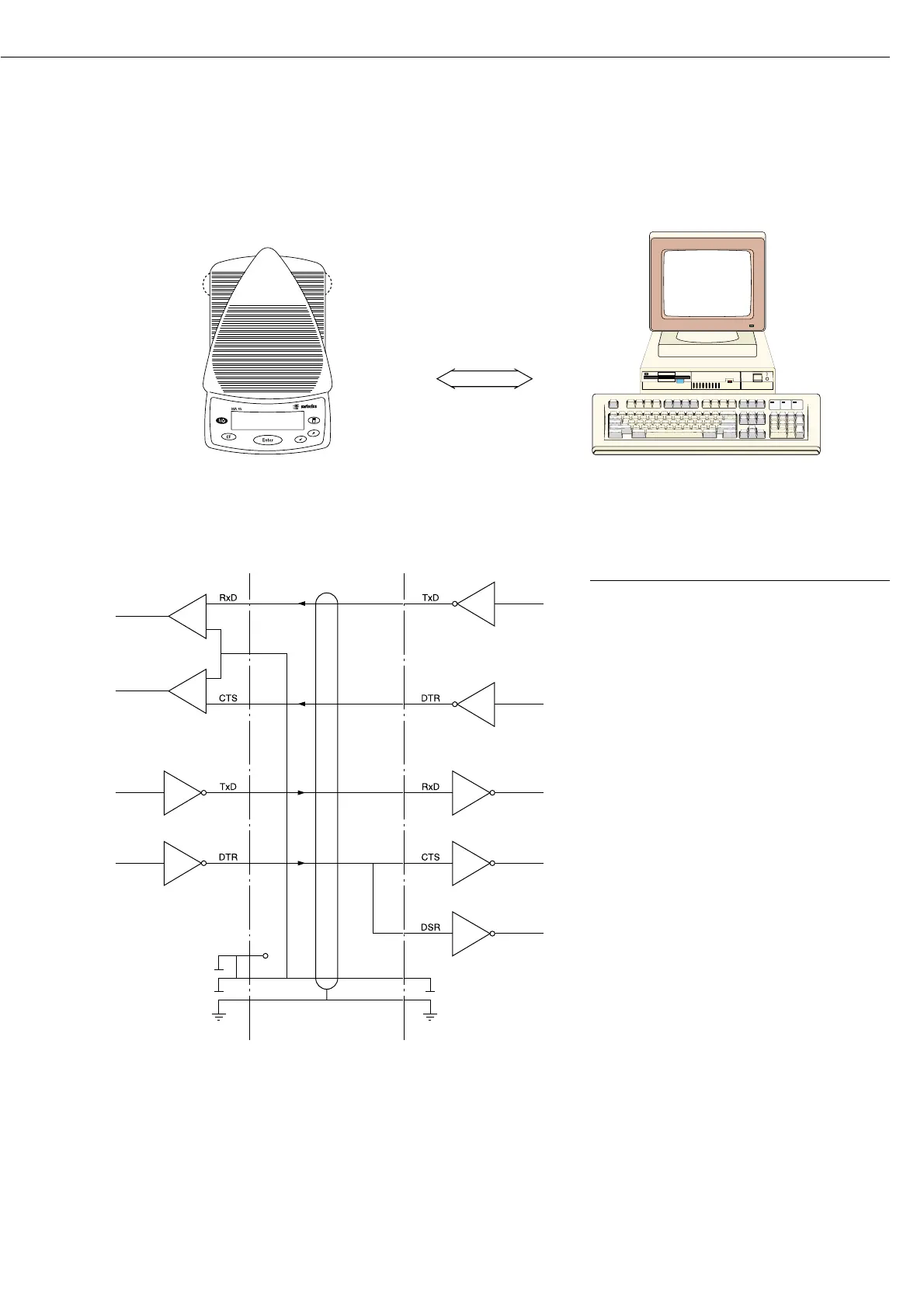

Pin Assignment Chart:
Pin 1: Signal ground
Pin 2: Data output (TƒD)
Pin 3: Data input (RƒD)
Pin 4: Signal return (TƒD/RƒD)
Pin 5: Clear to send (CTS)
Pin 6: Internally connected
Pin 7: Internal ground
Pin 8: Internal ground
Pin 9: Reset _ In*)
Pin 10: –12 V
Pin 11: +12 V
Pin 12: Reset _ Out*)
Pin 13: + 5 V
Pin 14: Internal ground
Pin 15: Internally connected
Pin 16: Internally connected
Pin 17: Internally connected
Pin 18: Internally connected
Pin 19: Internally connected
Pin 20: Data terminal ready (DTR)
Pin 21: Supply voltage ground “COM”
Pin 22: Not connected
Pin 23: Not connected
Pin 24: +10 V
Pin 25: +5 V
*) = Hardware restart
42
Pin Assignment Chart
