SARTORIUS Master
pro
41
Master
pro

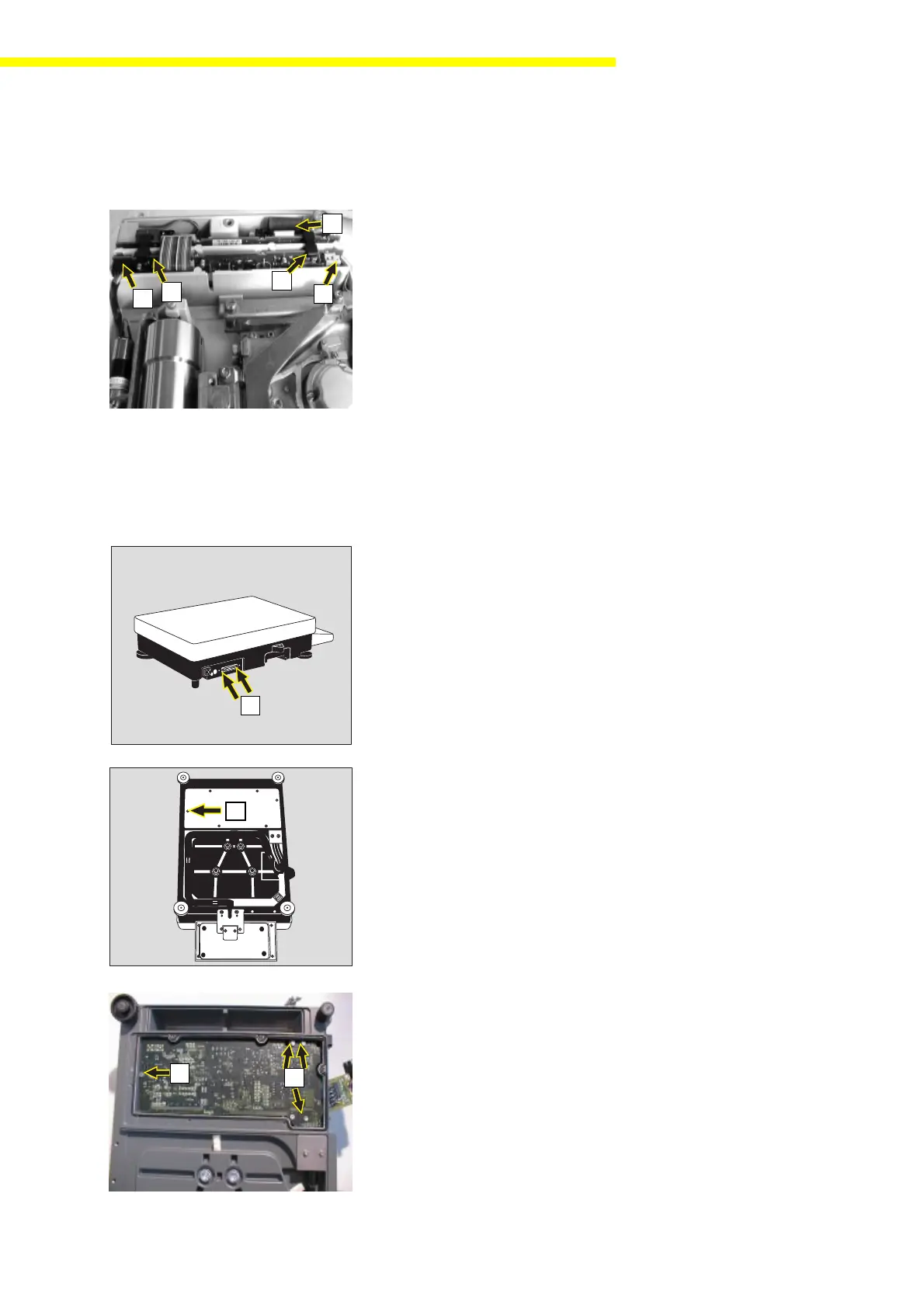

Balances with the Small Single-Casting Block System or Brass System
Disconnect the balance from AC power.
Open the weighing cell (see page 27).
Disconnect the cables to the data output port (A) and the power supply.
Remove both spacers (C) and carefully pull the PCB out of the base pan.
Disconnect the cables to the weight application mechanism (D) and the
weighing system (E).
Follow these steps in reverse order to install the new PCB.
Close the weighing cell (see page 27).
The balance must now be programmed (if the PCB installed is not pre-pro-
grammed).
After programming the balance, check the linearity and span.
Master
pro
Balances with the Large Single-Casting Block System
Disconnect the balance from AC power.
Remove weighing pan.
Open weighing cell (see page 27).
Remove the fastening screws (G) and take out the data output port.
Carefully turn the balance over.
Remove the 6 screws (F) from the cover plate.
Remove the 4 screws (H) from the main PCB.
Platau-1.TIF
C
A
C
D
E
LP03a.EPS
LP08.EPS
G
F
H
H
