Chapter 2 Installation Mechanical Installation
Series PM172 Powermeters 11
Figure

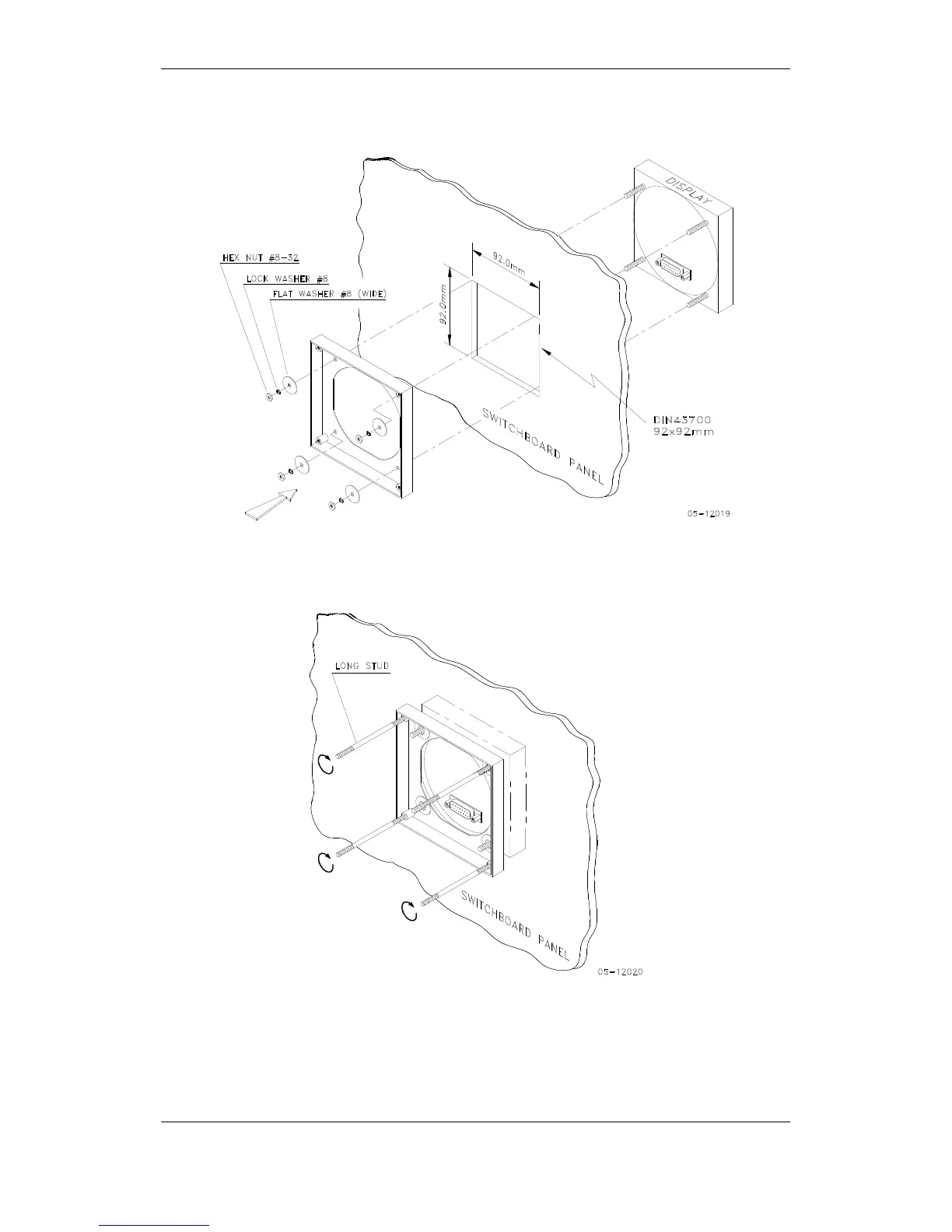

2-3 STEP 1 (DIN 92x92mm square cutout): Mount the display module in cutout
Figure 2-4 STEP 2: Assemble the four locating studs
