Chapter 2 Installation Electrical Installation
Series PM172 Powermeters 23

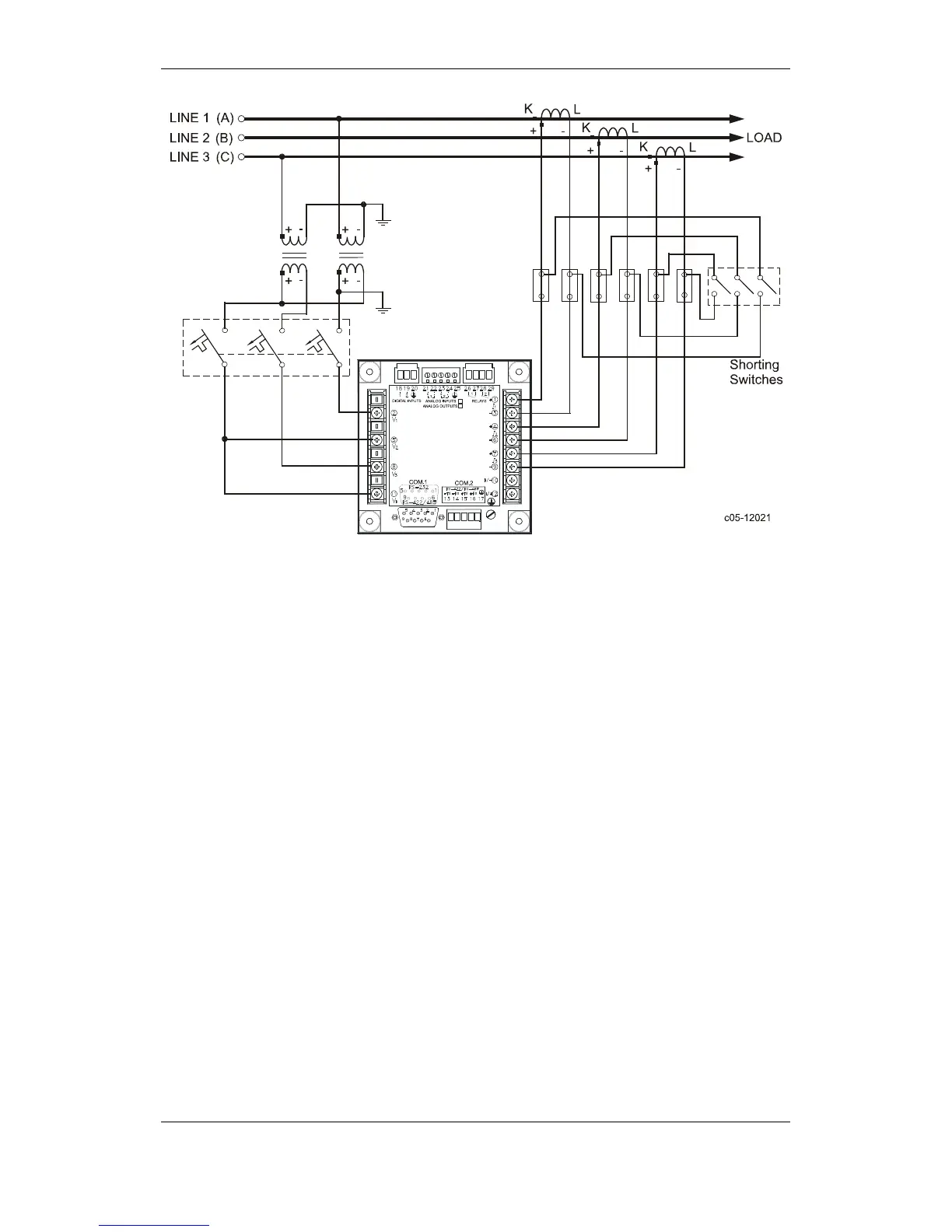

Figure 2-24 3-Wire 2½-Element Broken Delta Connection Using 2 PTs, 3 CTs.
Wiring Mode = 3bLn3 or 3bLL3
