4 OPAL SATEL

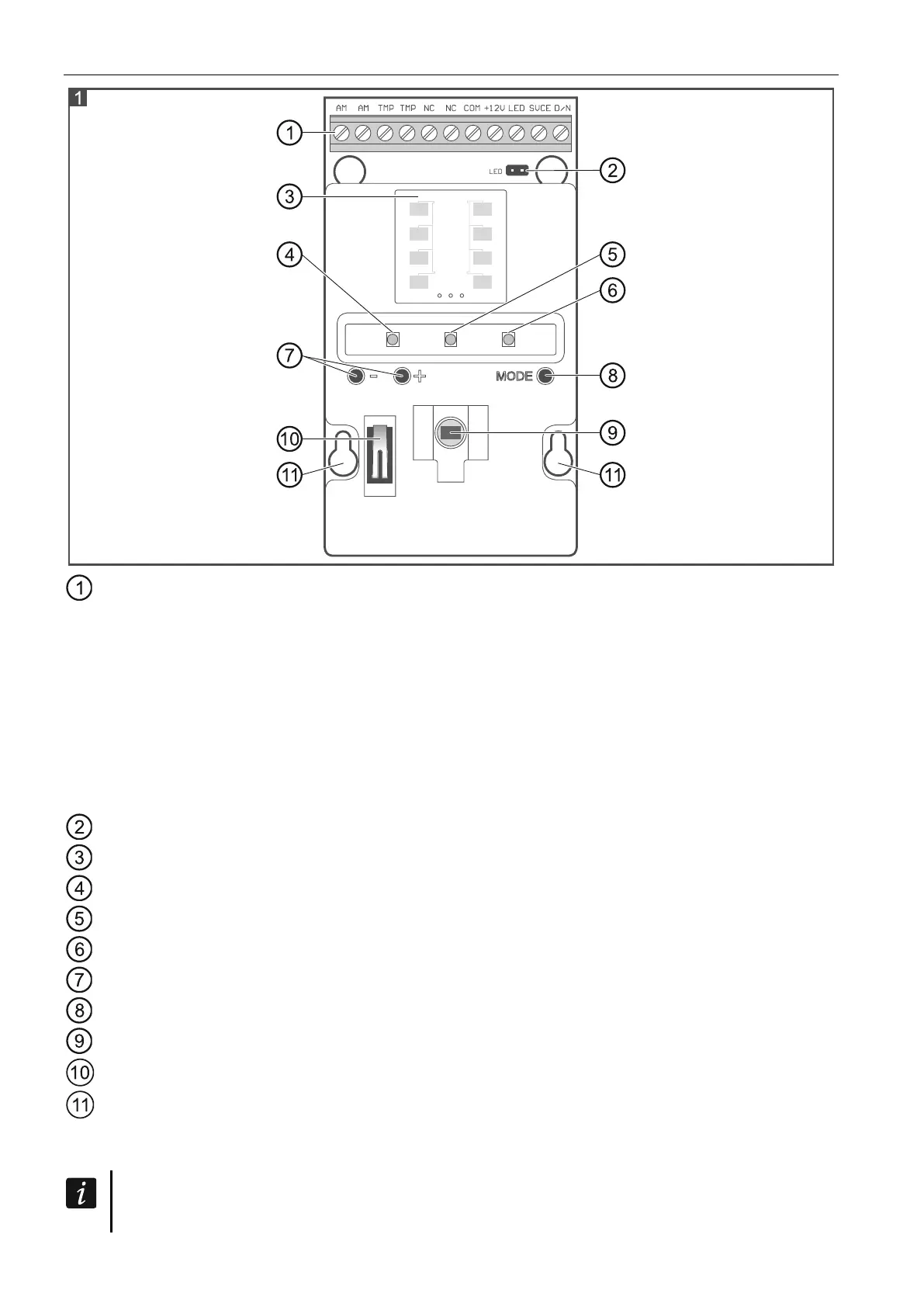

terminals:
AM - anti-mask output (NC relay).
TMP - tamper output (NC).
NC - alarm output (NC relay).
COM - common ground.
+12V - power input.
LED - remote LED control.
SVCE - remote control of configuration mode.
D/N - terminal not used.
pins to enable / disable the LED indicators.
microwave sensor.
green LED.
red LED.
yellow LED.
buttons used during sensors sensitivity setting.
MODE button used for configuring the detector (see: “Configuring the detector”).
PIR sensor (dual element pyrosensor).
tamper switch activated by cover removal.
fixing screw holes.
On the other side of the electronics module there is a tamper switch activated by removing
the detector from the wall.
When mounting the detector on the angle or ball bracket, it is necessary to install
additional tamper switch (it is included in the detector delivery set).
