Unit 5: Troubleshooting
CL408-412e Supplemental Manual
5-9 PN: 9001159A

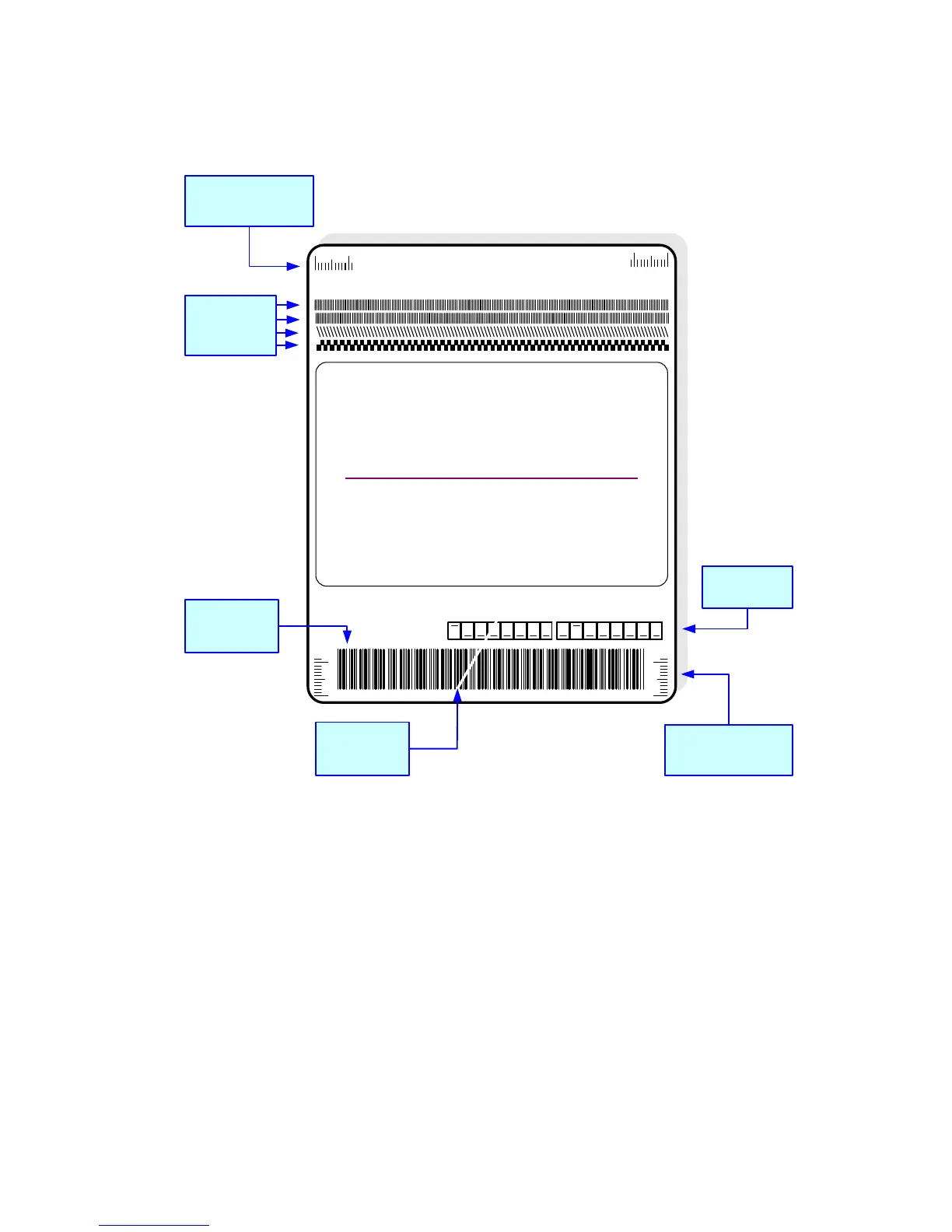

Figure 5-3, Sample Test Label
D S W 3D S W 2D S W 1
N O N E
SAMPLE TEST LABEL
Label Contents Will Vary Depending on Test Label Type .
Compare this scale on each
side to ensure the print is
evenly spaced horizontally .
Compare this scale on each
side to ensure the print is
evenly spaced vertically .
Visually inspect
these rows for voids
indicating defective
head elements.
Displays the dip
switch settings at
the time of print.
Clear line in print
indicates the ribbon
was wrinkled during
printing.
Line sharpness is
determined by print
speed and darkness.
To Next Page
