PRINT SETUP DIMENSIONS

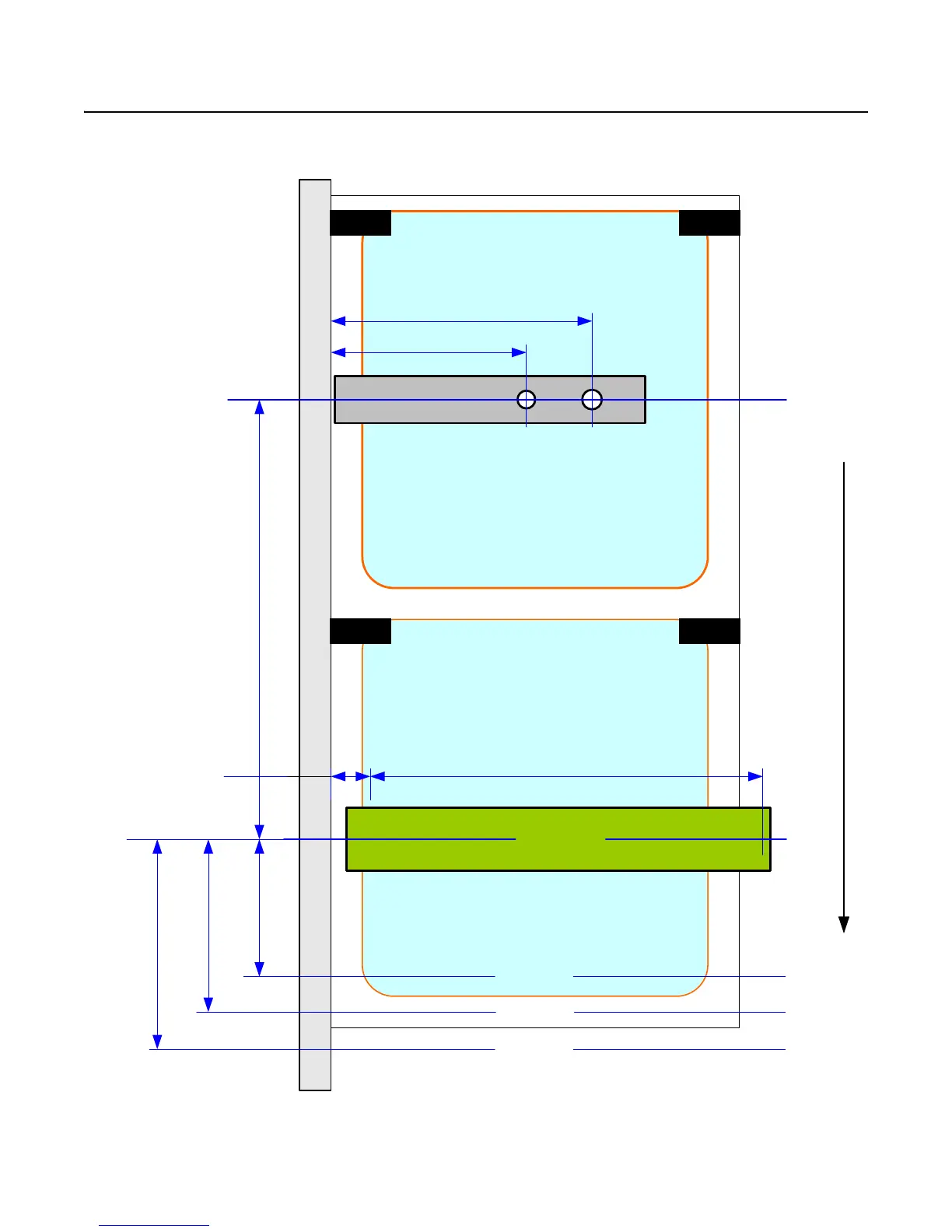

Figure 7-1, Print Setup Dimensions
Print Head
Tear-Off
Invalid Area for Print
Gap 0.67 – 2.64"
Eye-Mark 0.24 – 2.09"
0.99"
1.94"
Print Width: 4.09"/4.20"
LABEL PRINT DIRECTION
Eye-Mark, Gap, Paper-End
Sensors
Dispenser
Cutter
1.16"
0.93"
