SATO CL4NX RIDF User Manual

Checking the Ink S
ide of the Ribbon
This
printer
supports
two
types
of
print
methods: thermal transfer and direct thermal. Thermal
transfer printing transfers the ink of the ribbon to the media. Direct thermal printing creates the image
on direct thermal media. Ribbon is not necessary when using direct thermal media.
There are two wind directions for the ribbon. The Face-out direction indicates that the ink is on the outer
side; the Face-in direction indicates that the ink is on the inner side. This printer supports both wind
directions. The following procedure may be used to determine the ink side of the ribbon:

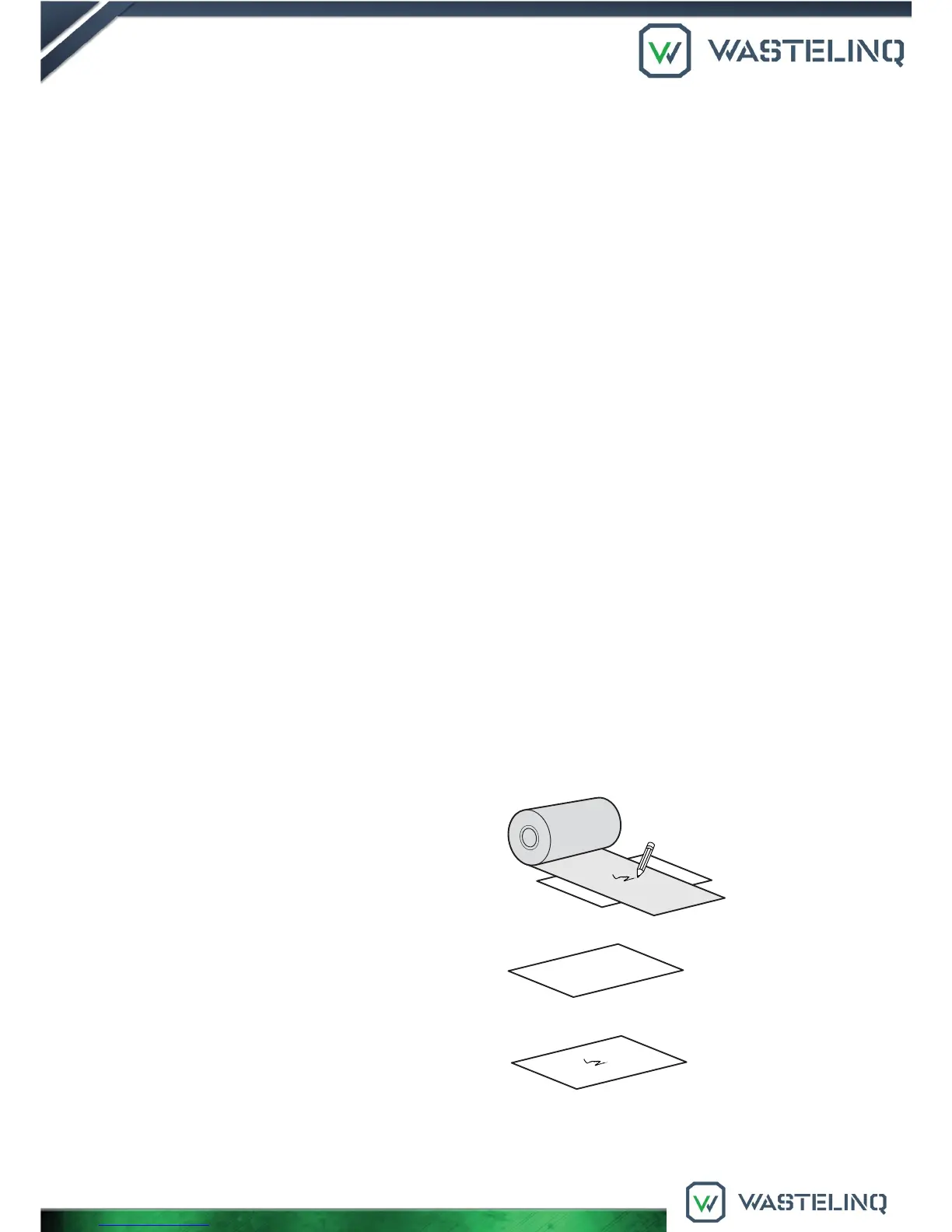

1 Place the outer side of the ribbon onto
the media (touching).
2 Scratch the inner side of the ribbon with
your fingernail or a pointed object.
3 If there is a mark on the media, the ink is
coated on the outer side of the ribbon.
The ink is coated
on the inner side.
(Face-in ribbon)
The ink is coated
on the outer side.
(Face-out ribbon)
Label Printer Installation & Configuration
This guide applies to the SATO CL4NX Printer. Be aware that updates and/or OS revisions may
affect the look and feel of the interface. Please visit www.sato.com for additional details.
1. Have some benzyl hydroxyl handy to clean sensors.
2. Media Labels
3. Thermal Ribbon
Do not turn the printer on until media ribbon and label roll has been properly installed.

SATO CL4NX RIDF Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Width	4.09 inches (104 mm)
Print Resolution	203 dpi
Media Type	Roll, Fan-fold
Media Thickness	0.0024 - 0.01 inches
Ribbon Length	984 feet (300 m)
Processor	32-bit RISC processor
Interfaces	USB, RS-232C, Ethernet
RFID	Optional
Supported Barcode Types	1D, 2D
Power Supply	AC100V to 240V ± 10%, 50/60 Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	30 - 80% RH, non-condensing
Weight	33.07 lbs
