SATO CL4NX RIDF User Manual

3 Loading the Ribbon and Media
Usable Media
This
printer can print on two types of media: media roll and fan-fold media. The printer uses media
sensors to detect I-marks or Gaps on the media in order to precisely print the content.

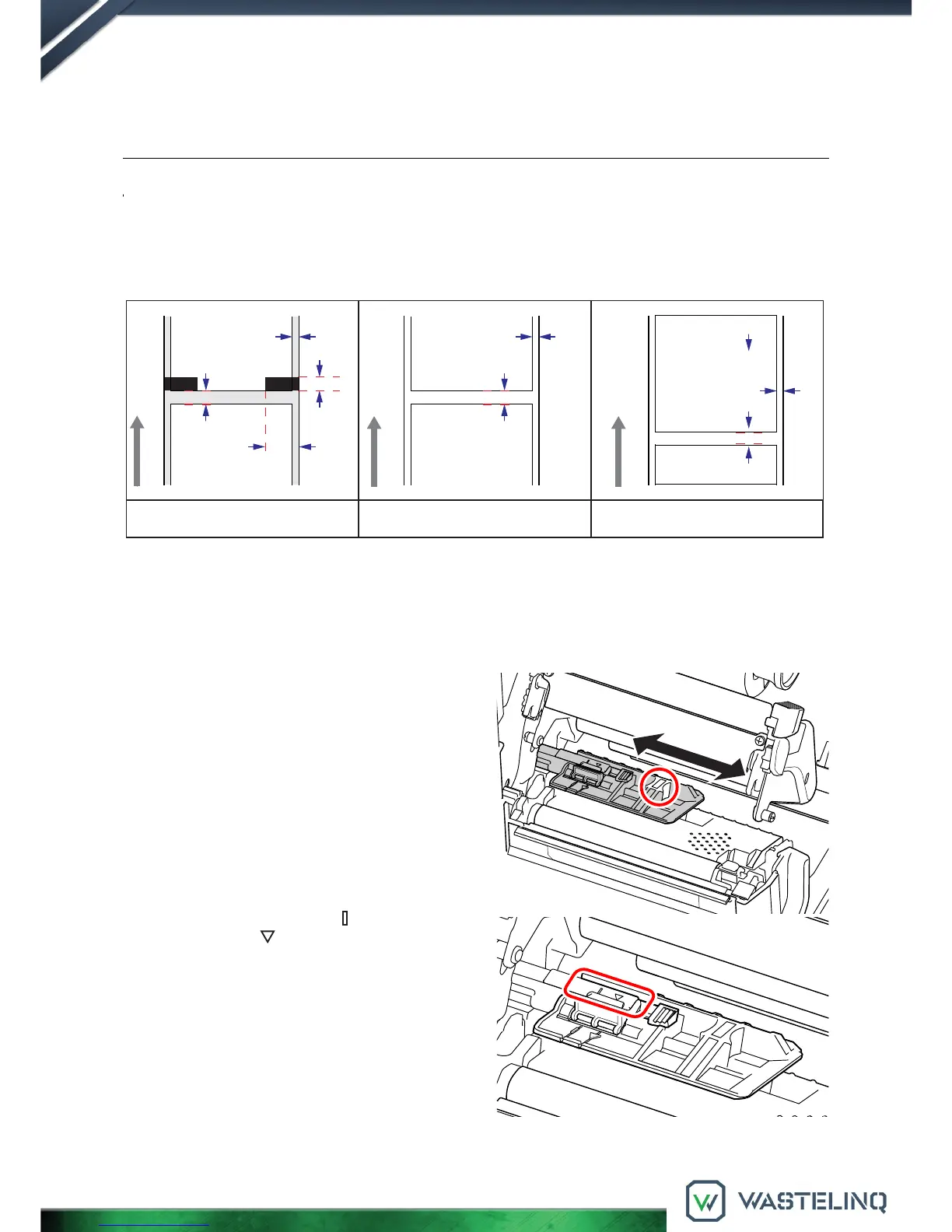

Adjusting the Position of the Media Sensor
When using nonstandard media (e.g. media with printing on the underside, or media with a special
shape), the media sensor cannot sense the I-mark or Gap of the media correctly. In s
uch a case, adjust
the position of the media sensor to sense the I-mark or Gap correctly.
Adjust the media sensor guide to the position where it
can sense the I-mark or Gap of the media.
The I-mark sensor is below the mark, and the Gap
sensor is below the mark.
14 mm
(0.55”)
1.5 mm (0.06”)
Gap label
I-Mark label
3 mm
(0.12”)
3 mm
(0.12”)
1.5 mm (0.06”)
3 mm
(0.12”)
Media feed
direction
Media feed
direction
Media feed
direction
...........................................
Our Labels 4" x 6.5" w/ Perf 1.75"
from bottom
1.5 mm (0.06”)
3 mm (0.12”)
1.75”

SATO CL4NX RIDF Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Max. Print Width	4.09 inches (104 mm)
Print Resolution	203 dpi
Media Type	Roll, Fan-fold
Media Thickness	0.0024 - 0.01 inches
Ribbon Length	984 feet (300 m)
Processor	32-bit RISC processor
Interfaces	USB, RS-232C, Ethernet
RFID	Optional
Supported Barcode Types	1D, 2D
Power Supply	AC100V to 240V ± 10%, 50/60 Hz
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	30 - 80% RH, non-condensing
Weight	33.07 lbs
