1 approx. 5 mm below the upper edge of the cylinder
2 approx. 50 mm below the upper edge of the cylinder
21

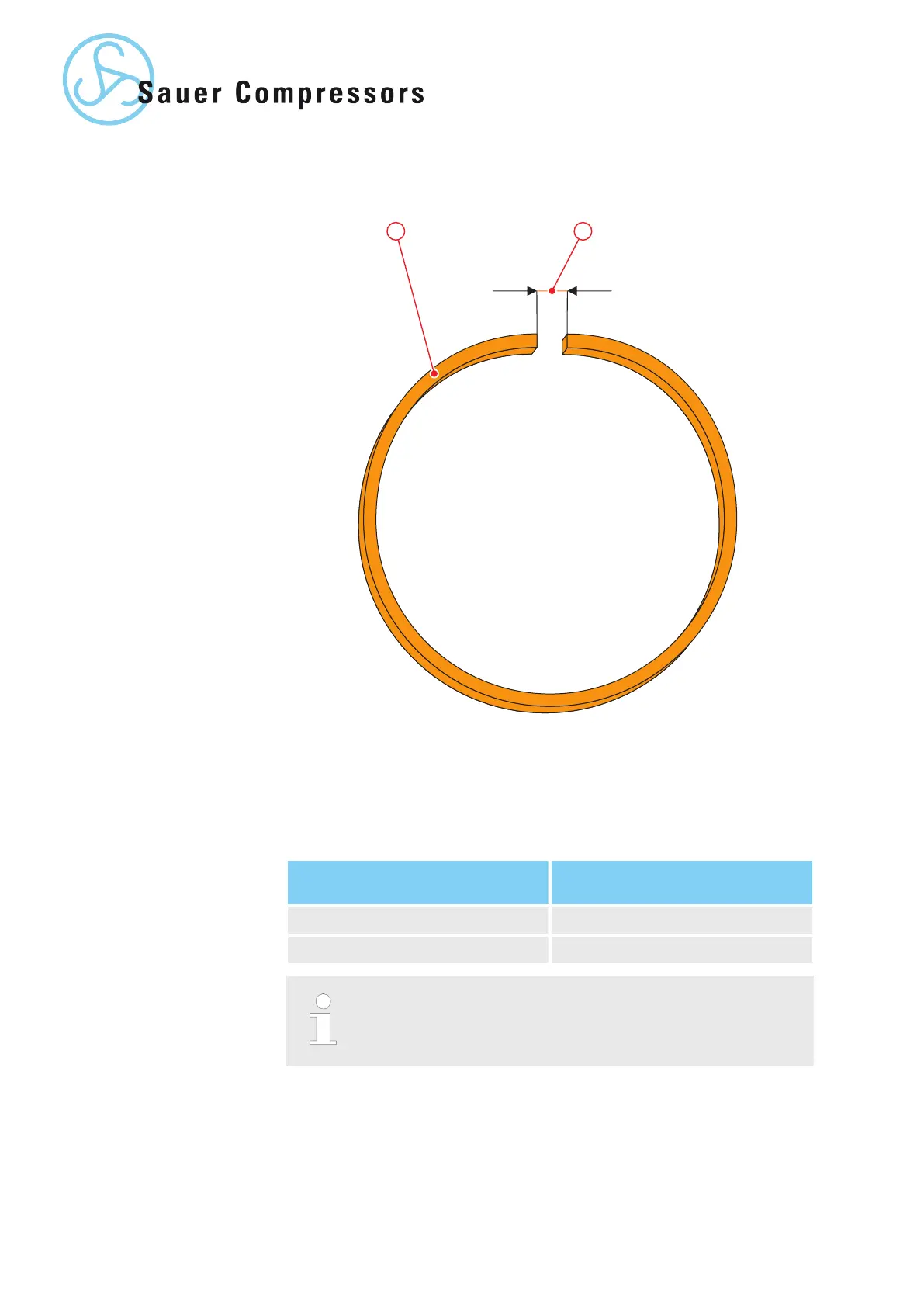

Fig. 15: End gap
1 Piston ring
2 End gap
Piston diameter Permissible gap clearance differ-
ence
≥ 100 mm 0.45 mm
< 100 mm 0.30 mm
Contact the Sauer-Service of Sauer USA if the mechanical
seal needs to be replaced.
42 | WP5000 Basic WA 41013675 en GB 20190916
