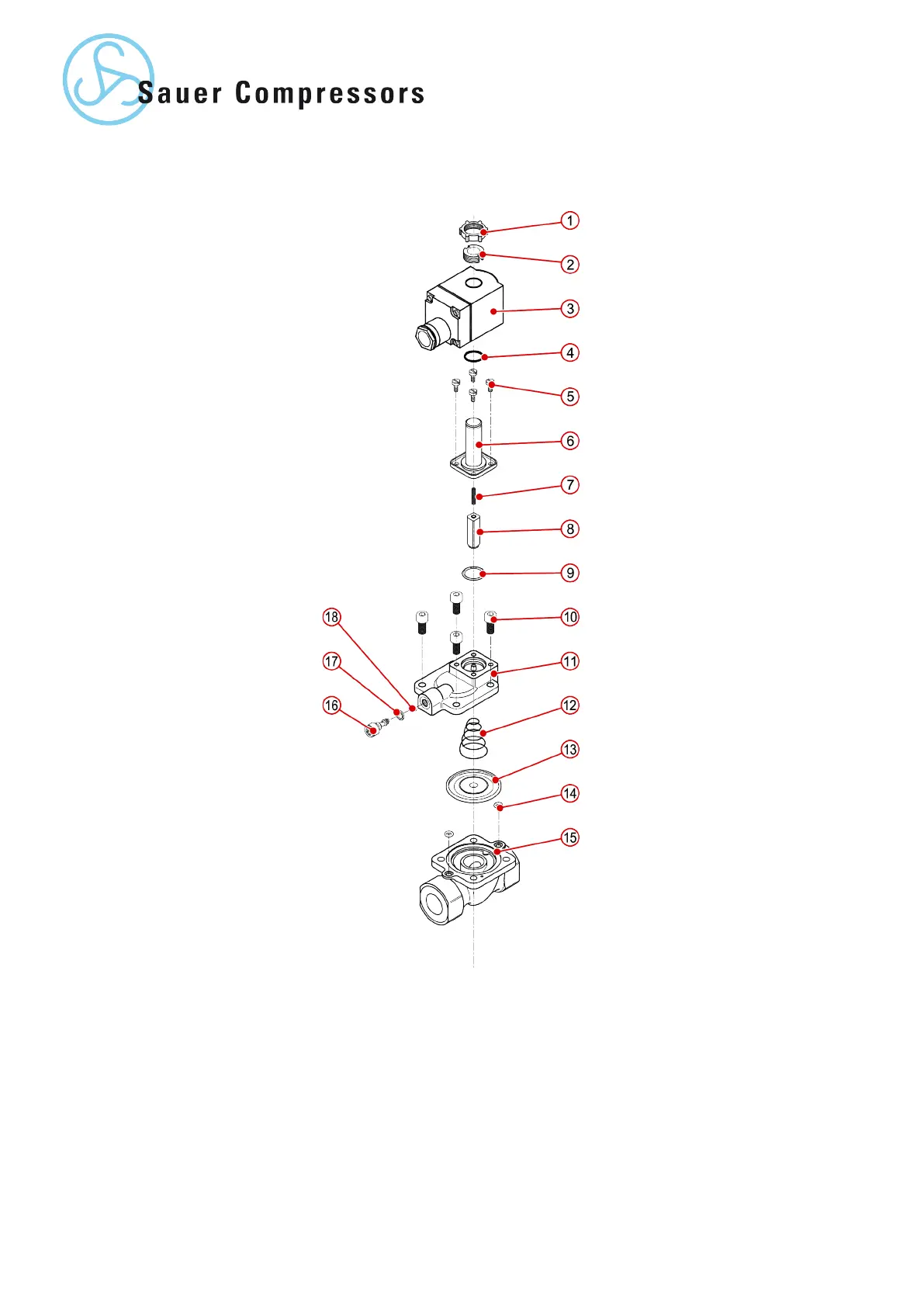

Fig. 19: Servicing the cooling water solenoid valve
1 Lock nut
2 External thread cap
3 Coil
4 O-ring
5 Screws
6 Solenoid armature tube
7 Solenoid armature spring
8 Solenoid armature
9 O-ring
10 Inner hexagon socket head screws
11 Housing upper part
12 Membrane spring
13 Membrane
14 Housing lower part O-ring
15 Housing lower part
16 Compensating jet
17 O-ring
18 O-ring
