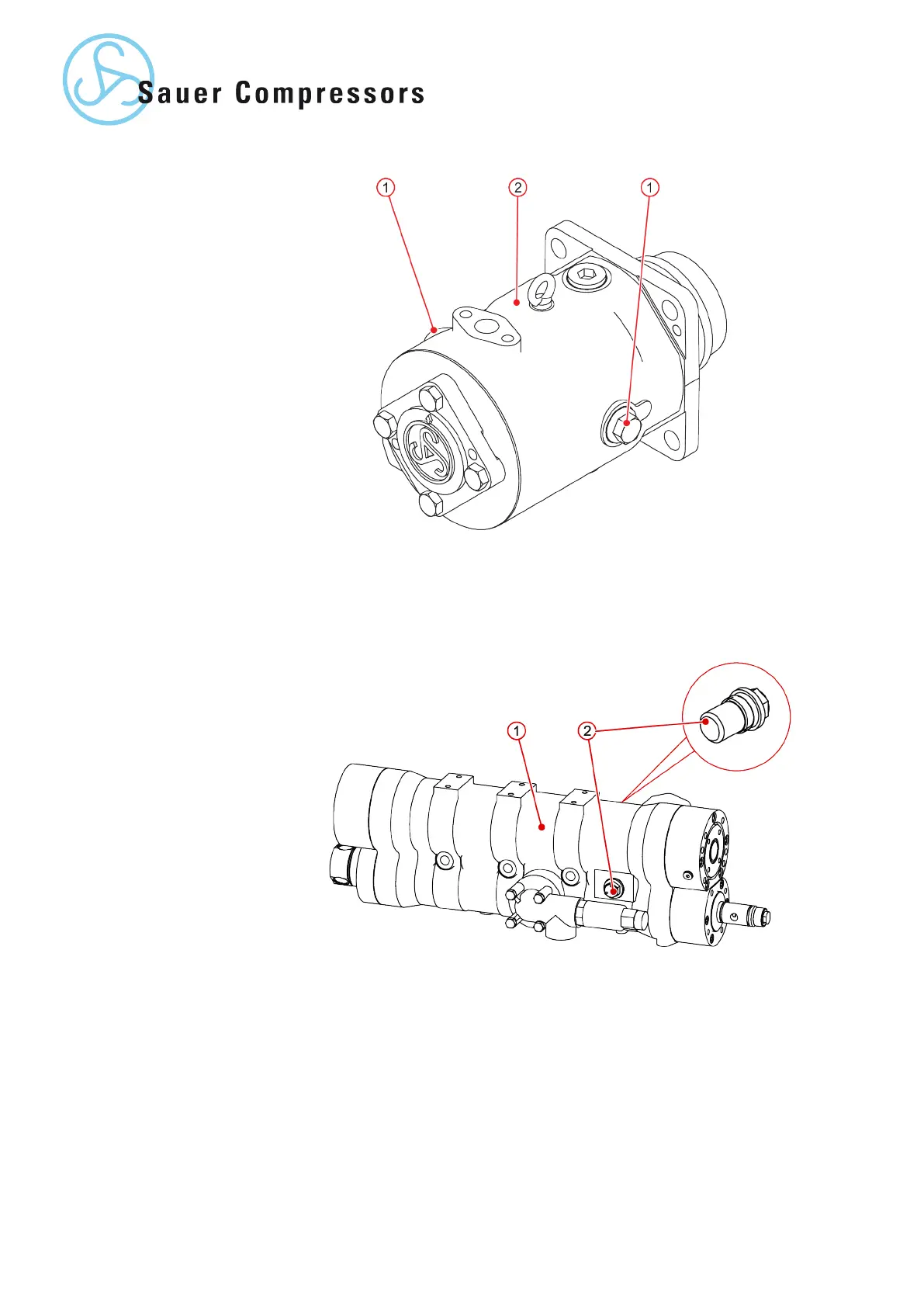

Fig. 21: Example of sacrificial zinc anodes on the cylinder
1 Sacrificial zinc anode
2 Cylinder
Fig. 22: Example of sacrificial zinc anodes on the cooler housing
1 Cooler housing for compression stage 1/4
2 Sacrificial zinc anode
56 | WP5000 Basic WA 41013675 en GB 20190916
