RT-TGP/RT-BT OWNER’S MANUAL
Power Switch for In-Line Router Tables
Switch Box Mounting Bracket
Assembly (1)
Handle Mounting Bracket (1)
Leg Mounting Bracket (1)
Leg Mounting Hardware Pack (1)
• M10 x 1.5 x 45 Hex Head Bolt (4)
• M10 x 19 x 2 Washer (8)
• M10 x 1.5 Lock Nut (4)
• M6 Lock Washer (4)
• M6 x 1.0 x 12 Socket Head Cap
Screw (4)
• M5 x 0.8 x 30 Pan Head Phillips
Screw (1)
• M5 Lock Washer (2)
• M5 x 12 x 1 Washer (2)
• M5 x 0.8 x 8 Pan Head Phillips
Screw (1)
Wing Mounting Hardware Pack (1)
• M8 x 1.25 x 45 Hex
Head Bolt (4)
• M8 x 19 x 2 Washer (8)
• M8 Lock Washer (4)
• M8 x 1.25 x 12 Hex Nut (4)
Rail Mounting Hardware Pack (1)
• M8 x 1.25 x 25 Flat Head
Socket Screw (4)
• M8 x 19 x 2 Washer (4)
• M8 Lock Washer (4)
• M8 x 1.25 x 12 Hex Nut (4)

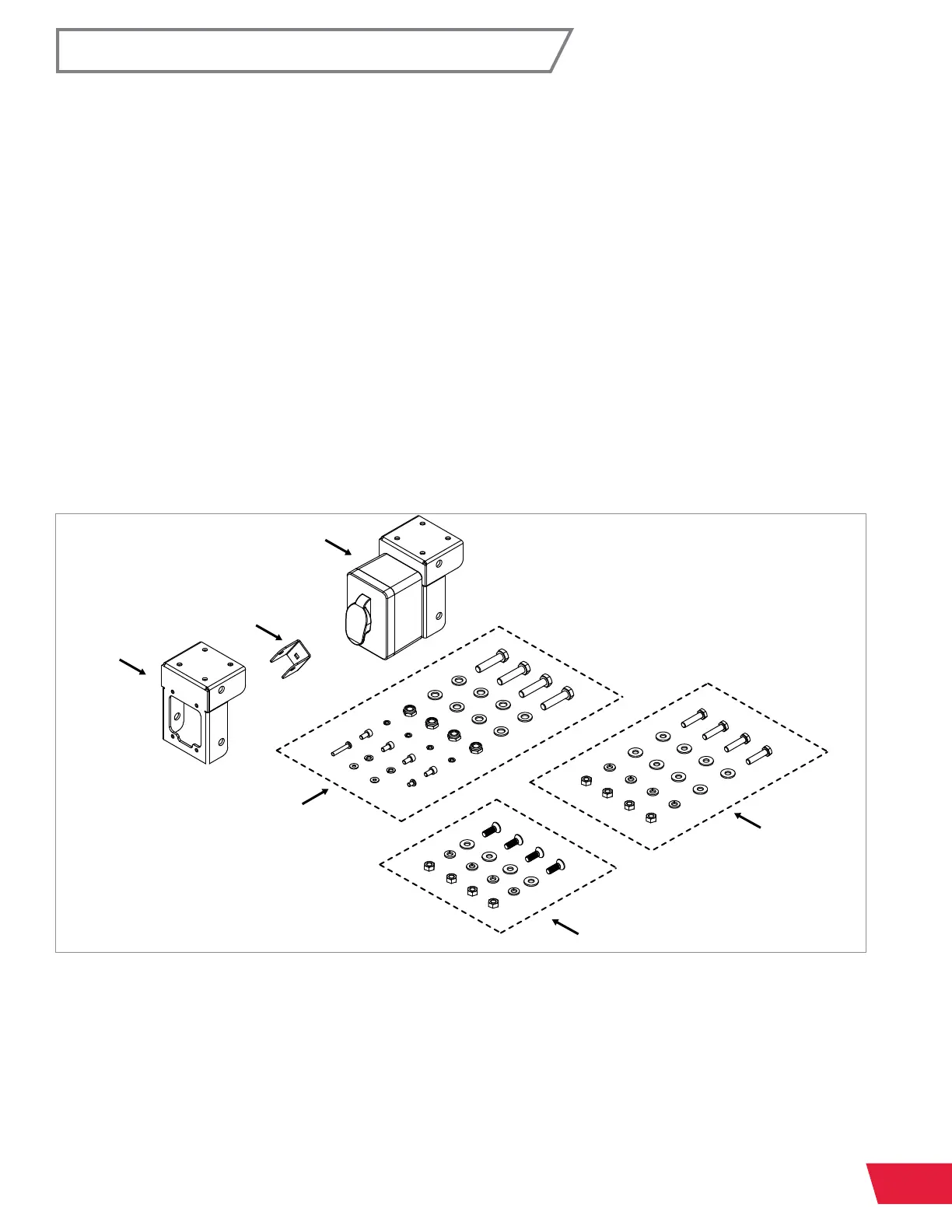

A.
B.
C.
D.
E.
F.
A
B
C
D
E
F
You will also need the following tools to complete the Power Switch for Router Tables
assembly:
• Phillips Head Screwdriver
• 16mm Wrench (x2)
• 13mm Wrench (x2)
See Exploded View #4 on page 55 for more information.
• 5mm Hex Wrench
• Level or Straight Edge
