SawStop RT-TGP - Assembling the 27 Fence Assembly

40
RT-TGP/RT-BT OWNER’S MANUAL
1
2

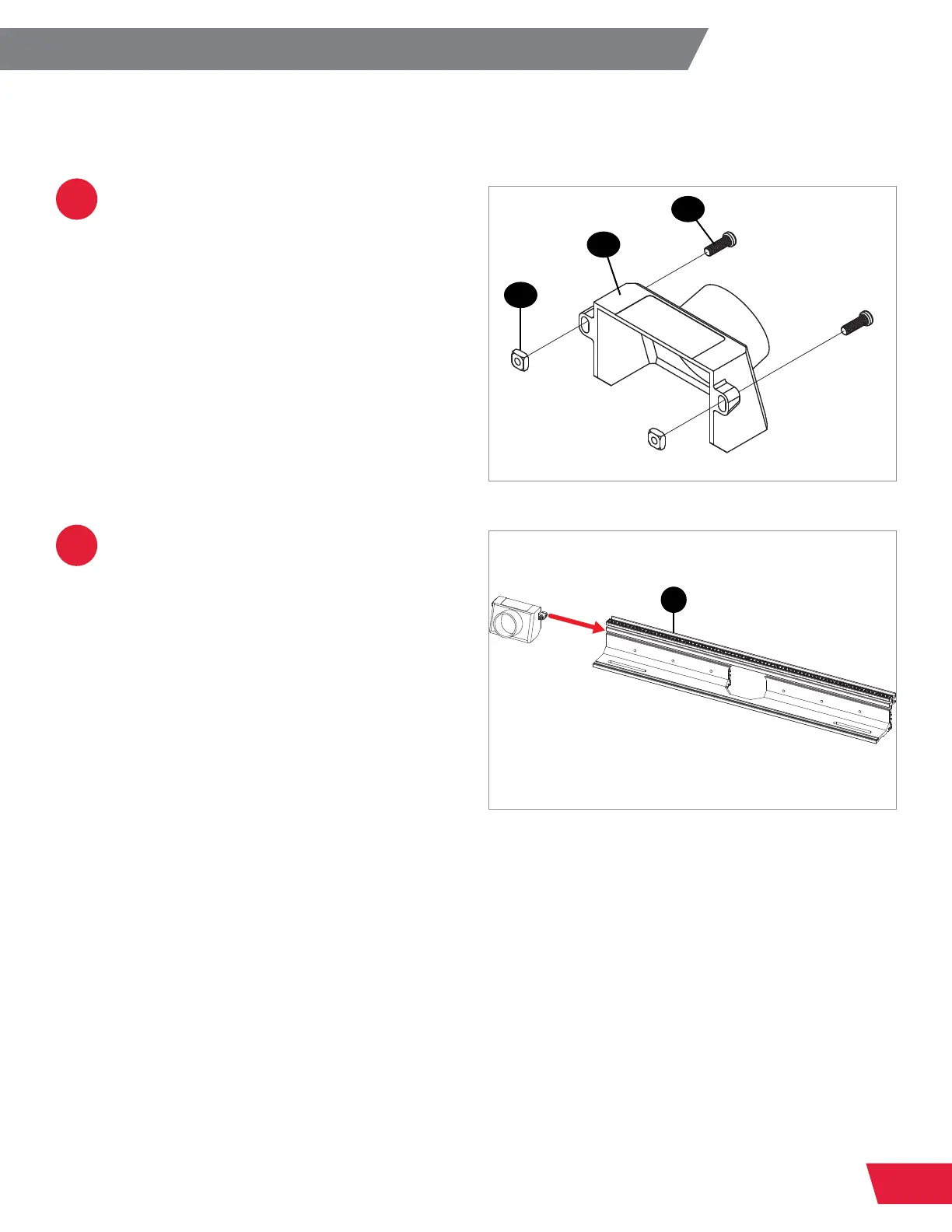

Thread a pan head Phillips screw (5.11)
into one of the two holes on the side of
the 2 ½” dust port (5.10), then thread a
square nut (5.12) partway onto the end
of the screw. Repeat this process with
another pan head Phillips screw and
square nut, but thread the screw in the
hole on the other side of the dust port.
Slide the two square nuts into the lower
T-slot on the back of the router table
fence (5.1) until the dust port is aligned
with the large opening in the back of
the fence. Use a Phillips screwdriver to
tighten the screws to secure the dust
port to the router table fence.
Assembling the 27” Fence Assembly for Router Tables
Requires:
Hardware and Components for 27” Fence Assembly for Router Tables
Phillips Head Screwdriver
5.11
5.12
5.10
5.1
