Rail Requirements: In-Line Right of PCS Right Wing

36” Rails

52” Rails

Use the gures below to verify your rails are compatible with the In-Line conguration on

the right wing of your Professional Cabinet Saw. If your rails are not already compatible,

you may choose to:

• Install your In-Line Router Table left of the left wing

• Purchase RT-Ready Replacement Rails (in green below)

• Modify your existing rails. NOTE: SawStop-approved installation requires using SawStop-

manufactured RT rails. No cut templates for rail modication are available from SawStop.

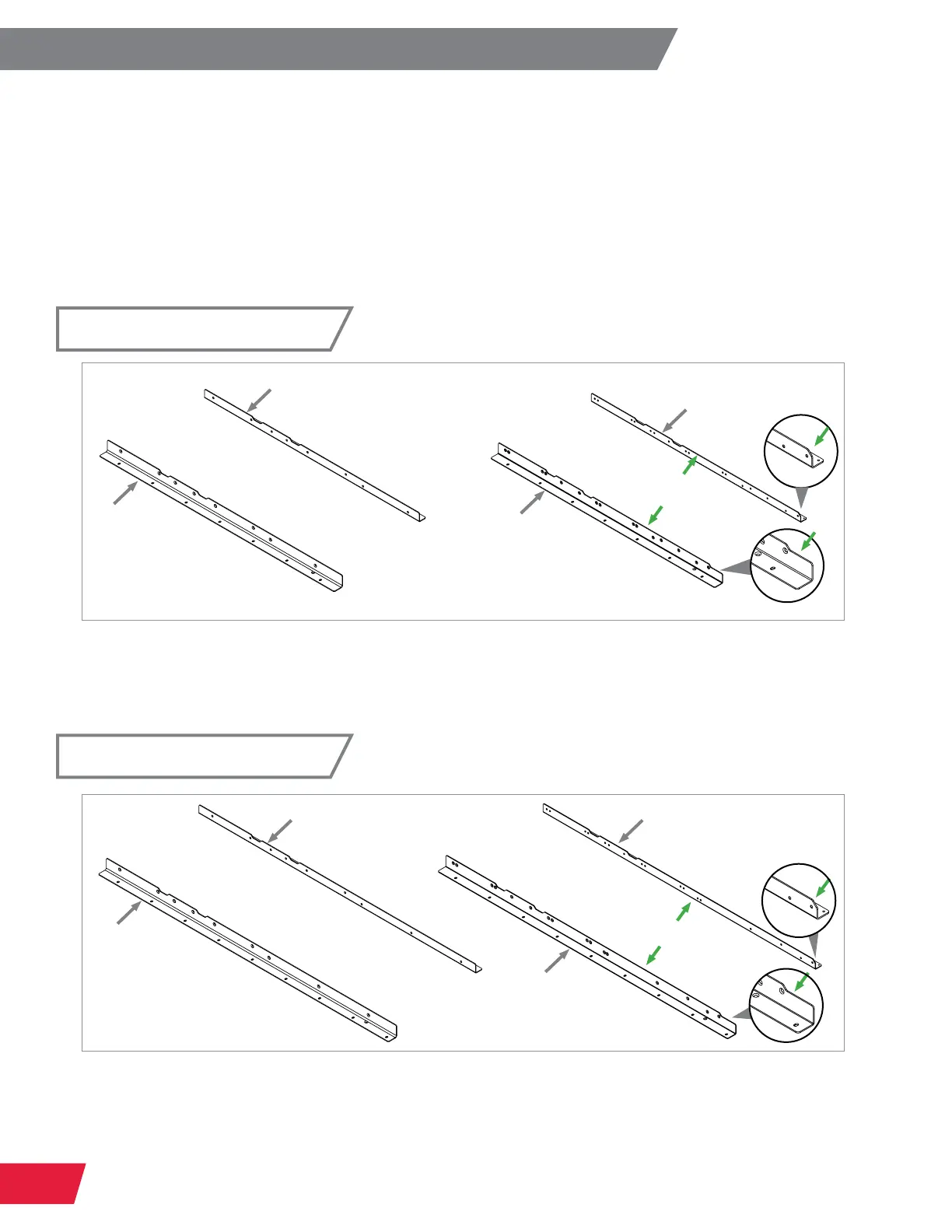

36" TGP2 Rails

Part Number: TGP2-R36A

NOT COMPATIBLE

36" TGP2 Rails

Part Numbers: RT-TGP2-L-R36A

and TGP2-R36A2

COMPATIBLE

(Notice notched ends and additional

mounting holes in front and rear rails)

FRONT RAIL

REAR RAIL

CORRECT HOLE

PATTERNS

52" TGP2 Rails

Part Number: TGP2-R52A

NOT COMPATIBLE

52" TGP2 Rails

Part Numbers: RT-TGP2-L-R52A

and TGP2-R52A2
