SawStop RT-TGP - In-Line Left of Left Wing Installation (PCS or CNS)

24
RT-TGP/RT-BT OWNER’S MANUAL
In-Line Left of Left Wing (PCS or CNS)
Requires:
“Wing Mounting Hardware” Bag for Power Switch for In-Line Router Tables
Assembled Router Table with Support Legs
Installed Left Cast Iron Wing (CNS)
Straight Edge
13mm Wrench (x2)
THIS PROCEDURE REQUIRES TWO PEOPLE. THE CAST IRON TABLE IS HEAVY
AND CAN CAUSE SERIOUS PERSONAL INJURY OR DAMAGE IF DROPPED.
The gures show a Professional Cabinet Saw, but the procedure is the same for a Contractor Saw with
cast iron wings.
i
1

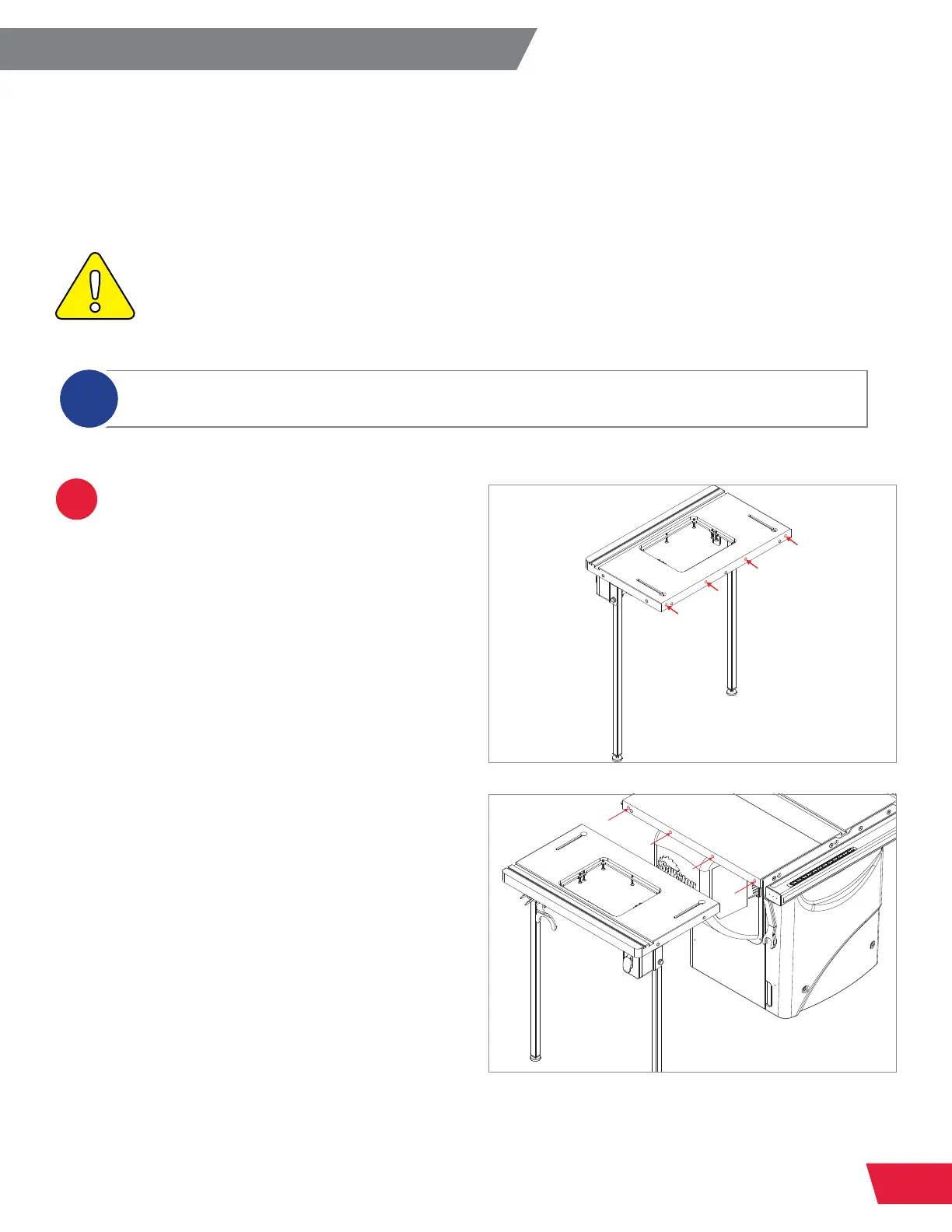

Align four of the mounting holes in the
router table (indicated by the red arrows
in Figure A) with the four holes in the
left extension wing of your saw (as
indicated by the red arrows in Figure B).
A
B
