RT-TGP/RT-BT OWNER’S MANUAL
The hardware for the following step can be found in your “Wing Mounting Hardware” bag (4.21) from
your Power Switch for In-Line Router Tables box.
i
2
3

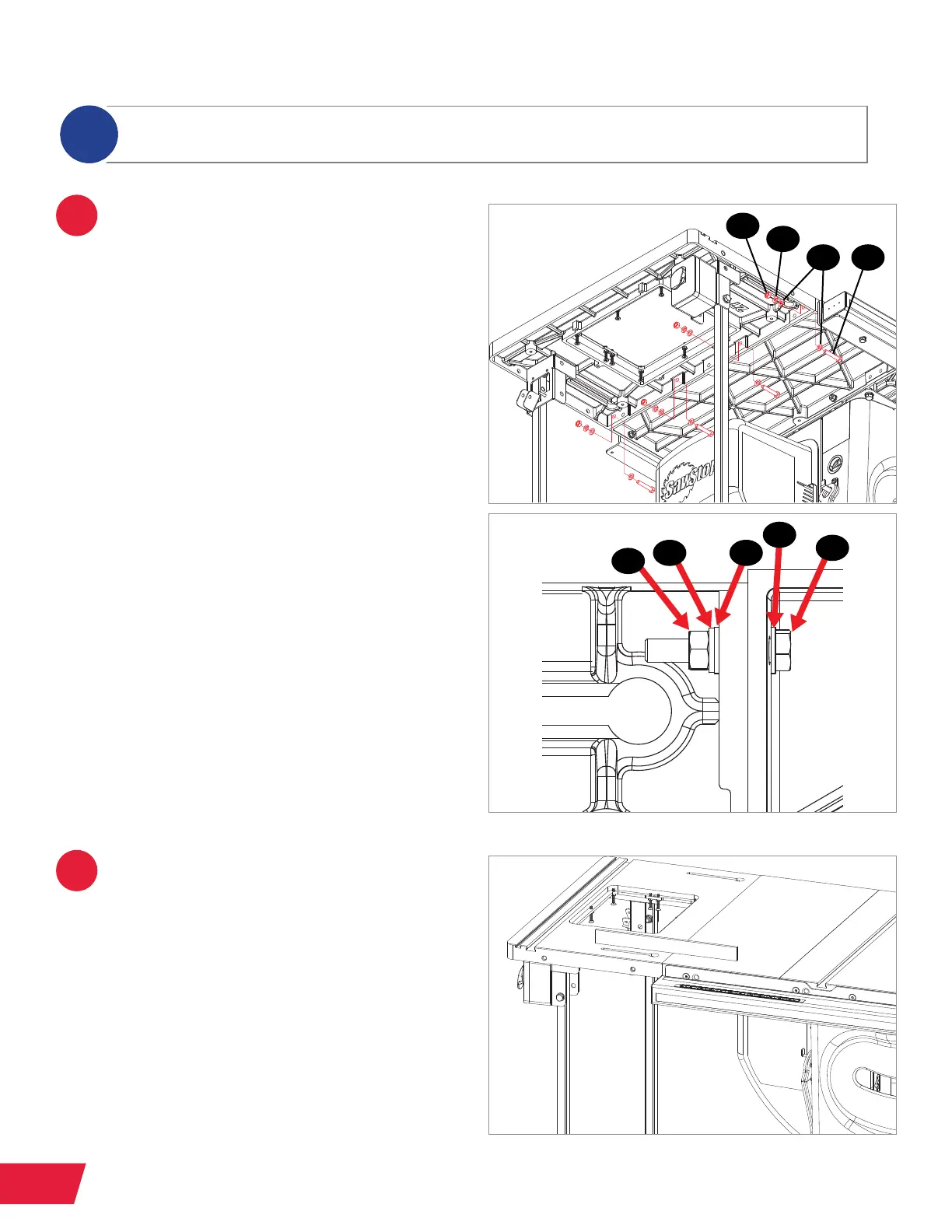

Insert a hex head bolt (4.13) through a
washer (4.14), through one of the holes
in the extension wing, then through one
of the holes in the router table. Secure
the bolt with another washer (4.14), a
lock washer (4.15), and a hex nut (4.16).
Only nger tighten the nut at this time.
Repeat this process for the remaining
three holes in the extension wing and
router table.
Lay a straight edge across the front of
the extension wing so that it extends
over the top of the router table. Ensure
the router table is ush with the top of
the extension wing and then use two
13mm wrenches to tighten the bolt
and hex nut closest to the front of the
extension wing. Repeat the process
at the rear of the extension wing, then
recheck both ends and tighten the two
center bolts and hex nuts.
4.13
4.13
4.15
4.15
4.16
4.16
4.14
4.14
4.14
