RT-TGP/RT-BT OWNER’S MANUAL
3
4
5

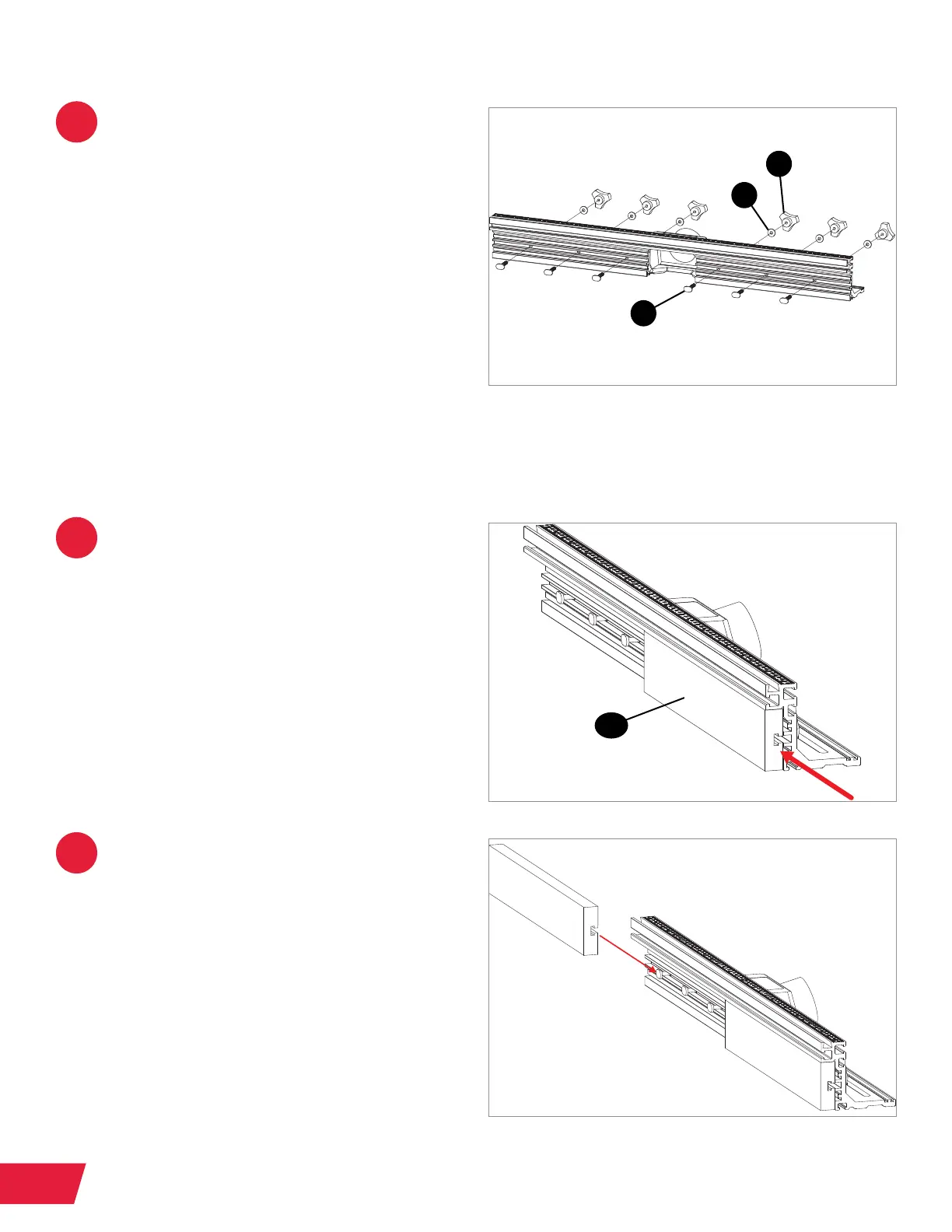

Insert a T-bolt (5.8) through one of the
six holes in the vertical portion of the
router table fence, so the head of the
T-bolt is on the front of the fence (the
side with three T-slots) and the threaded
portion of the T-bolt is on the rear of
the fence (the side with two T-slots and
the bent edge). Slide one of the eight
smaller washers (5.7) onto the end of
the T-bolt and then thread a fence face
plate lock knob (5.6) onto the T-bolt,
until the end of the T-bolt is ush with
the outer edge of the lock knob. Repeat
this process for the remaining ve holes
in the vertical portion of the router
table fence.
Slide the T-slot in the back of a router
fence face plate (5.14) onto three of the
T-bolts installed in Step 3.
Slide the other router fence face plate
onto the other three T-bolts installed in
Step 3. The two router fence face plates
should now completely cover the front
of the router fence.
5.8
5.7
5.6
5.14
