42
RT-TGP/RT-BT OWNER’S MANUAL
6
7

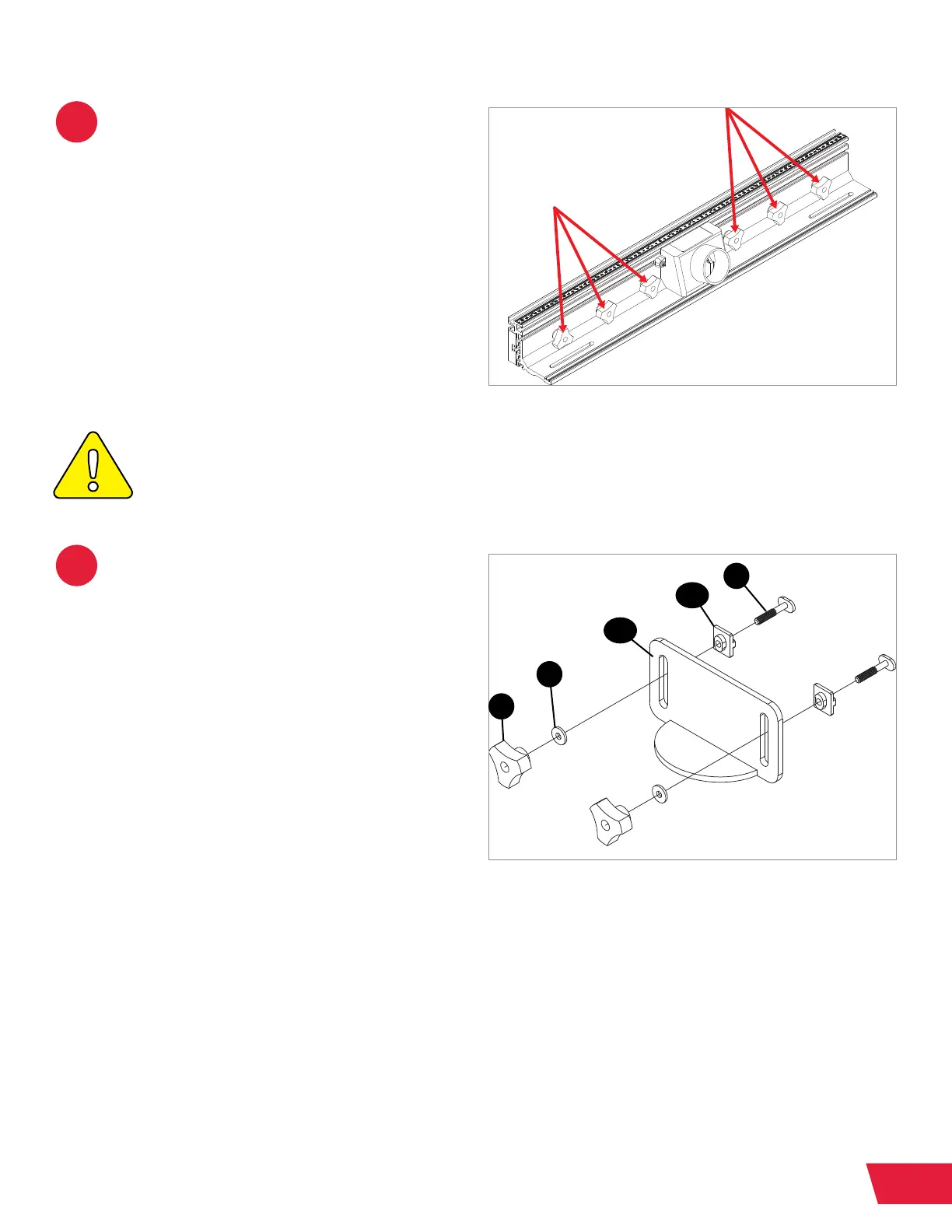

Tighten the six lock knobs to secure
the router fence face plates. To adjust
the router fence face plates, loosen the
lock knobs on the back of the fence
and slide the router fence face plates
away from each other until they do not
interfere with the router bit, then re-
tighten the lock knobs.
Insert a T-bolt (5.8) through a router
fence guard spacer (5.16), with the
square part of the spacer adjacent the
head of the T-bolt and the rounded part
of the spacer facing away from the head
of the T-bolt. Repeat this process with
another T-bolt and another router fence
guard spacer. Slide the router fence
guard (5.15) onto the two T-bolts, so the
rounded parts of the spacers extend
into the elongated vertical holes in the
router fence guard. Secure each T-bolt
with one of the two remaining smaller
washers (5.7) and a fence face plate
lock knob (5.6), but do not tighten the
lock knobs.
ALWAYS MAKE SURE THE LOCK KNOBS ARE FULLY TIGHTENED BEFORE
USING THE FENCE!
5.8
5.6
5.7
5.16
5.15
