METER HOOKUP FOR K-FRAME COMPATIBLE REGISTERS:

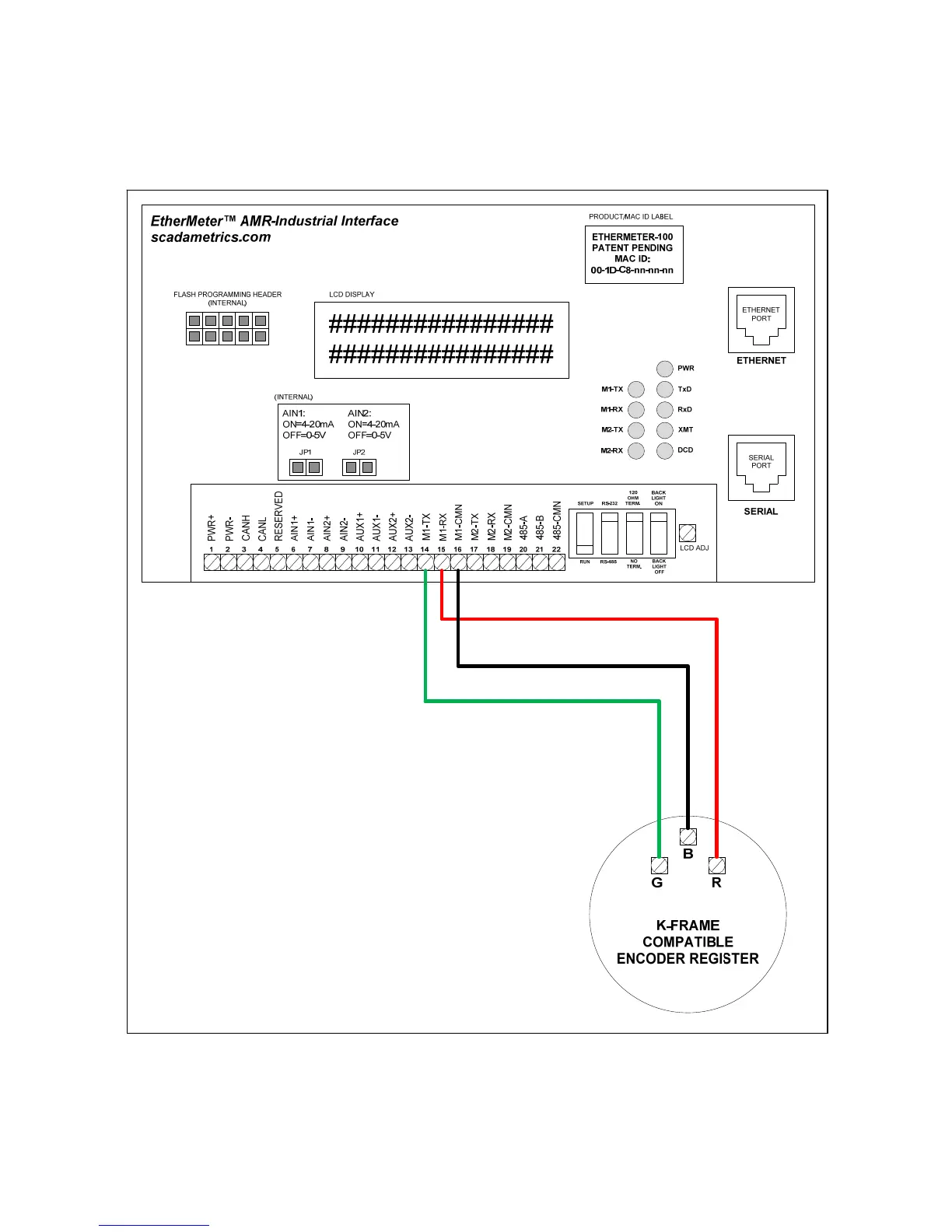

The following diagram demonstrates the hookup of a K-Frame compatible encoder register to

Meter Channel 1 of the EtherMeter. Terminals 14, 15, and 16 are used in this case. Hookup to

Meter Channel 2 will be identical, except terminals 17, 18, and 19 are used.
