5.4 Protocoles de communication
Version
Communication
interface
Protocols*
Connector
LED on front
panel
eNod4 DIN
RS485 PLC
ModBus RTU
A7
/
RS485 AUX
ModBus RTU
SCMBus
A8
/
USB
ModBus RTU
SCMBus
USB
Front panel
USB
CAN
CANopen®
A6
MS
eNod4 PRO DIN
Profibus
Profibus DP-V1
A7
NS
USB
ModBus RTU
SCMBus
USB
Front panel
USB
* See protocols description in document: eNod4 software user manual.

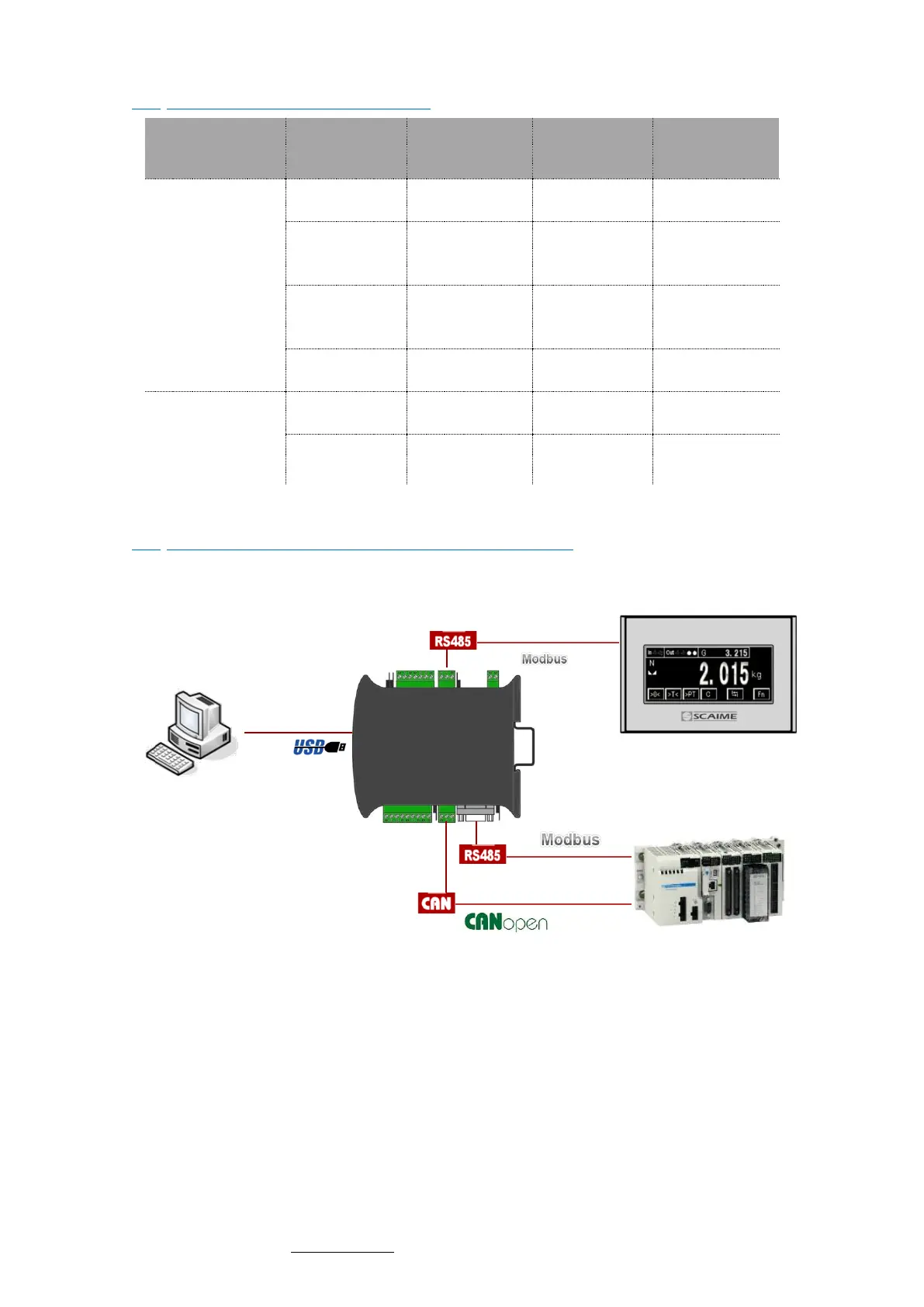

5.5 Simultaneous functioning of communications
5.5.1 Standard version
• DIN version

PC Connection

AUX
Connection

PLC Connection

eNodTouch
 PC Connection
 AUX Connection
 PLC Connection
 PROFIBUS-DPV1
 eNodTouch
