10.2.6 Measurement window
This is only possible using standard or fast SCMBus.
The request can apply to:
• gross measurement.
• net measurement.
• factory calibrated measurements.
While the input is kept at the right level, a series of measurements are transmitted at the period defined by the
‘sampling period’ setting. Only input 2 is operational if both inputs are assigned to
10.2.7 Start cycle:
See checkweigher operating mode.
10.2.8 Stop checkweigher cycle:
See checkweigher operating mode.
10.2.9 Clear checkweigher result:
See checkweigher operating mode.
10.2.10 Dynamic zero:
See checkweigher operating mode.
10.2.11 Sensor input control
The assignment of logical input to sensor input control function allows performing special procedure to diagnose load
cell sensor input. Beforehand, user must acquire reference value of the load cell input by sending 'Sensor input control
reference' specific command (e.g. after the device is calibrated).
Note: Load cell sensor input control must be realized if no process cycle is in progress.

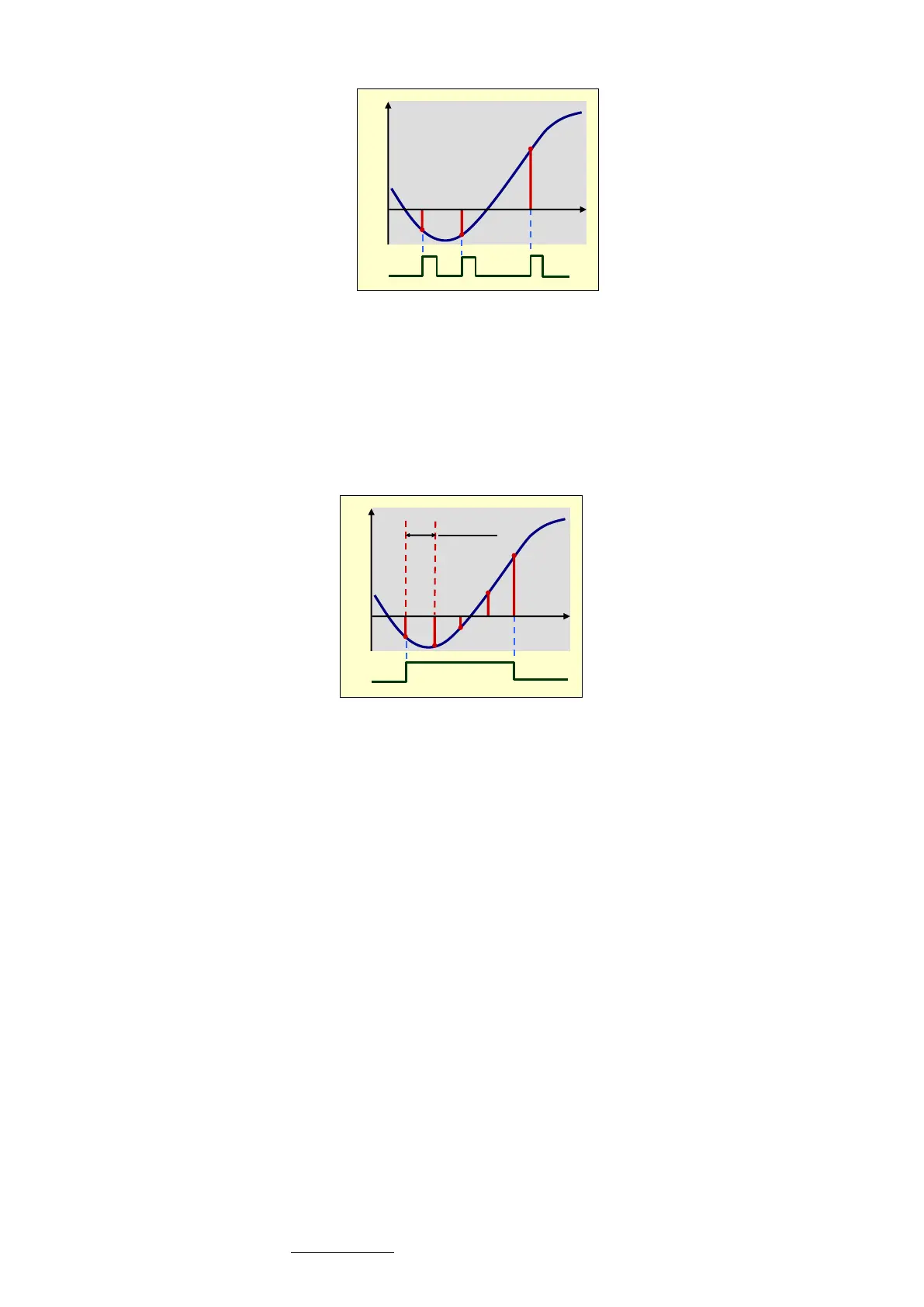

Fig. 8
