Scale House ASB6 - 8. SERIAL OUTPUT; 8.1 Output Data Format; 8.2 Printer Connection

14
8. SERIAL OUTPUT
Specifications
RS-232 output for the transmission of the weight data
ASCII code
Baud selectable from 2400 - 19200
data bits 8 – n – 1
Connector: 9 pin (female)
Pin 2: RECEPTION
Pin 3: TRANSMISSION
Pin 5: GND

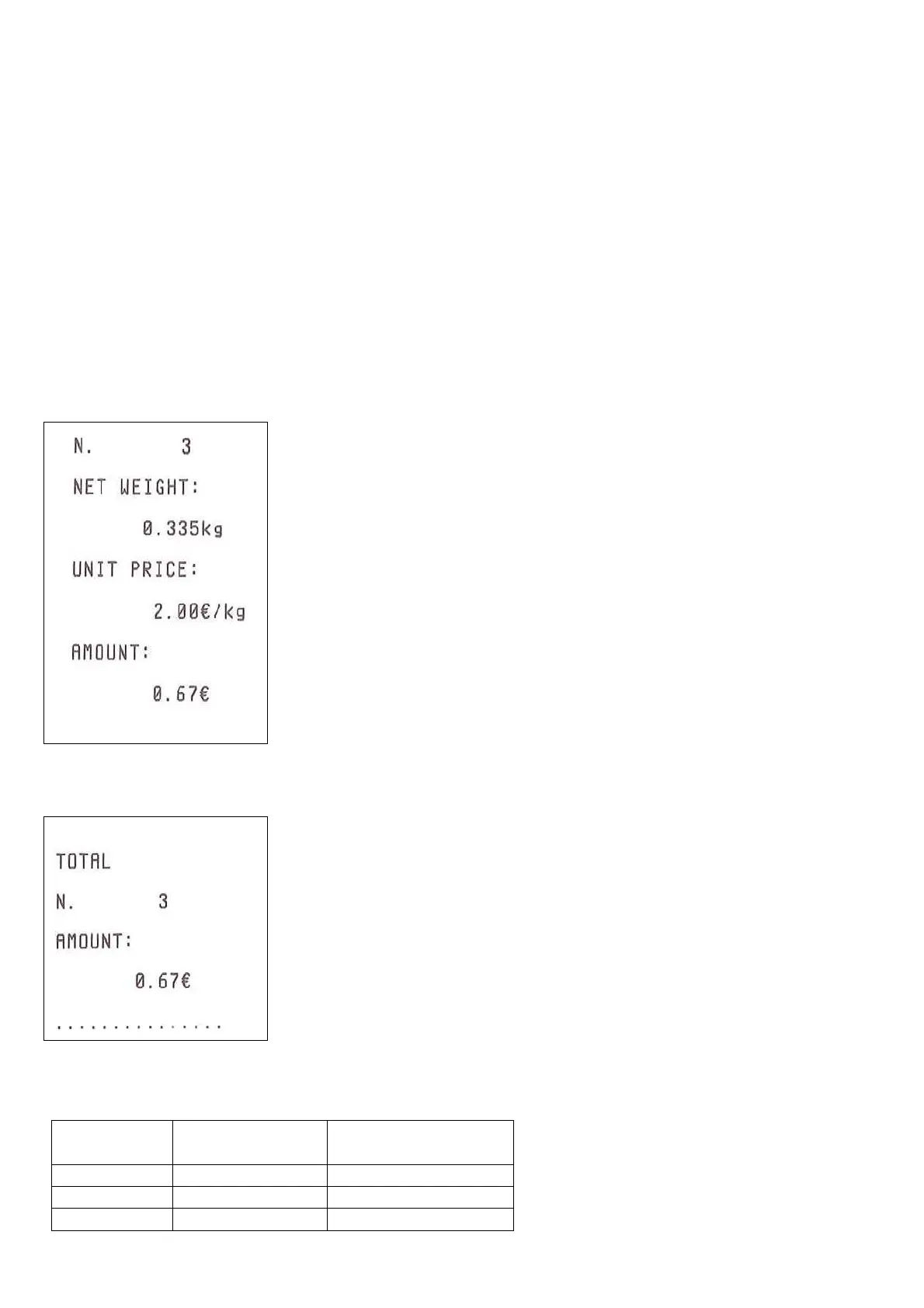

8.1 OUTPUT DATA FORMAT
In the normal weighing operations when one is accumulating the weight (see section 6.9) the data format is the following:
When the totals are recalled from the storage (see section 6.10) the data format is the following:
8.2 PRINTER CONNECTION
TPR
STANDARD
CABLE
ASB (9 Pin connector)
GND
Black
GND
CTS
Yellow
-
RX
Grey
TRANSMISSION
Progressive of totalisations
Progressive of totalisations
