Replacement of door glass:
1. Swing out the door (see under "cleaning the glass panel", point 1-4). THE DOOR IS NOT TO
BE UNLOCKED WHILE WORKING WITH IT.
2. Unscrew all visible screws (1, fig. 8) in the inner frame and remove the inner frame.
3. Remove the cracked glass.
4. Put in the new glass panel (2, fig. 8)
5. Remount the inner frame.
6. Tighten all screws and then loosen them 2-3 rounds.
7. Push the steel gasket between the glass and the outer frame
8. Push the steel gasket between the glass and the inner frame.
9. Tighten the screws.
10. Swing back the door and tighten the screw (3, fig. 8) (see under "Cleaning the glass panel"),
unlock the door and remove the distance piece.
Gaskets
The DSA 5 is equipped with ceramic gasket to ensure the tightness of the door and the glass. This
ceramic gasket is a wearing part and must be changed from time to time. Please consult your
authorized dealer in this case.

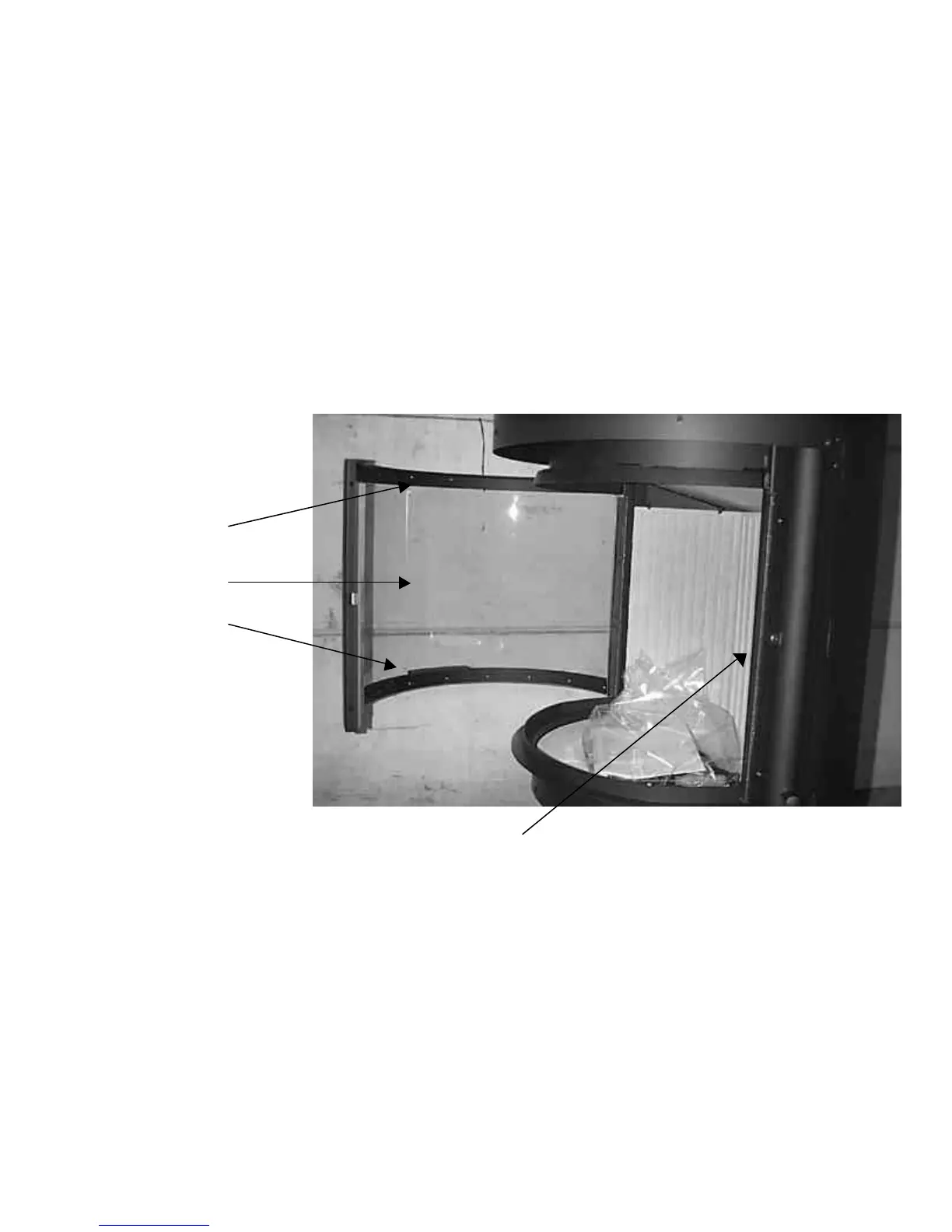

Fig. 8
