11
SPECIFICATION OF T-SOLT

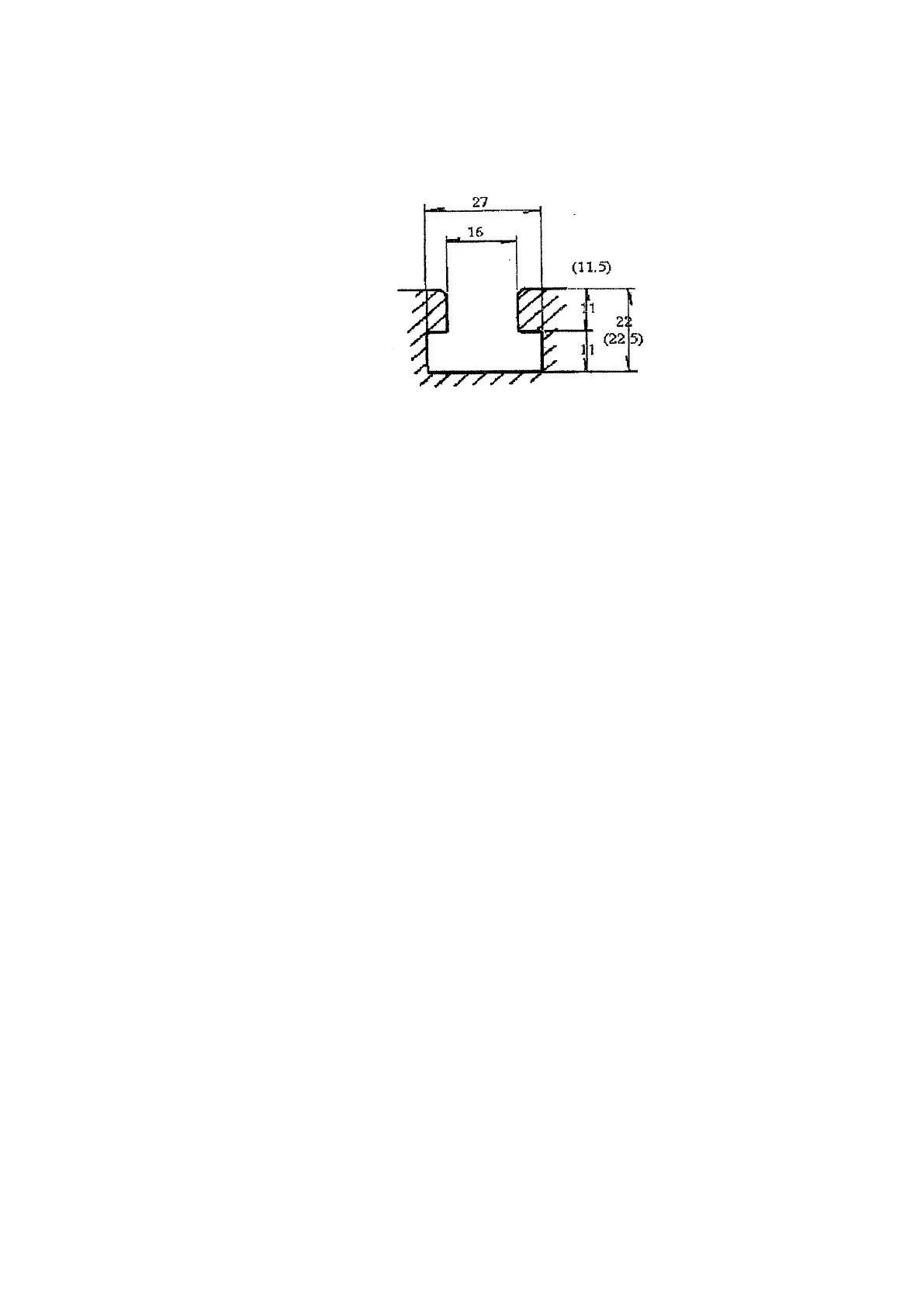

The size of T-Slot on table as Fig 6:
6. Maintenance
That's easier to keep machine in good condition or best performance by means of maintaining it
at any time then remedy it after it is out of order.
• Daily Maintenance (by operator)
1. Fill the lubricant before starting machine everyday.
2. If the temperature of spindle caused over-heating or strange noise, stop machine
immediately to cheek it for keeping accurate performance.
3. Keep work area clean; release vise, cutter, work-piece & table; switch off power
source; take chip or dust away from machine and follow instructions lubrication or
coating rust proof oil before leaving.
• Weekly Maintenance
1. Clean and coat the cross leading screw with oil.
2. Check to see if sliding surface and turning parts lack of lubricant. If the lubricant is
insufficient, fill it.
• Monthly Maintenance
1. Adjust the accurate gap of slide both on cross and longitudinal feed.
2. Lubricate bearing, worm, and worm shaft to avoid wear.
• Yearly Maintenance
1. Adjust table to horizontal position for maintenance of accuracy.
2. Check electric cord, plugs, switches at least once a year to avoid loosening or
wearing.
Cleaning & Lubricating
• Your machine has been coated with a heavy grease to protect it in shipping. This coating
should be completely removed before operating the machine. Commercial degreaser,
kerosene or similar solvent may be used to remove the grease from the machine, but
avoid getting solvent on belts or other rubber parts.
• After cleaning, coat all possible rusted surface with a light lubricant. Lubricate all points
with a medium consistency machine oil.
Changing Gear Box Oil.
Tilt the hard stock over as shown in Fig.1. Open the oil drain plug to allow the oil to drain from
the opening completely. Then lock the oil drain plug and turn the head to be upright position.
