Head Section
has a maximum weight capacity of 40 lbs. (18 kgs.).
•
Leg Transfer Board
(73002) is intended only for the support of a patient’s
legs and has a maximum distributed weight capacity of 150 lbs. (68 kgs.).
•
55” Image Amplification (I.A.) Board
(73004) has a maximum distributed
weight capacity of 400 lbs. (181 kgs.).

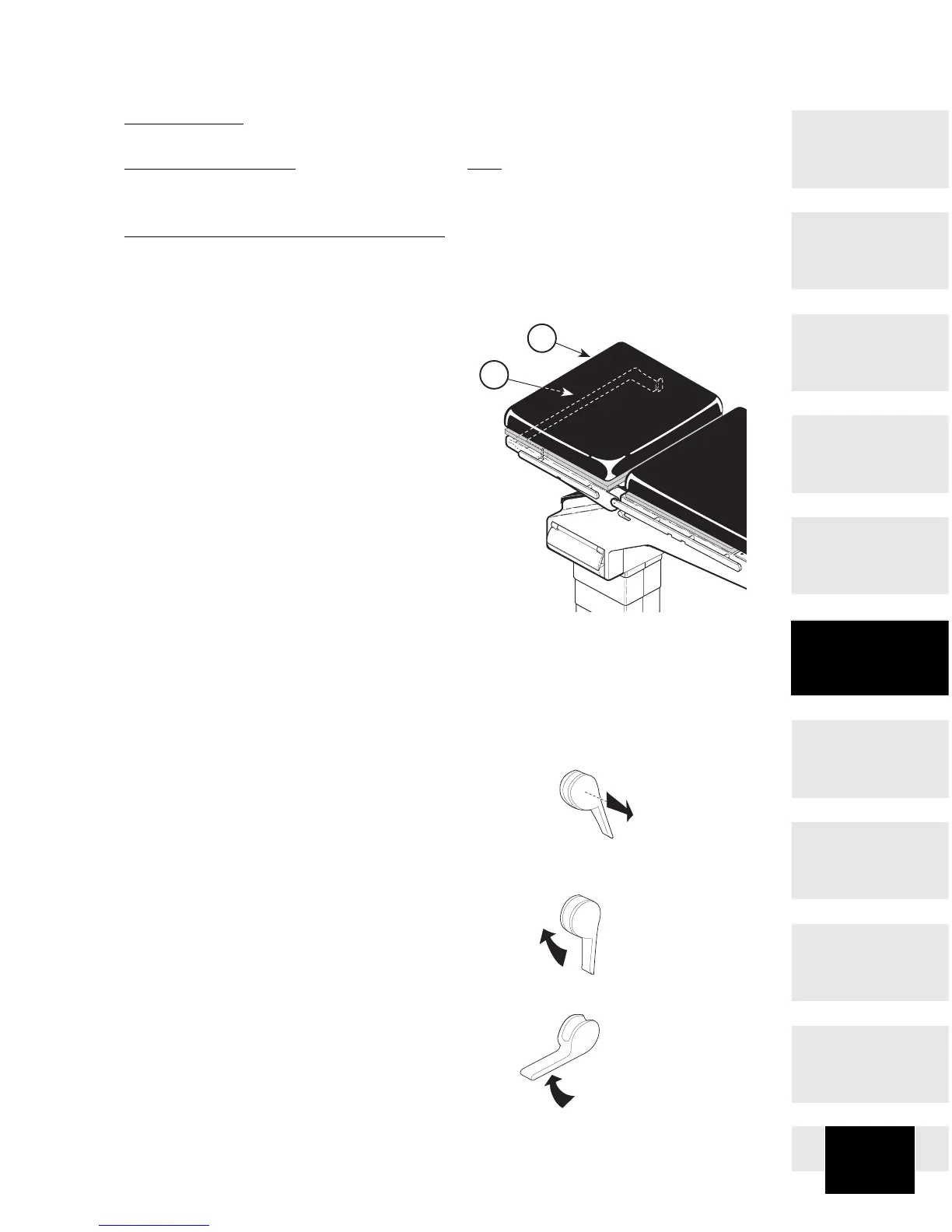

Head Section
The Head Section (1) is inserted into two
sockets located at column end of table
(Refer to “Installing Table Top Sections”).
The Head Section can be placed in infi-
nite positions by depressing handle (2) at
end of Head Section and manually raising
or lowering Head Section. Releasing
handle (2) locks Head Section (1) in de-
sired position. Two gas spring cylinders
on each side of Head Section assist in
raising and lowering it.
Installing Table Top Sec-
tions
The latch handles, located on both sides of table top at column end, can be
placed in three positions:
Unlatched Position (1)
This position allows insertion or removal of a ta-
ble section. Pull outward on latch handle, rotate
handle until it stops, and insert or remove the ta-
ble section.
Auto Capture or Latched Position (2)
Rotate the latch handle until it latches the table
section in position. Pull outward on the table
section to assure it is latched in position.
Locked Position (3)
Rotate the latch handle to lock it tightly in place.
CA800500
1
2
CA800400
Operation
