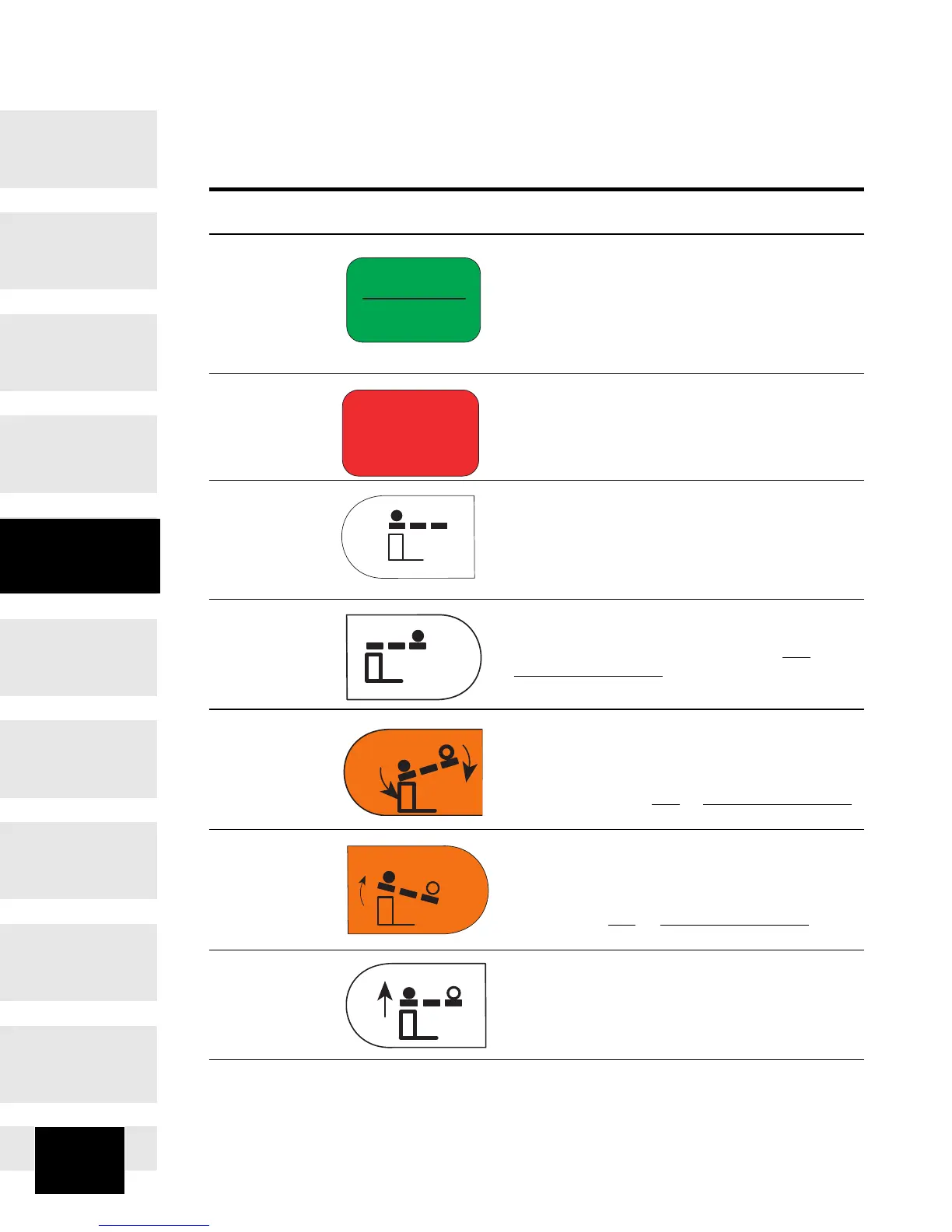

Ref. Control Function
1
DISPLAY Electronically displays operational messages,
status messages and error codes
2 Main On / Off power switch
Automatically locks table to floor
Displays position of table, NORMAL or
REVERSE on hand control display.
Displays condition of batteries, LOW,
MEDIUM or FULL
Stays activated for 10 seconds after pressed.
3 DISABLE button immobilizes all position con-
trol buttons. OMI recommends that the
operator, after positioning table, manually
depress DISABLE switch to prevent acciden-
tal activation of a function during a procedure.
4 Configures table in Normal (head over col-
umn) position.
5 Configures table in Reverse (head at opposite
end from column) position.
Reverse position is not available on foot
or
emergency override
controls.
6 Trendelenburg position. Works in conjunction
with Normal and Reverse Position buttons on
hand control. Lowers end of the table where
patient’s head is positioned. Reverse position
is not available on foot
or emergency override
controls.
7 Reverse Trendelenburg position. Works in
conjunction with Normal and Reverse Position
buttons. Raises end of table where patient’s
head is positioned. Reverse position is not
available on foot
or emergency override con-
trols.
8 Raises table surface.
ENABLE
LOCK
DISABLE
NORMAL
POSITION
REVERSE
POSITION
TREND
REV TREND
HEIGHT UP
Controls &
Indicators
