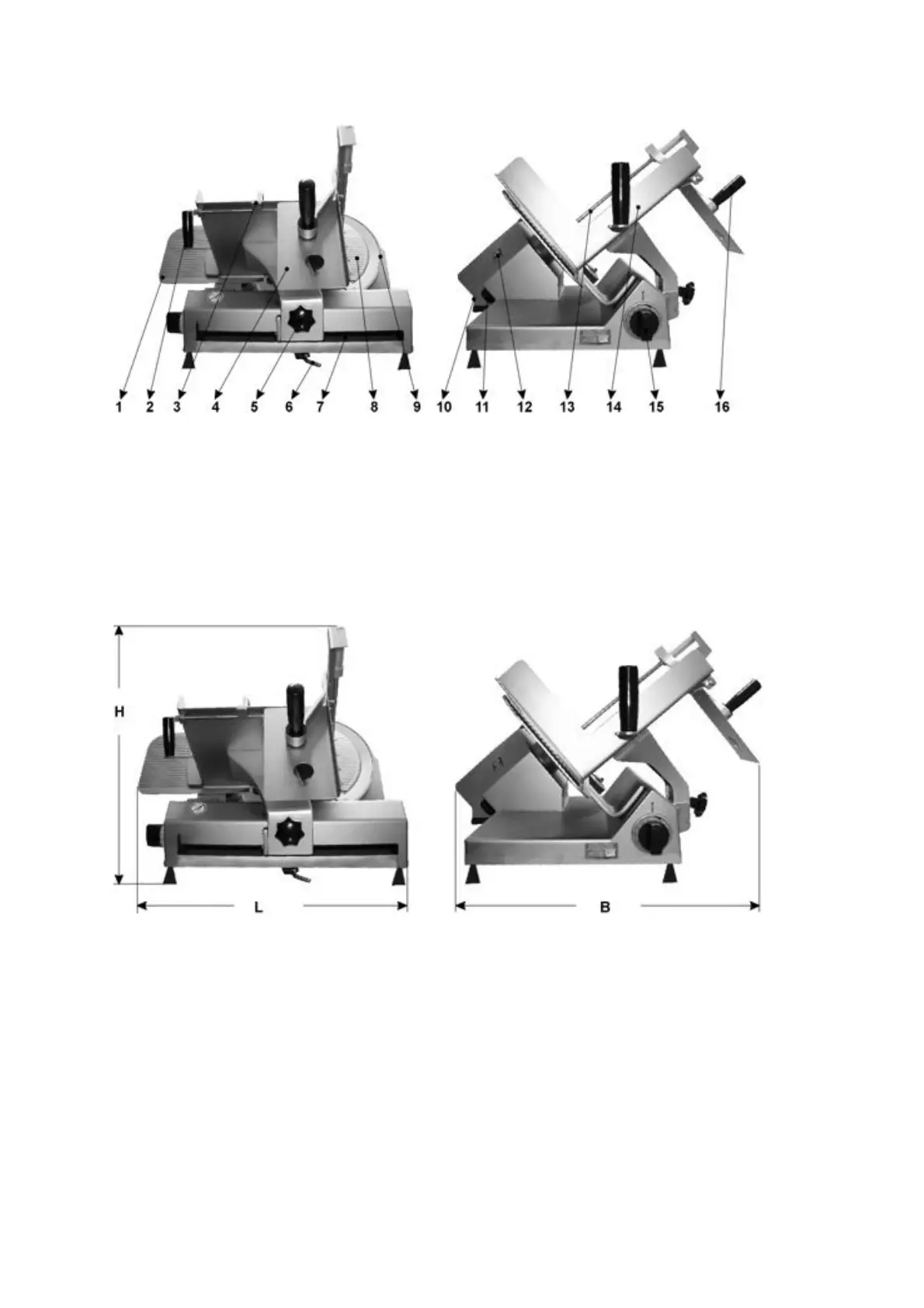

1.6. General plan of the machine
1 thickness plate 9 fixed ring
2 handle 10 name plate
3 adjusting bar 11 star knob of fixing screw for blade guard
4 end piece holder 12 keyboard with main switch on/off
5 star knob 13 guiding axle end piece holder
6 lever automatic / manual 14 carriage
7 guiding axle carriage 15 thickness knob
8 blade guard 16 handle of end piece holder
1.7. Dimensions of the machine and technical data
overall dimensions l x w x h 720 x 790 x 620 mm
counter space required 550 x 420 mm
max. cutting size G 330 A app. 320 x 220 mm
with G 350 A app. 320 x 235 mm
thickness of slices 0-25 mm (infinitely variable)
Manufacturer: Hermann Scharfen GmbH & Co. Maschinenfabrik KG
Ruhrstr. 76-76a, D - 58452 Witten, Tel. +49 – 2302 – 282770
www.scharfen.de, mail@scharfen.de
diameter of blade 330 mm (G330D)
diameter of blade 350 mm (G350D)
sound level < 70 db(A)
weight approximately 66 kg
voltage, cycles, power,
year of production see rating plate
