Schlage FE599 - Keypad and Baseplate Assembly; Install the Keypad; Adjust Hands-free Post

8

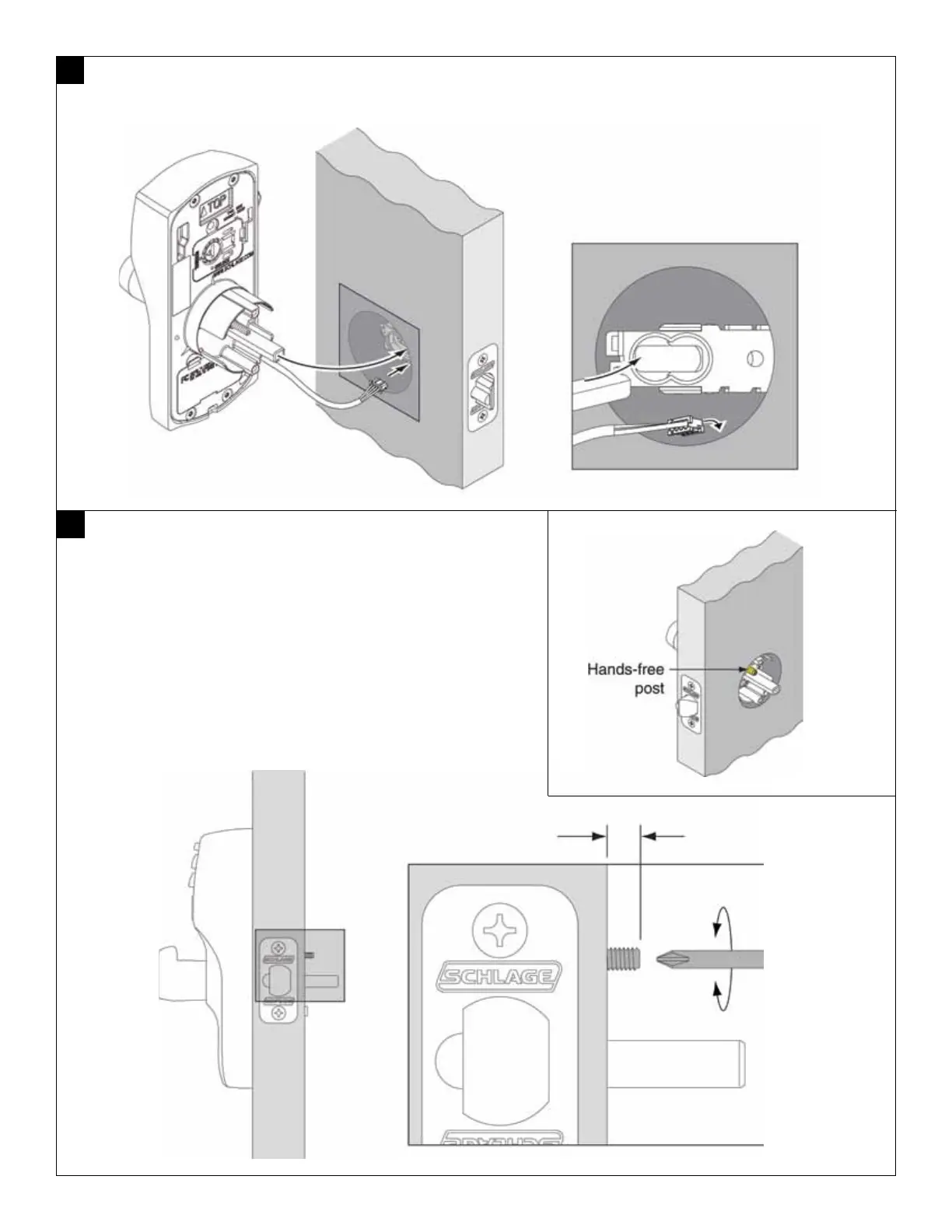

Adjust Hands-free Post
The hands-free post is the threaded stud on back of lock.
It’s purpose (in step 10) is to attach the lock and baseplate
together so that the lock will hold itself on the door.
Hands free post may need to be adjusted with a screwdriver to
the dimensions shown below.
Z\,”- Z\v”
(3 mm - 6 mm)
Hold keypad
against door
Adjust with
screwdriver so
screw extends
beyond door
edge.
7
Install the Keypad
Feed the cable under latch assembly as shown below. Then slide the tailpiece through the hole as shown below.
