Schlage FE599 - Cable Routing and Baseplate Mounting; Feed Cable through Baseplate; Slide Baseplate onto Door over Hands-free post

Schlage FE599
11 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
9
10

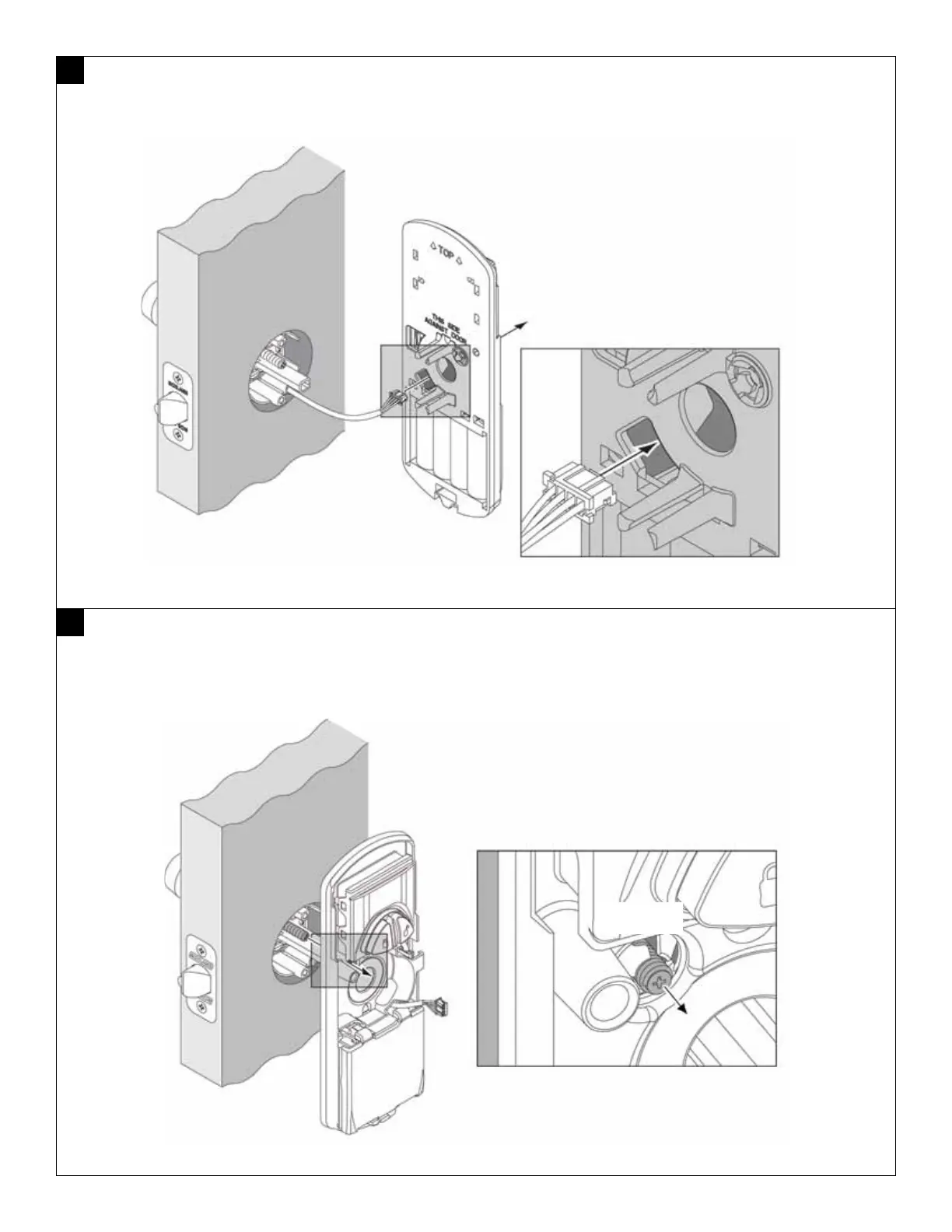

Slide Baseplate onto Door over Hands-free post
Hands-free post should lock plate against door surface. If hands-free post does not lock plate onto door, see
step 8 for adjustment.
Hands-free
post
Feed Cable through Baseplate
Feed the cable through the hole as shown below. DO NOT connect the cable at this point.
