ELECTRICAL SPECIFICATIONS
Model
Amps (12VDC)
Per Lock
Amps (24VDC)
Per Lock
Holding Force
(lbs) Per Coil
M420 0.750 0.380 500
M450 0.750 0.380 1000
M490 0.650 0.350 1500
LOCK INSTALLATION

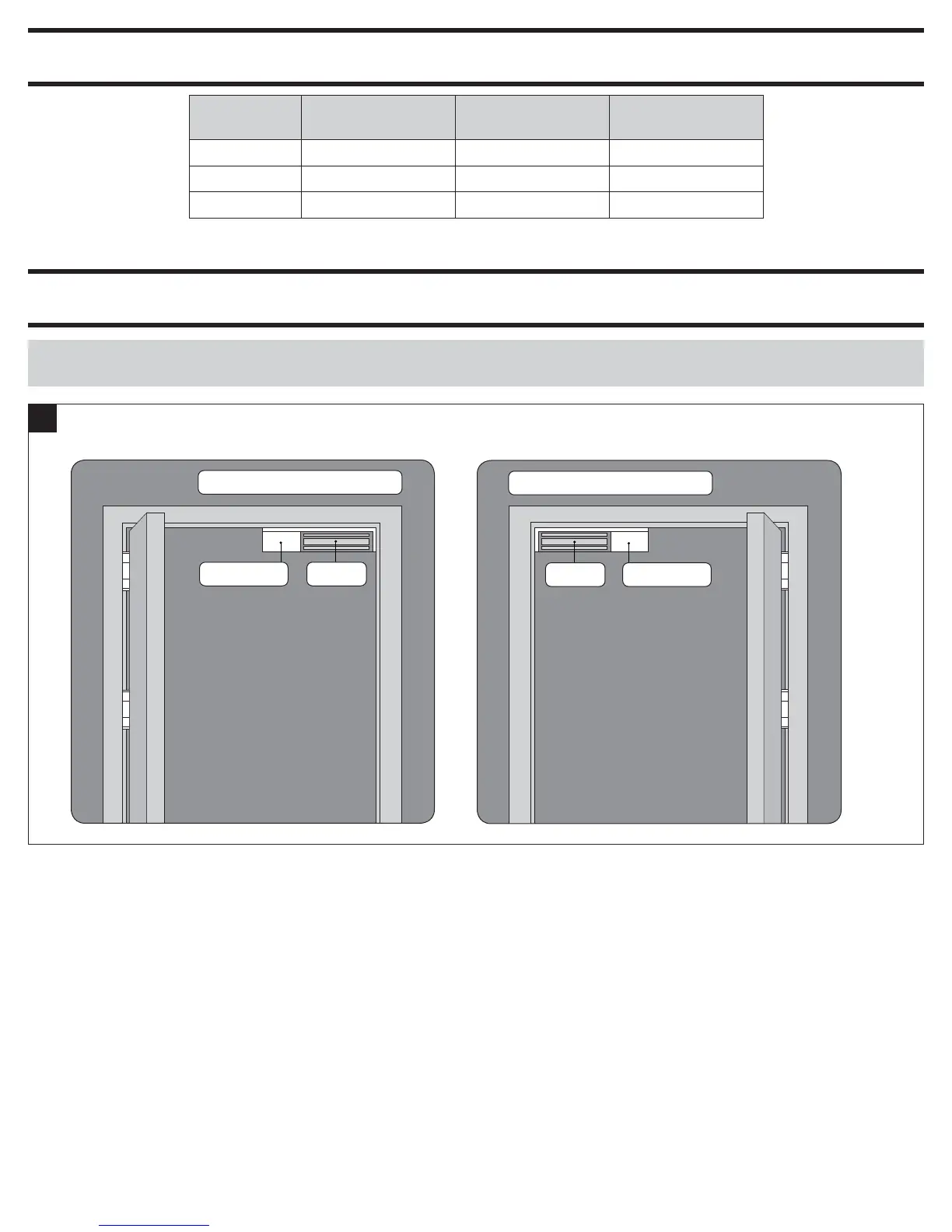

1 PREPARE FOR INSTALLATION
1a
Determine Proper Magnet Orientation
• Magnet should be placed opposite of door hinges.
Magnet
Wiring Cover
LHR Door - Shown from Exterior
Magnet
Wiring Cover
RHR Door - Shown from Exterior
