Schlage M420 - Mounting and Attachment; Armature Attachment to Door; Mounting Bracket Installation

5

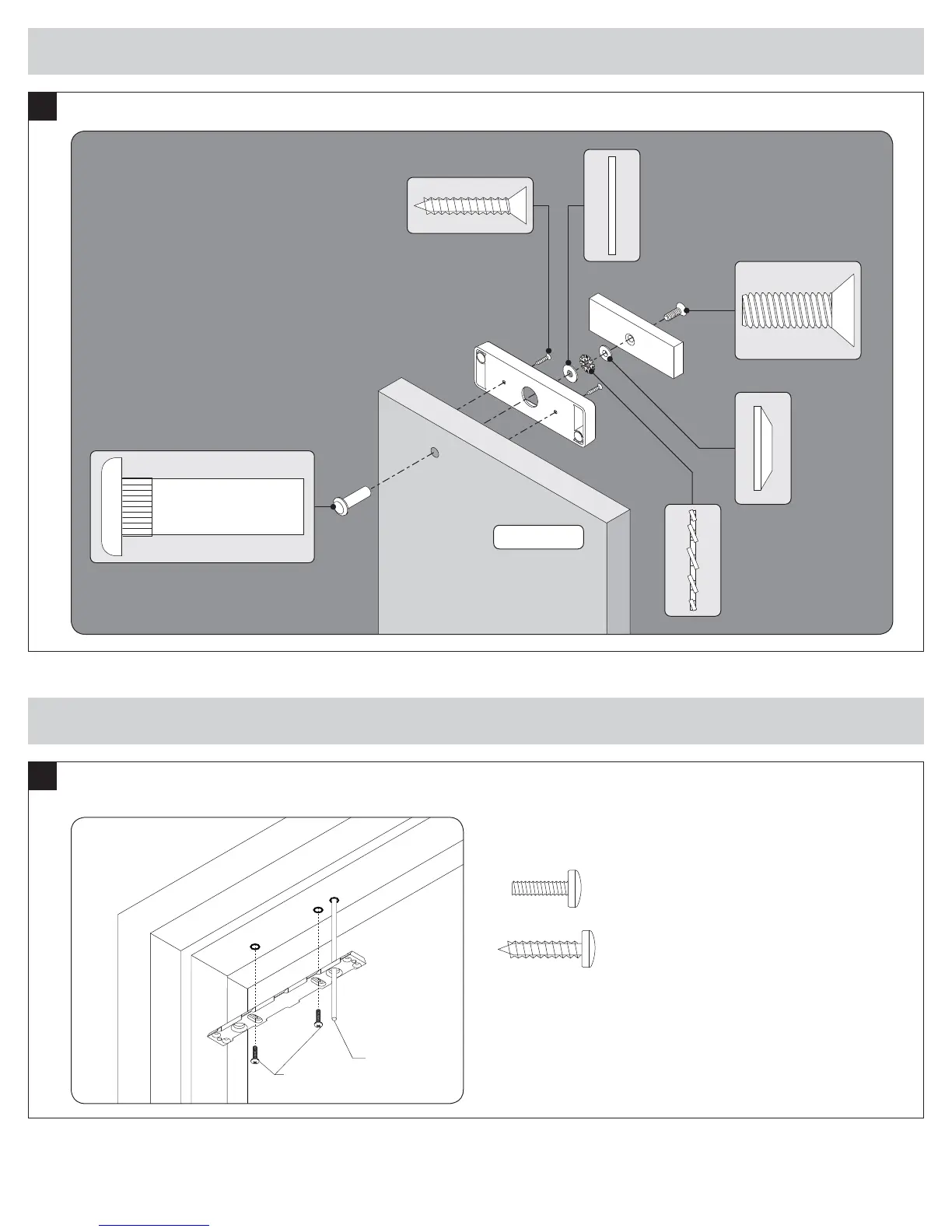

4 ATTACH ARMATURE TO DOOR
4a
Install as Shown
Outside
2x
5 INSTALL MOUNTING BRACKET INTO FRAME
5a
Attach Mounting Bracket Temporarily
• Install two middle screws into slots and partially tighten.
Partially
tighten
Pull wires
OUTSIDE
Actual Size
Reinforced
Metal
Sheet
Metal
