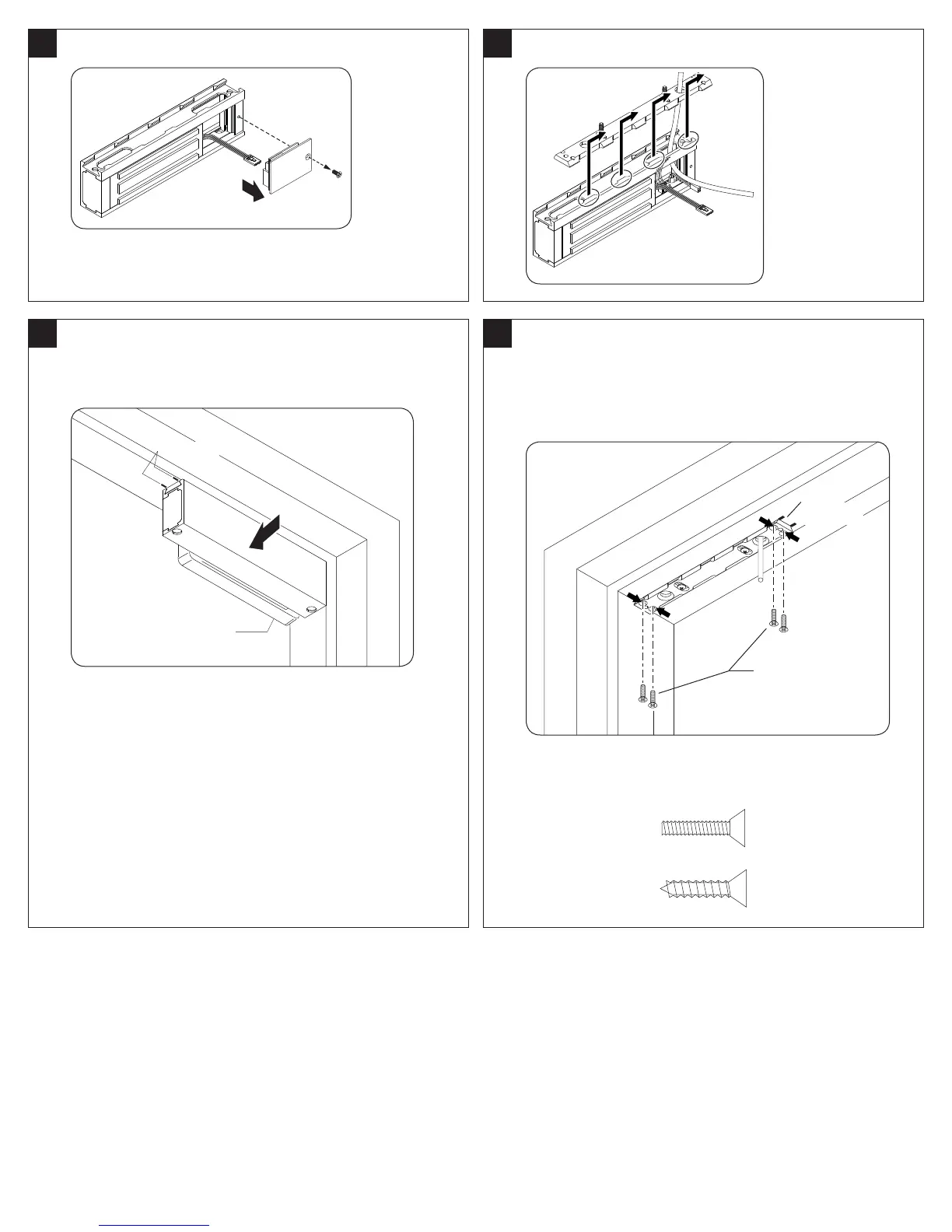

Schlage M420 - Magnet and Bracket Final Attachment

6
5b
Remove Wiring Cover
5c
Slide Magnet onto Bracket
OUTSIDE
5d
Align Magnet to Armature
• Close door.
• Press magnet to fully engage with armature.
• Mark bracket location.
Press magnet to armature
INSIDE
Mark here
5e
Fully Attach Bracket
• Remove magnet from bracket.
• Check bracket alignment with marks.
• Fully tighten two screws in slotted holes.
• Drill four (4) remaining holes.
• Fully tighten all screws.
Fully tighten
all screws
Drill four (4) holes
Use 10-24 tap if
metal reinforced
Check
alignment
OUTSIDE
Actual Size
Reinforced
Metal
Sheet
Metal
