schmersal PROTECT-PSC - Page 95

System description
3
Instruction Manual PROTECT-PSC
V 2.6R01 / 04.19
3–63
3.12.3 PSC-S-IN-LC
Technical data
Position
Description
Name
PSC-S-IN-LC
Operating voltage/current
24VDC+/-10% /62mA
Fusing
Internal fuse 3.2A
Number of safety inputs
8x2 non-floating
Input resistance
approx. 4.7 kΩ
Input current
5mA
High/Low level
H: >18V / >3,5mA
L: <4,7V / <0,5mA
Minimum pulse duration for
possible detection
1.4ms (input filter 0.7ms)
Minimum pulse duration for
safe detection
15ms
Connection plug
36-pin plug MORIMATSU M820A-09-xx
36-pin plug EMUDEN T7509-36-xx
Dimensions / weight
30 x 100 x 80 mm / (W/H/D) / 190g
T
T
a
a
b
b
l
l
e
e
3
3
-
-
2
2
8
8
T
T
e
e
c
c
h
h
n
n
i
i
c
c
a
a
l
l
d
d
a
a
t
t
a
a
P
P
S
S
C
C
-
-
S
S
-
-
I
I
N
N
-
-
L
L
C
C

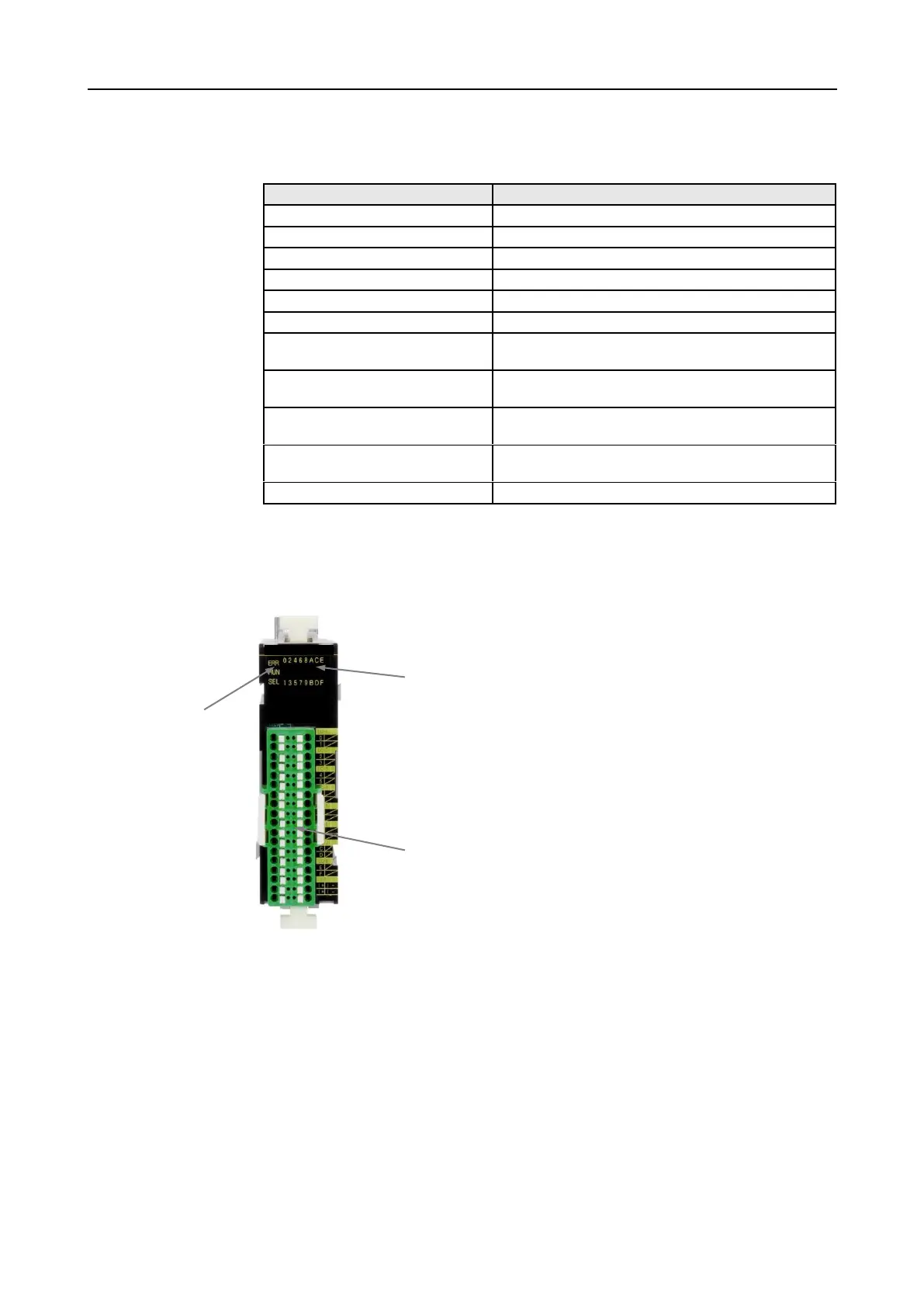

Housing description
F
F
i
i
g
g
u
u
r
r
e
e
3
3
-
-
3
3
4
4
P
P
S
S
C
C
-
-
S
S
-
-
I
I
N
N
-
-
L
L
C
C



 StatusLED
ERR = on: error / alarm
off: operation
RUN = lights up: user program active
off: user program inactive
SEL = Always off
 Status LED
00h - 0Fh = status of I/O
 Terminal
00h - 0Fh = connection sensor / actuator
I+ = power supply ( 24VDC)
I- = power supply (0VDC)
