11
3.2 Operating and display elements

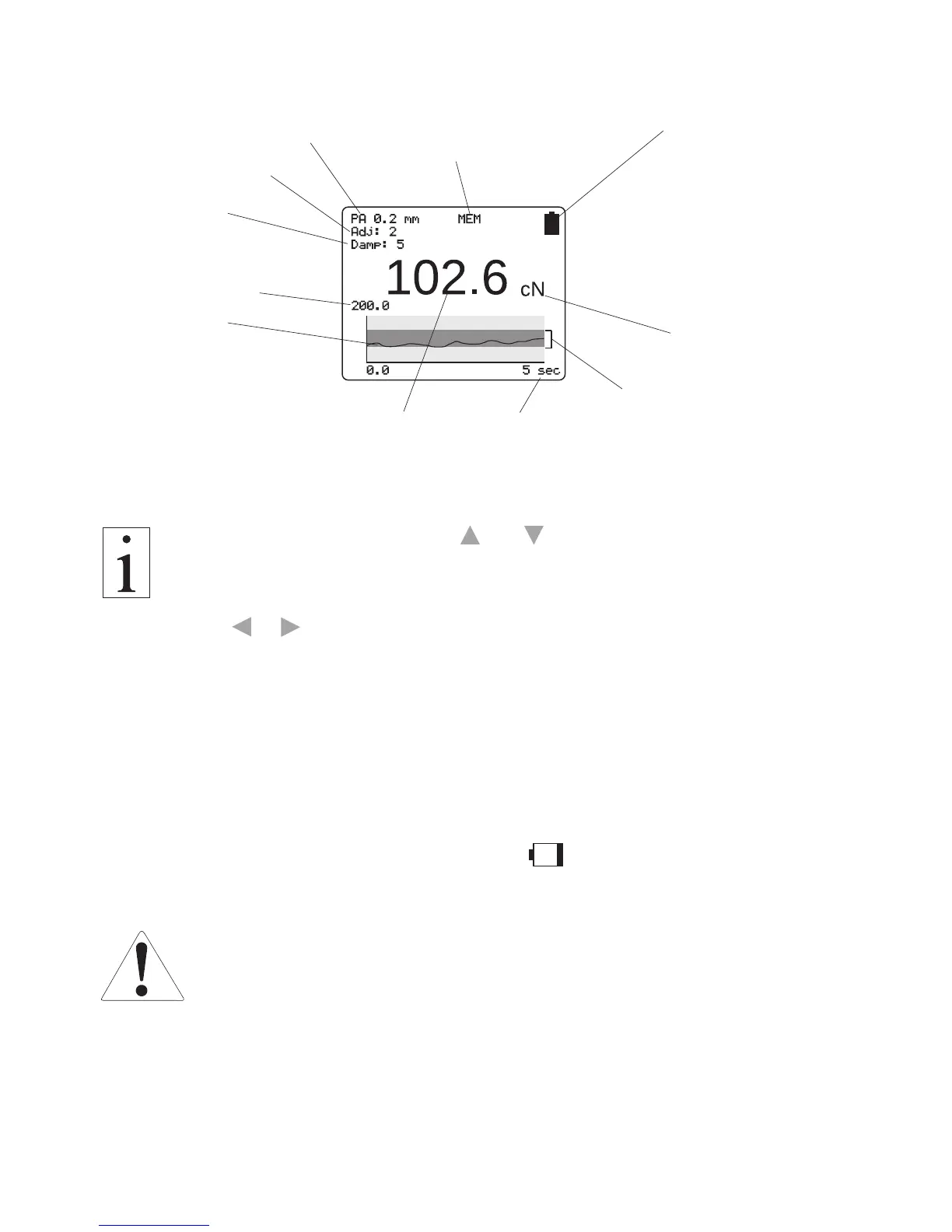

Graphic display
The Y-axis can be scaled with the
and buttons.
3 Scalings: total measuring range, set limits range plus approx. 1/3 of MAX.-alarm
value and minus approx. 1/3 of MIN.-alarm value, if limit values are entered and
the damping is not activated.
With the or button the X-axis can be scaled. The setting range is 2 to
60 sec.
The scaling can also be changed during the measurement, whereby values alrea-
dy displayed are deleted when the X-axis is changed.
Damping
Measured values
as graph
Tension range
Data stored in the memory
Battery status indicator
Measurement unit
Measured
values
as graph
fig. 3.2e
Info on material
Cal. adjustment
Readings
between the
alarm values
length of the
time axis
3.3 Setup
The tension meter is delivered with a built-in rechargeable LiPo battery, which has been
charged at the factory. The tension meter can only be switched on if the battery is still
working, i.e. if the battery has enough charge. If the instrument does not power up or if
the battery level indicator shows a low charge
after power-up (Chapter 3.3.2), the
battery needs to be recharged.
To ensure maximum battery life, avoid discharging it completely or charging
it frequently for short periods. The battery should not be stored for a exten-
ded period of time when empty. After a maximum storage period of one year,
the battery has to be recharged.
