Schmidt ET Series User Manual

24

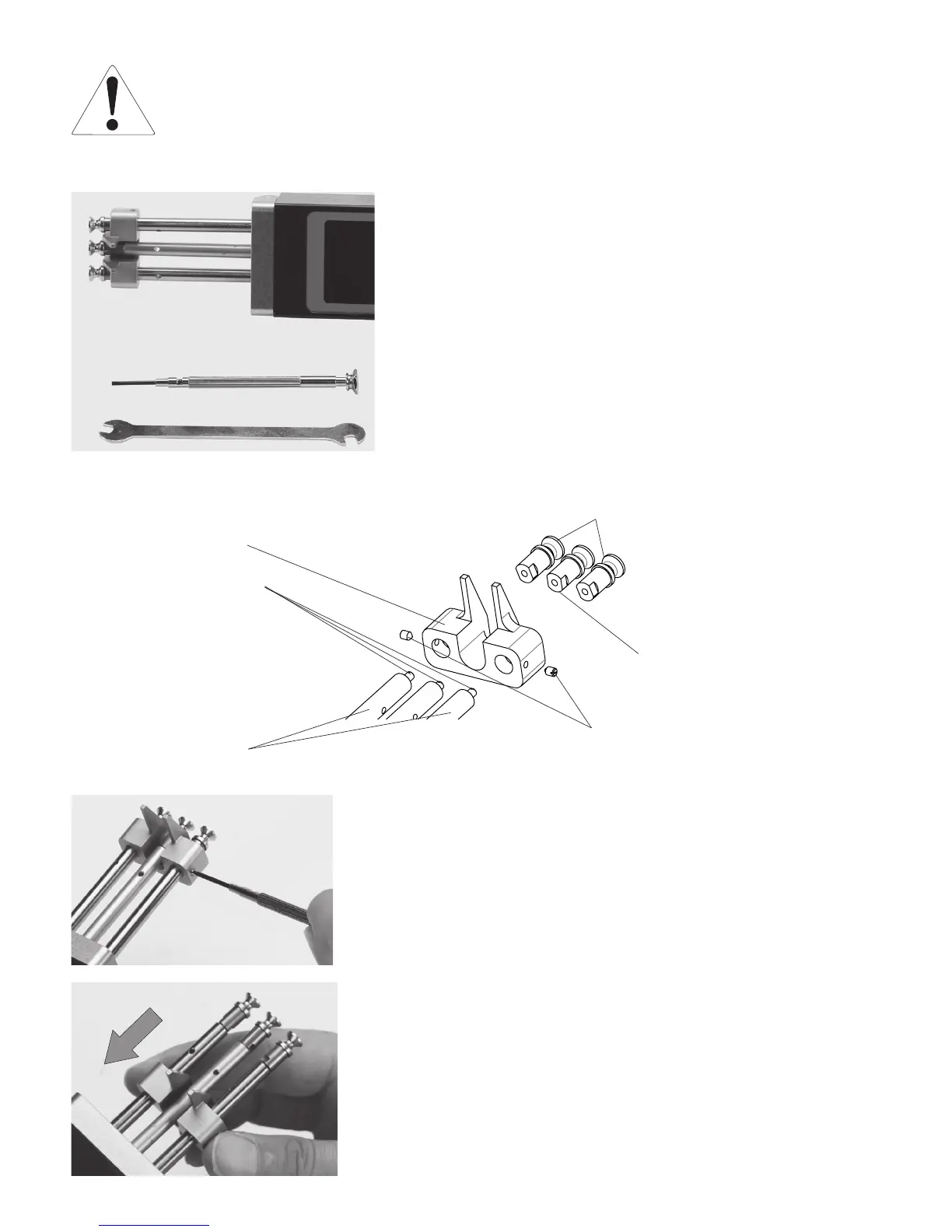

4.2 Replacing the Rollers/Ceramic Pins
To remove the filament guide:
Required tools:
Screwdriver with 1.5 mm blade width
Open end wrench with 4 mm jaw width
fig. 5.2a
- Loosen the grub screws with
the supplied screwdriver
(1.5 mm blade width).
fig. 5.2c
- Slide the filament guide
down the Roller shafts in the
direction of the arrow.
fig. 5.2d
Replacing rollers by ceramic pins or ceramic pins by rollers can only be
performed at the manufacturer‘s facility.
fig. 5.2b
Guide rollers (2x)
Roller shafts (2x)
Filament guide
Grub screws (2x)
Measuring roller
Setscrew (3x)
