Overview|Buttons and LED for transmission equipment (main detectors)
14 Operating panel Integral MAP|User manual B-HB-0133EN
The Test Mode
m
LED lights up, if at least one system element is switched into test
mode (revision mode).
The Fire protection equipment
n
LED (top) lights up, if an item of fire protection
equipment has been triggered and controlled. The Fire protection equipment
n
LED
(bottom) lights up, if an item of fire protection equipment has a fault.
The Call Service
o
LED lights up, if maintenance work on the control panel is required
to be carried out urgently. Call service department/customer service immediately
(Chapter Warnings list, Page20).

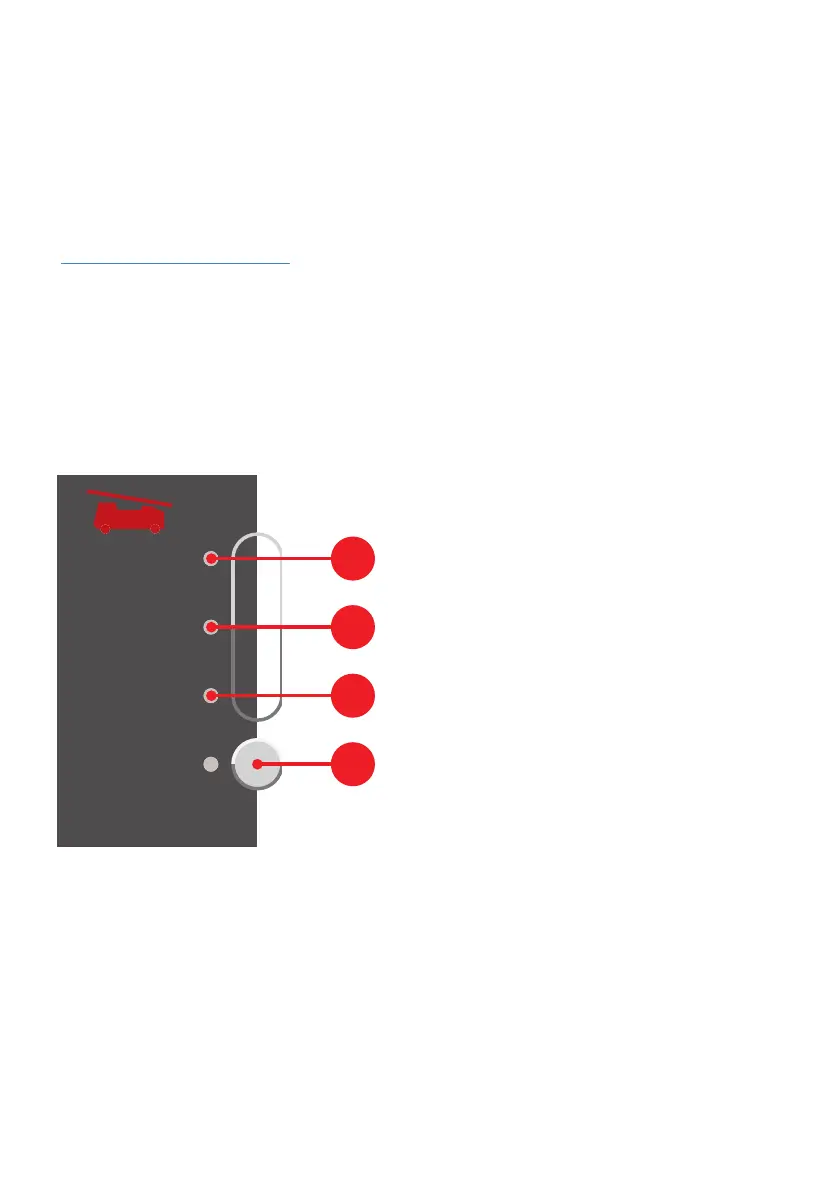

3.5 Buttons and LED for transmission
equipment (main detectors)
|Buttons and LED for transmission equipment (main detectors)
The transmission equipment (in accordance with EN 54-1) is responsible for producing a
connection between the fire alarm system and the alarm receiver unit of a location offer-
ing assistance. Generally, there is a main detector, via which the fire alarm system is con-
nected to the fire brigade or a security service by means of a dedicated line.
Actuated
Fault
Disable/Enable
Call Fire Brigade
The Actuated
F
LED flashes, if the transmission equipment is activated, i.e. if a location
offering assistance has already been called.
The Fault
G
LED flashes, if there a fault in the transmission equipment’s controller.
The Call Fire Brigade
H
LED lights up, if the fire brigade can not be contacted in the
event of an alarm (no transmission system is activated, or the system is faulty or dis-
abled).
Pressing the button Disable/Enable
I
turns the transmission equipment’s controller on/
off alternately. The Disable/Enable
l
LED next to the button lights up, if the transmis-
sion equipment is disabled.
