Schrack Seconet Integral MAP - Acoustic Signals; Buttons and LEDs During Alarm

Overview|Acoustic signals
8 Operating panel Integral MAP|User manual B-HB-0133EN
3.1 Acoustic signals
|Acoustic signals
Every Integral MAP uses five different acoustic modes:
Alarm signal 100 ms, 3 kHz – 100 ms, silence
Fault signal 800 Hz continuous tone
Signal of acknowledgement
time
140 ms, 800 Hz – 140 ms, silence
Signal of intervention period 4 × (60 ms, 800 Hz – 60 ms, silence) – 400 ms, silence
Indication test 300 ms, 3 kHz – 300 ms, 800 Hz

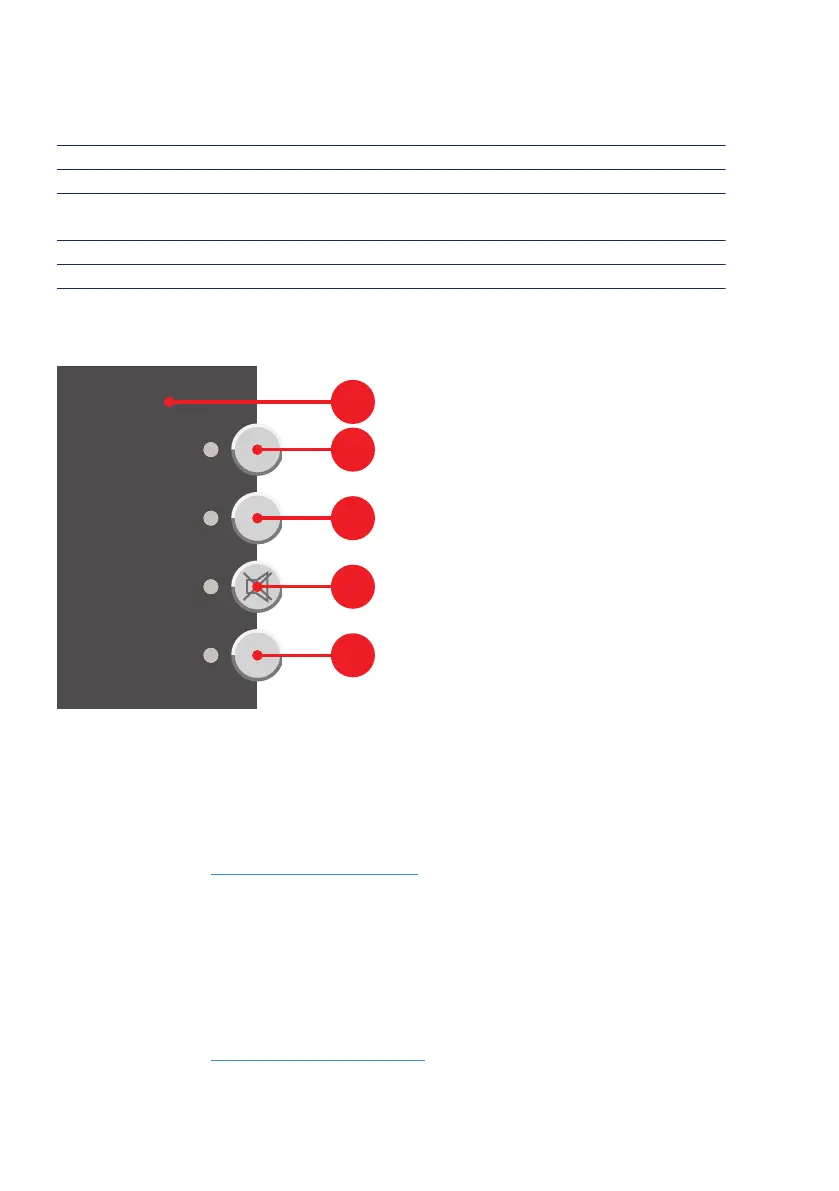

3.2 Buttons and LED in the event of an alarm
|Buttons and LED in the event of an alarm
FIRE
Delay
Intervention
Buzzer silenced
Reset Alarm/
System
1
2
3
4
5
3.2.1 Fire alarm
A fire alarm is indicated visually and acoustically: The FIRE
A
indication flashes, the
alarm signal sounds and the detector zone, detector number and the number of alarms
that have been received are displayed on the operating panel display.
Further Information: Chapter Fire alarm, Page16
3.2.2 Delay layer
(Depends on programming)
Pressing the button Delay
B
activates or deactivates the delay layer function. If a delay
layer is activated (day/presence programme), the LED lights up. If all delay layer are deac-
tivated (night/absence programme), the LED is off.
Further Information: Chapter Delay layer, Page16
