4 Assembly
4.1 Reduction of stroke
The rod-side reduction of stroke is built in at the factory. Re-
equipping from the rod-side to the piston-side reduction of stroke
can be done at the factory.

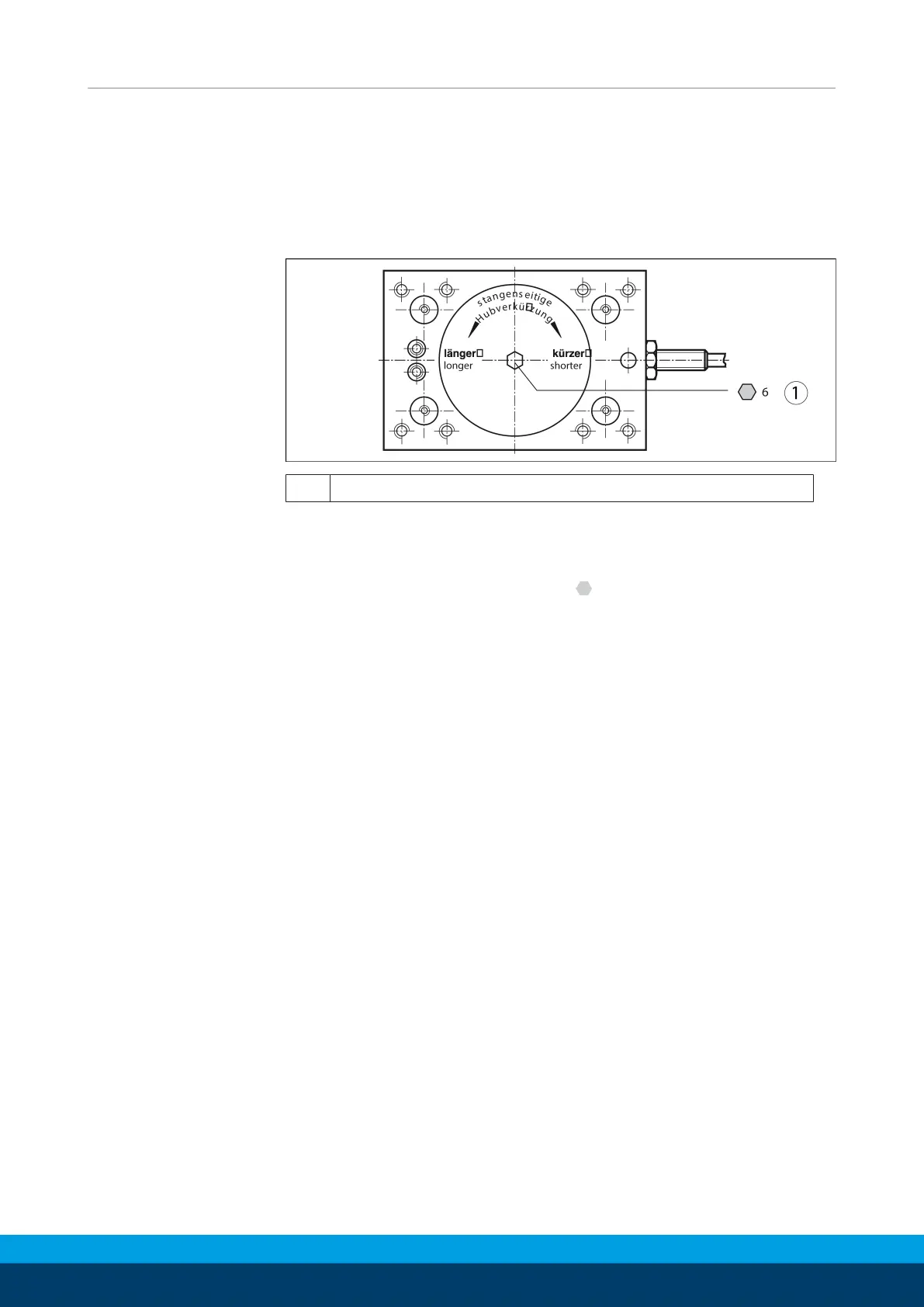

1 for reduction of stroke
Adjusting the rod-side reduction of stroke:
Ø Pressurize the »Up« connection with 6 bar air pressure.
Ø Using a hexagon socket wrench ( 6) turn the base of the linear
unit in the direction of:
- »Shorter« (torque approx. 12 Nm)
- »Longer« (torque 6 Nm)
until the desired stroke adjustment has been reached. The
adjustment is self-securing.
