4.3 Connections
4.3.1 Mounting the linear unit
WARNING
Do not reach between the lifting plate and the housing when
doing assembly work, connecting, adjusting or testing.
Base area
Base area

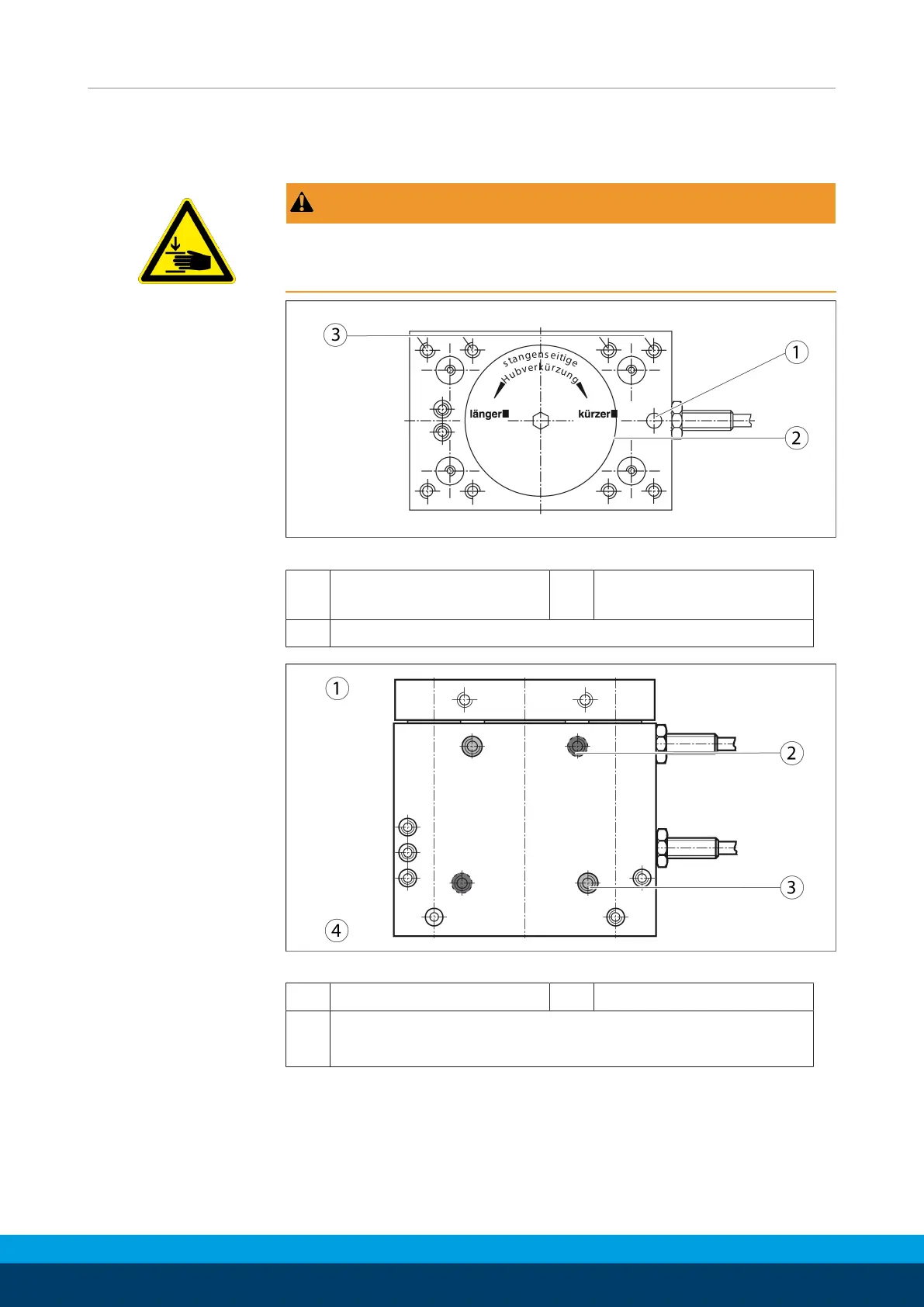

1 1x fixing bore Ø6H7 for
cylindrical pin Ø6m6 x 16
3 8x threaded holes M6 x
14 mm
2 1x centering hole Ø60H7
Lateral surface
Lateral surface
1 front 4 rear
2 / 3 4x threaded holes M6 x 14 mm
2x fixing bores Ø8H12 for clamping sleeve Ø8 x 12
