SCHUNK KHM 40 - Air Connection

Assembly
02.00 | KHM | Assembly and Operating Manual | en | 389171
21
4.3.2 Air connection

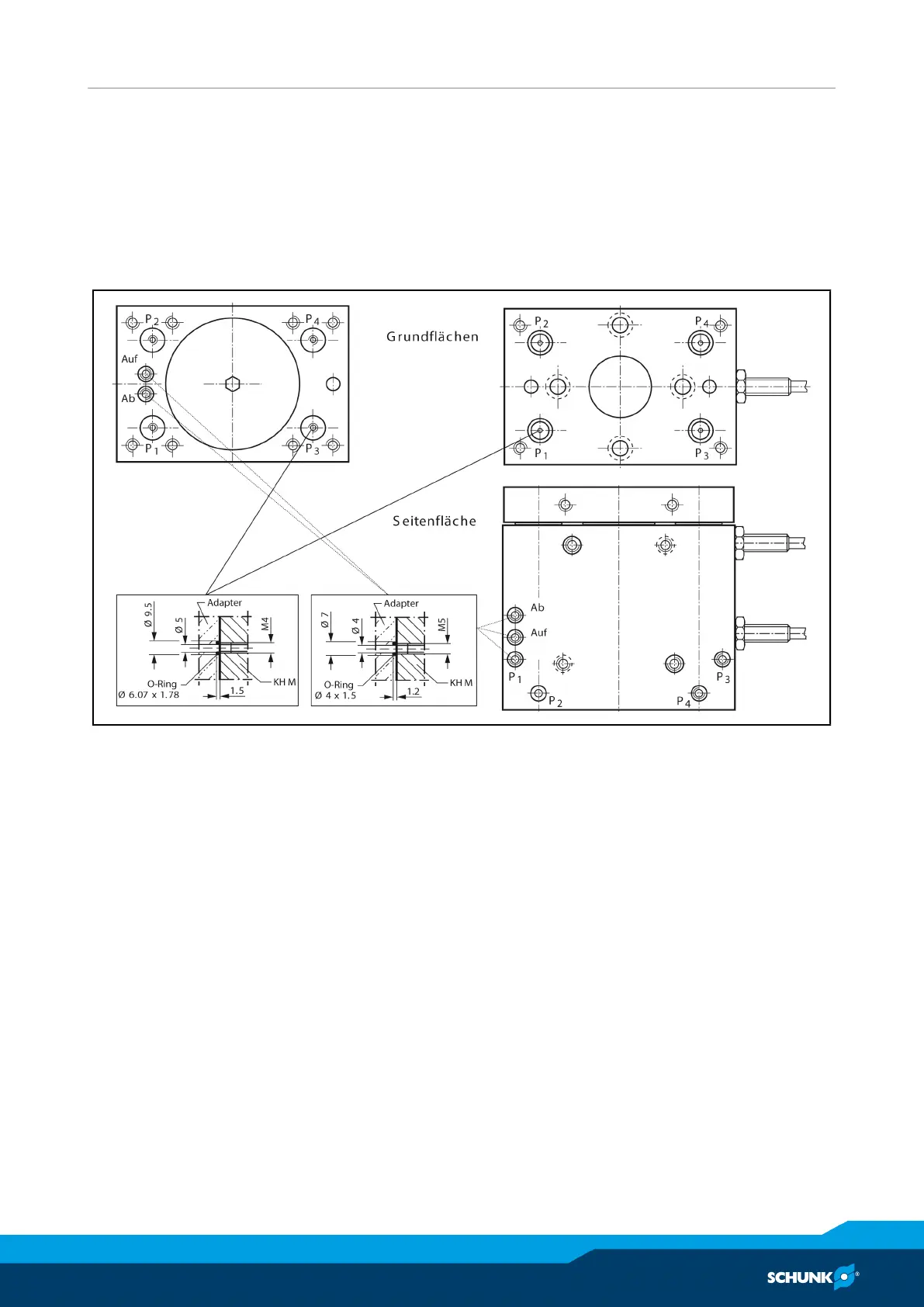

Connections for hose-free direct connection
Seal the unused connections with suitable dummy plugs (M4, M5).
Ø 2 Connections »Up« and »Down«
Ø 4 Connections for further pneumatically actuated tools or
grippers (P1 ... P4).
