Assembly
22
02.00 | KHM | Assembly and Operating Manual | en | 389171

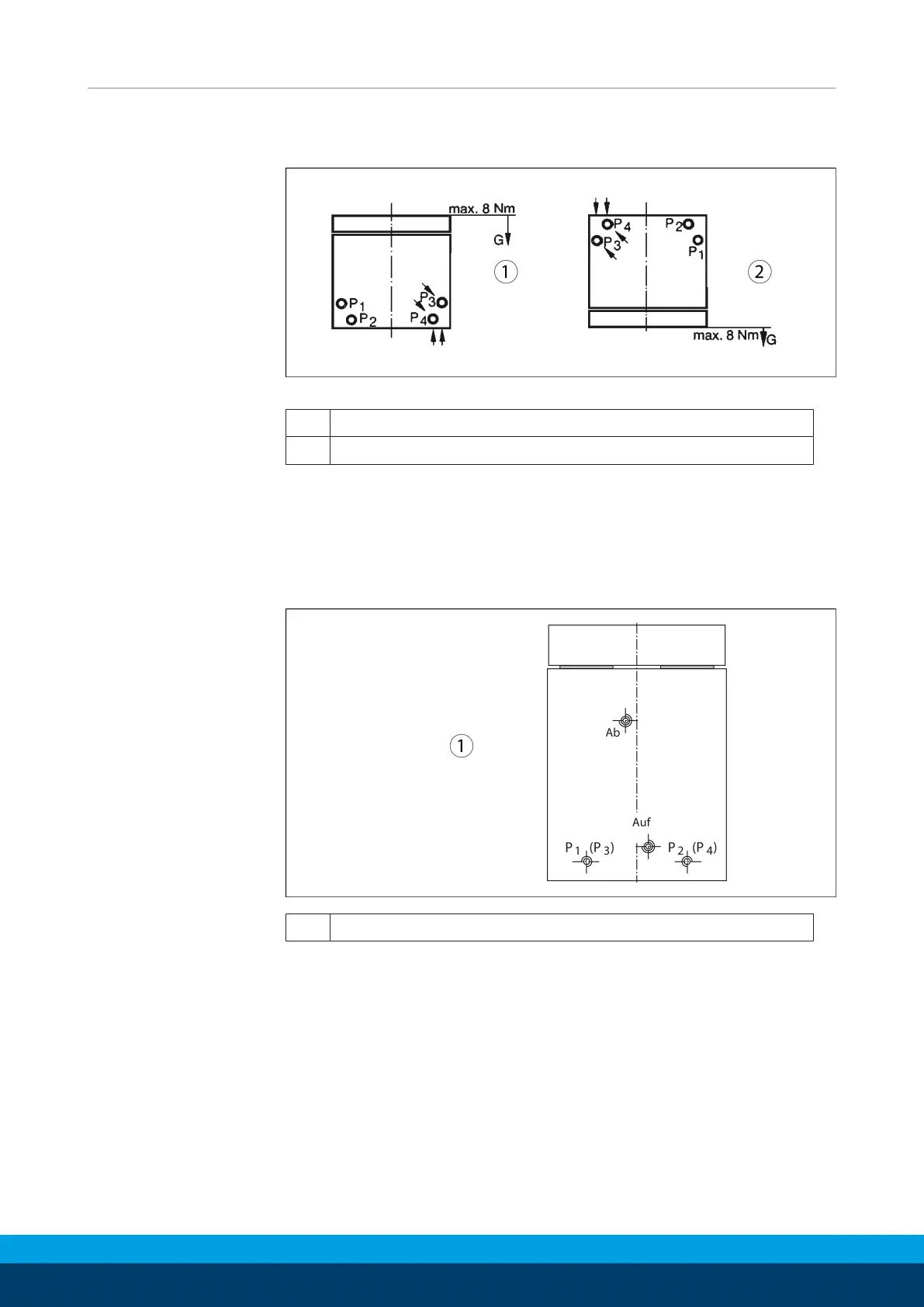

In the event of a radial load on the linear unit and use of 2
internal air feed-throughs
1 Case A For air feed-throughs, please use P
3
+ P
4
.
2 Case B For air feed-throughs, please use P
3
+ P
4
.
Front left for connection with screws
4 connections »Up«, »Down«, P
1
and P
2
(M5).
Front right for connection with screws
2 connections P
3
and P
4
(M5).
1 Front left
